User-defined channel groups

  • In v7.09 channel groups were defined by the recording tool RaceCon. Adding other channels to groups or creating own groups wasn’t supported.
  • Now, a user can create own groups.
  • User-defined groups using the same name like recording-defined groups are merged.

WinDarab supports user-defined channel groups in addition to recording-defined.

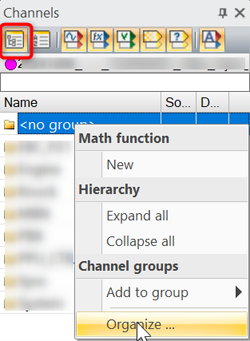

  • If the channels pane is in hierarchical mode the context menu can be used to add channels to channel groups (e.g. math channels, alias channels, …).
  • The current membership of the focus channels is shown in the context menu.
  • An “Organize” menu item is available to create, edit and delete user-defined channel groups.
  • Note:
    • User-defined and recording-defined channel groups are combined,
    • Member channels that are a group member by the recording-defined groups cannot be removed from the channel group.
    • “Organize” dialog doesn’t show the membership of recording-defined groups.
