Control the time gap in linked files between incontinuous members

  • Cutting unnecessary long gaps in data to fixed gaps for better visualization of long time period data



  • If you select multiple files and open them as a linked file, WinDarab links the files together according to their timestamps:
    • If the timestamps of the second file are before those of the first file, WinDarab linked the files together and adjusted the timestamps to have a time gap of 10 seconds between.
    • In all other cases the files were linked together using their timestamps. This could create very large time gaps.

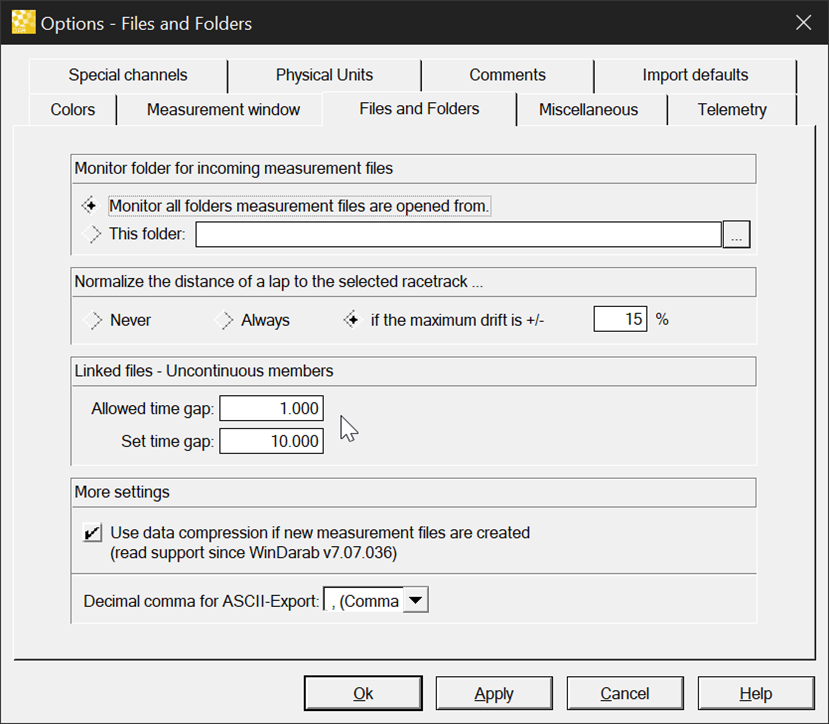

  • Now, we added to new settings to Tools / Settings / Program / “Files and Folders” to control the behavior for linked files:
    • Time gap threshold: If the gap between two files is smaller than the threshold value, the files are linked together without changing the time gap.
      The default value is 1 s.
    • Time gap: If the gap between two files is larger than the threshold, then the gap is set to this value (default: 10 seconds). The time gap is used also, if the timestamps of the second file are before the second file.
