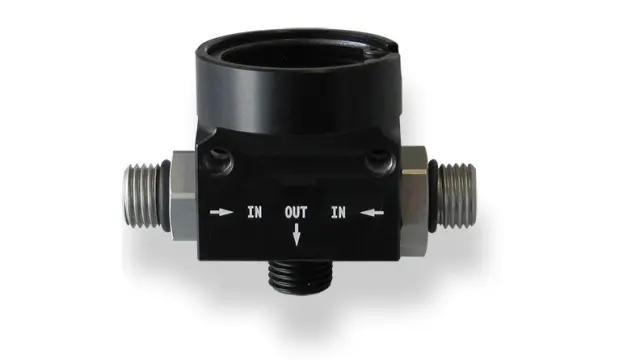

FPR Adaptor light

This adaptor offers the opportunity to convert a rail pressure regulator into an inline pressure regulator. The adaptor is able to hold a production type regulator as well as a motorsport regulator. Delivery without regulator.

Product Highlights

Features

Aluminum housing
Fits to production type regulators and Motorsport regulators (FPR Mini 2, Mini 5, Mini A)
Very light weight

Downloads

Literature

Product Details

Application

Fuel compatibility	Gasoline, E85/M100
Fuel compatibility Operating temperature range	Gasoline, E85/M100 -40 to 120°C
Fuel compatibility Storage temperature range	Gasoline, E85/M100 -40 to 100°C
Fuel compatibility Max. vibration	Gasoline, E85/M100 <600 m/s²at 5 to 250 Hz

Technical Specification

Mechanical Data
Mechanical Data Diameter	50 mm
Mechanical Data Heigth	55 mm
Mechanical Data Weight	92 g
Mechanical Data Mounting	Screw fastening with M6 screws into housing or M5 screws through housing

Connectors and Wires
Connectors and Wires Connector supply	2 x M14 x 1.5
Connectors and Wires Connector reflow	M14 x 1.5

Dimensions

Further Information

Ordering Information

FPR Adaptor light
Order number: F02U.V02.248-01
