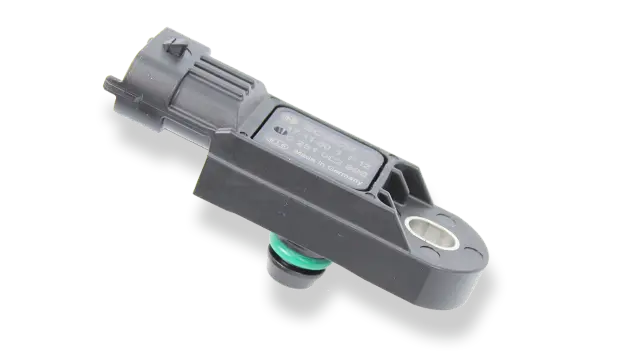

Pressure Sensor Air PS-AS

Pressure Sensor Air PS-AS

This sensor is designed to measure absolute air-pressure, especially the air box pressure of gasoline or Diesel engines.

An integrated circuit combines a piezo-resistive sensor element and an electronic for signal-amplification and temperature compensation. The output of the sensor is an analog, ratio metric signal.

Product Highlights

Features

  • Application: 0.2 to 3.0 bar
  • Response time: 1 ms
  • Pressure reference type: Absolute
  • Power supply: 5 V
  • Weight: 21 g

Downloads

Literature

Product Details

Application
0.2 to 3 bar (a)
Application
Pressure reference type
0.2 to 3 bar (a)
absolute
Application
Max. pressure
0.2 to 3 bar (a)
5 bar
Application
Operating temp. range
0.2 to 3 bar (a)
-40 to 130°C
Application
Media temp. range
0.2 to 3 bar (a)
-40 to 130°C
Application
Storage temp. range
0.2 to 3 bar (a)
0 to 40°C
Application
Max. vibration
0.2 to 3 bar (a)
According to ISO 16750-3

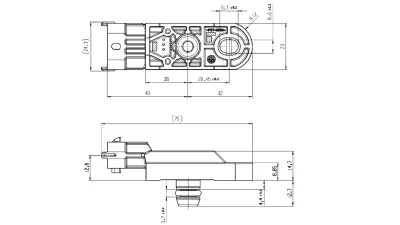

Mechanical Data
Mechanical Data
Mounting
M6
Mechanical Data
Fitting
12.05 ± 0.8 mm
Mechanical Data
Weight w/o wire
21 g
Mechanical Data
Sealing
O-ring 7.59 x 2.62 mm
Electrical Data
Electrical Data
Power supply US
4.75 to 5.25 V
Electrical Data
Max power supply USmax
16 V
Electrical Data
Full scale output UAat 5 V
0.4 to 4.65 V
Electrical Data
Current IS
9 mA
Characteristic
Characteristic
Response time T10/90
1 ms
Characteristic
Compensated range
10 to 85°C
Characteristic
Tolerance (FS) at US= 5 V
± 0.030 bar
Characteristic
Tolerance (FS)
± 1.07 %
Characteristic
Sensitivity
1,518 mV/bar
Characteristic
Offset
96 mV

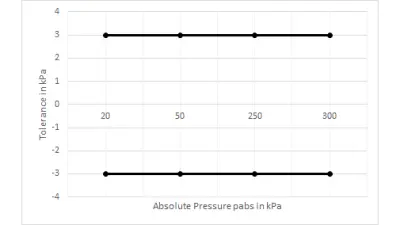

Tolerance

.

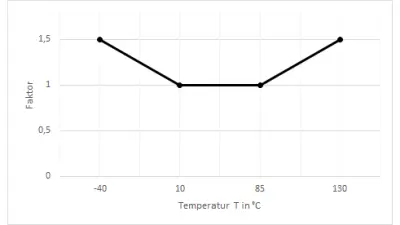

Expansion of Tolerance

.
Connectors and Wires
Connectors and Wires
Connector
RB-COMP 1.1a/3P/Kod.1
Connectors and Wires
Mating connector
D261.205.366-01
Connectors and Wires
Pin 1
US
Connectors and Wires
Pin 2
Gnd
Connectors and Wires
Pin 3
Sig
Connectors and Wires
Various motorsport and automotive connectors are available on request.
.

Further Information

The PS-AS is designed for engines using ROZ95, ROZ98, M15, E22 and Diesel.
The PS-AS is designed for engines using ROZ95, ROZ98, M15, E22 and Diesel.
The sensor can be connected directly to most control units.
The PS-AS is designed for engines using ROZ95, ROZ98, M15, E22 and Diesel.
To avoid noise, an ECU-input circuit with a RC-low pass filter (tau = 2 ms) is recommended.
The PS-AS is designed for engines using ROZ95, ROZ98, M15, E22 and Diesel.
Use engine oil (5W40) as O-Ring grease (no silicone based grease).
The PS-AS is designed for engines using ROZ95, ROZ98, M15, E22 and Diesel.
Avoid miss-pinning (max. 5 minutes at I = 0.3 A).
The PS-AS is designed for engines using ROZ95, ROZ98, M15, E22 and Diesel.
Please find further application hints in the offer drawing and free download of the sensor configuration file (*.sdf) for the Bosch Data Logging System at our homepage.
The PS-AS is designed for engines using ROZ95, ROZ98, M15, E22 and Diesel.

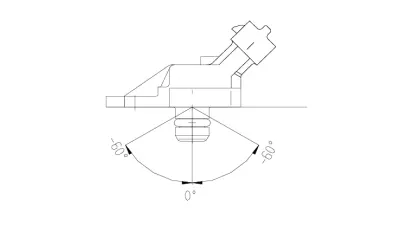

To avoid damage caused by condensate the maximum mounting position from vertical is +-60°.
Pressure Sensor Air PS-AS
Safety Note
Safety Note
The sensor is not intended to be used for safety related applications without appropriate measures for signal validation in the application system.

Pressure Sensor Air PS-AS
Order number: 0281.002.996
