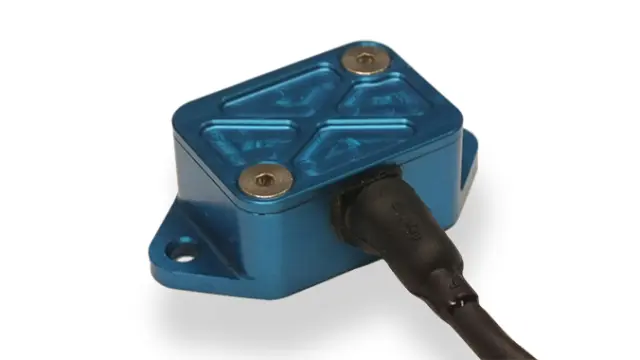

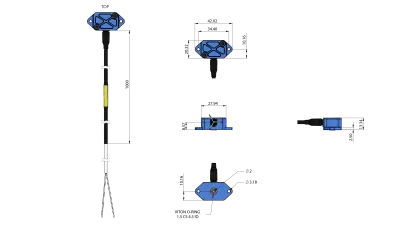

Pressure Sensor Air PSA-N

Pressure Sensor Air PSA-N

This sensor is designed to measure absolute air-pressure, especially the air box pressure of gasoline or Diesel engines.

An integrated circuit combines a piezo-resistive sensor element and electronics for signal-amplification and temperature compensation. The output of the sensor is analog.

Product Highlights

Features

  • Application: 0.1 to 1.15 bar
  • Response time: 0.1 ms
  • Pressure reference type: Absolute
  • Power supply: 11 to 16 V
  • Weight: 21 g

Downloads

Literature

Product Details

Application
0.1 to 1.15 bar
Application
Pressure reference type
0.1 to 1.15 bar
absolute
Application
Max. pressure
0.1 to 1.15 bar
5 bar
Application
Operating temp. range
0.1 to 1.15 bar
-40 to 125°C
Application
Media temp. range
0.1 to 1.15 bar
-40 to 125°C
Application
Storage temp. range
0.1 to 1.15 bar
-40 to 130°C
Application
Max. vibration
0.1 to 1.15 bar
0.19 mm at 100 to 200 Hz
250 m/s2at 200 to 500 Hz
Mechanical Data
Mechanical Data
Mounting
2 x #4-40 screws
Mechanical Data
Fitting
Flat O-ring boss
Mechanical Data
Weight w/o wire
21 g
Mechanical Data
Sealing
O-ring 4.5 x 1.5 mm
Electrical Data
Electrical Data
Power supply US
11 to 16 V
Electrical Data
Full scale output UA
0.5 to 4.7 V
Electrical Data
Typical current IS
9 mA

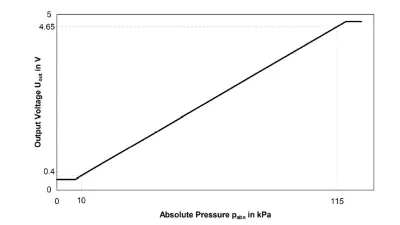

Characteristic
Characteristic
Response time T10/90
1.0 ms
Characteristic
Compensated range
10 to 85°C
Characteristic
Tolerance (FS)
± 0.016 bar
Characteristic
Tolerance (FS)
± 1.52 %
Characteristic
Sensitivity
4,041.62 mV/bar
Characteristic
Offset
-4.16 mV

Tolerance

.

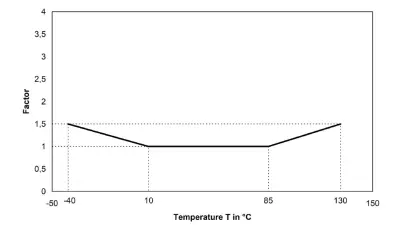

Expansion of Tolerance

.
Connectors and Wires
Connectors and Wires
Connector
ASL606-05PC-HE
Connectors and Wires
Mating connector
ASL006-05SC-HE
F02U.000.228-01
Connectors and Wires
Pin
Function
Wire color
Connectors and Wires
1
US
WHT/ORG
Connectors and Wires
2
Gnd
WHT/BLU
Connectors and Wires
3
Sig
WHT
Connectors and Wires
4
-
Connectors and Wires
5
-
Connectors and Wires
Various motorsport and automotive connectors are available on request.
Connectors and Wires
Sleeve
DR-25
Connectors and Wires
Wire size
AWG 24
Connectors and Wires
Wire length L
64.5 cm
.

Further Information

The PSA-N is designed for engines using ROZ95, ROZ98, M15, E22 and Diesel.
The PSA-N is designed for engines using ROZ95, ROZ98, M15, E22 and Diesel.
The sensor can be connected directly to most control units.
The PSA-N is designed for engines using ROZ95, ROZ98, M15, E22 and Diesel.
To avoid noise, an ECU-input circuit with a RC-low pass filter (tau 0 2 ms) is recommended.
The PSA-N is designed for engines using ROZ95, ROZ98, M15, E22 and Diesel.
Use engine oil (5W40) as O-Ring grease (no silicone based grease).
The PSA-N is designed for engines using ROZ95, ROZ98, M15, E22 and Diesel.
Avoid miss-pinning (max. 5 minutes at I = 0.3 A).
The PSA-N is designed for engines using ROZ95, ROZ98, M15, E22 and Diesel.
Surface finish of the mounting surface should not exceed 0.8 micro meters RMS.
The PSA-N is designed for engines using ROZ95, ROZ98, M15, E22 and Diesel.
Surface flatness tolerance at sensor mount interface must not exceed +/- 0.025 mm after sensor is torqued in place.
The PSA-N is designed for engines using ROZ95, ROZ98, M15, E22 and Diesel.
Please find further application hints in the offer drawing and free download of the sensor configuration file (*.sdf) for the Bosch Data Logging System at our homepage.
Safety Note
Safety Note
The sensor is not intended to be used for safety related applications without appropriate measures for signal validation in the application system.
Fullfilled Legal Standards/Legal Requirements
Fullfilled Legal Standards/Legal Requirements
EMC Requirement
UNECE10

Pressure Sensor Air PSA-N
AS terminated
Order number: F02U.V0U.197-03

Pressure Sensor Air PSA-N
Flying Lead
Order number: F02U.V0U.197-91
