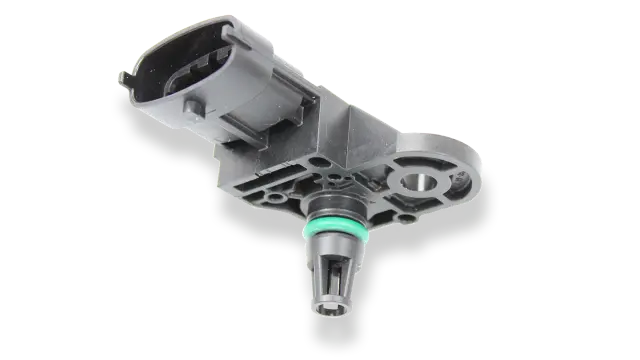

Pressure Sensor Combined PST 4

Pressure Sensor Combined PST 4

This sensor is designed to measure absolute air pressure, especially the air box pressure of gasoline or Diesel engines plus temperature.

An integrated circuit combines a piezo-resistive sensor element and electronic systems for signal-amplification and temperature-compensation. The output of the sensor is an analog, ratio metric signal.

Product Highlights

Features

  • Pressure: 0.4 to 4 bar
  • Temperature: -40 to 130°C
  • Power supply: 5 V
  • Weight: 22 g

Downloads

Literature

Product Details

Application 1
0.4 to 4 bar (a)
Application 1
Application 2
0.4 to 4 bar (a)
-40 to 130°C
Application 1
Reference
0.4 to 4 bar (a)
Absolute
Application 1
Max. pressure
0.4 to 4 bar (a)
6 bar
Application 1
Operating temp. range
0.4 to 4 bar (a)
-40 to 130°C
Application 1
Media temp. range
0.4 to 4 bar (a)
-40 to 130°C
Application 1
Storage temp. range
0.4 to 4 bar (a)
0 to 40°C
Application 1
Max. vibration
0.4 to 4 bar (a)
According to ISO 16750-3
Mechanical Data
Mechanical Data
Mounting
M6 + Washer
Mechanical Data
Weight without wire
22 g
Mechanical Data
Fitting
12.05 ± 0.8 mm
Mechanical Data
Sealing
O-ring 7.59 x 2.62 mm
Electrical Data
Electrical Data
Power supply US
4.75 to 5.25 V
Electrical Data
Max power supply USmax
16 V
Electrical Data
Full scale output UA
0.386 to 4.5 V
Electrical Data
Current IS
12 mA
Characteristic 1
Characteristic 1
Response time T10/90
1 ms
Characteristic 1
Compensated range
10 to 85°C
Characteristic 1
Tolerance (FS) at US= 5 V
0.042 bar
Characteristic 1
Sensitivity
1,143 mV/bar
Characteristic 1
Offset
-71.43 mV
Characteristic 2
Characteristic 2
T [°C]
R [Ohm]
Characteristic 2
-40
45,303
Characteristic 2
-30
26,108
Characteristic 2
-20
15,458
Characteristic 2
-10
9,395
Characteristic 2
0
5,895
Characteristic 2
10
3,791
Characteristic 2
20
2,499
Characteristic 2
25
2,056
Characteristic 2
30
1,706
Characteristic 2
40
1,174
Characteristic 2
50
833.8
Characteristic 2
60
595.4
Characteristic 2
70
435.6
Characteristic 2
80
322.5
Characteristic 2
90
243.1
Characteristic 2
100
186.6
Characteristic 2
110
144.2
Characteristic 2
120
112.7
Characteristic 2
130
89.28

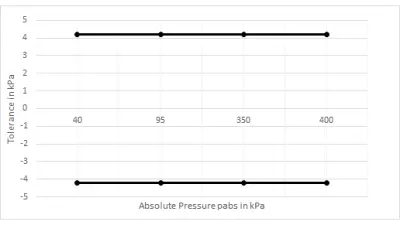

Tolerance

.

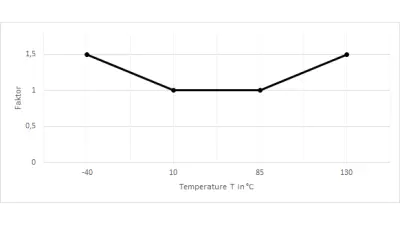

Expansion of Tolerance

.
Connectors and Wires
Connectors and Wires
Connector
Bosch Compact
Connectors and Wires
Mating connector
D261.205.360-01
Connectors and Wires
Pin 1
Ground
Connectors and Wires
Pin 2
Temperature Signal
Connectors and Wires
Pin 3
Power Supply
Connectors and Wires
Pin 4
Pressure Signal
.

Further Information

The PST 4 is designed for engines using ROZ95, ROZ98, M15, E22 and Diesel.
The PST 4 is designed for engines using ROZ95, ROZ98, M15, E22 and Diesel.
The sensor can be connected directly to most control units.
The PST 4 is designed for engines using ROZ95, ROZ98, M15, E22 and Diesel.
To avoid noise, an ECU-input circuit with a RC-low pass filter (tau = 2 ms) is recommended.
The PST 4 is designed for engines using ROZ95, ROZ98, M15, E22 and Diesel.
Use engine oil (5W40) as O-Ring grease (no silicone based grease).
The PST 4 is designed for engines using ROZ95, ROZ98, M15, E22 and Diesel.
Avoid miss-pinning (max. 5 minutes at I = 0.3 A).
The PST 4 is designed for engines using ROZ95, ROZ98, M15, E22 and Diesel.
Please find further application hints in the offer drawing and free download of the sensor configuration file (*.sdf) for the Bosch Data Logging System at our homepage.
The PST 4 is designed for engines using ROZ95, ROZ98, M15, E22 and Diesel.
To avoid damage caused by condensate the maximum mounting position from vertical is +-60°.
.
Safety Note
Safety Note
The sensor is not intended to be used for safety related applications without appropriate measures for signal validation in the application system.

Pressure Sensor Combined PST 4
Order number: 0261.230.423
