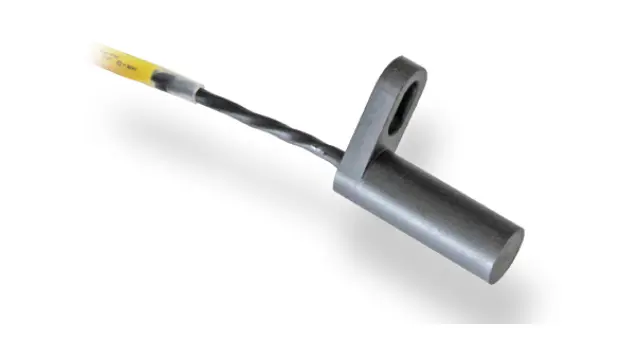

Speed Sensor Hall-Effect HA-M

Speed Sensor Hall-Effect HA-M

This sensor is designed for incremental measurement of rotational speed (e.g. camshaft, crankshaft or wheel speed).

Due to the rotation of a ferromagnetic target wheel in front of the HA-M, the magnetic field is modulated at the place of the Hall probe. A Hall-effect sensor element with integrated signal conditioning circuit detects this change and generates a digital output signal. We offer this sensor with two different types of output: Active high and Active low.

The main feature and benefit of this sensor is the combination of a high quality production part and robust design with metal housing and motorsport connectors.

Product Highlights

Features

  • Max. frequency: ≤ 4.2 kHz
  • Air gap: 0.5 to 1.0 mm
  • Bore diameter: 11.8 mm
  • Max. vibration: 1,200 m/s² at 10 Hz to 2 kHz
  • Weight w/o wire: 12 g

Downloads

Literature

Product Details

Application
Speed
Application
Max. frequency
Speed
≤ 4.2 kHz
Application
Target wheel air gap
Speed
0.5 to 1.5 mm
Application
Temperature range
Speed
- 40 to 160°C
Application
Output circuit
Speed
Open collector for 1 kOhm
Application
Output type
Speed
Please see Ordering Information
Application
External magnetic fields
Speed
< 1 mT
Application
Max. vibration
Speed
1,200 m/s2at 10 Hz to 2 kHz
Variations
Variations
Active low with connector / active high with connector
Variations
Connector
ASU603-03PN-HE
Variations
Mating connector
ASU003-03SN-HE
F02U.000.199-01
Variations
Pin 1
US
Variations
Pin 2
Gnd
Variations
Pin 3
Sig
Variations
Active high, without connector
Variations
Red
US
Variations
Black
Gnd
Variations
Green
Sig
Mechanical Data
Mechanical Data
Weight w/o wire
12 g
Mechanical Data
Mounting
1 x M6
Mechanical Data
Bore diameter
11.8 mm
Mechanical Data
Installation depth L2
30 mm
Mechanical Data
Tightening torque
6 Nm
Electrical Data
Electrical Data
Power supply
5 to 18 V
Electrical Data
Current IS
5.6 to 18 mA
Characteristic
Characteristic
Accuracy repeatability of the falling edge of tooth
< 4 % (≤ 4.2 kHz)
Characteristic
Signal output
0.52 V to < Us
Connectors and Wires
Connectors and Wires
Various motorsport and automotive connectors available on request.
Connectors and Wires
Pin layout
Please see Variations
Connectors and Wires
Sleeve
DR-25
Connectors and Wires
Wire size
AWG 24
Connectors and Wires
Wire length L
10 to 100 cm
Connectors and Wires
Please specify the required wire length with your order.
.

Further Information

The HA-M can be connected directly to most control units and data logging systems.
The HA-M can be connected directly to most control units and data logging systems.
Please avoid abrupt temperature changes.
The HA-M can be connected directly to most control units and data logging systems.
For mounting please use only the integrated plug.
The HA-M can be connected directly to most control units and data logging systems.
If a wheel with different dimensions is used (see Environment), the technical function has to be tested individually.
The HA-M can be connected directly to most control units and data logging systems.
Please ensure that the environmental conditions do not exceed the sensor specifications.
The HA-M can be connected directly to most control units and data logging systems.
Please find further application hints in the offer drawing at our homepage.
Safety Note
Safety Note
The sensor is not intended to be used for safety related applications without appropriate measures for signal validation in the application system.

Speed Sensor Hall Effect HA-M
Active low
Order number: B261.209.283-01

Speed Sensor Hall Effect HA-M
Active high
Order number: B261.209.295-01

Speed Sensor Hall Effect HA-M
Active high, without connector
Order number: F02U.V00.627-01
