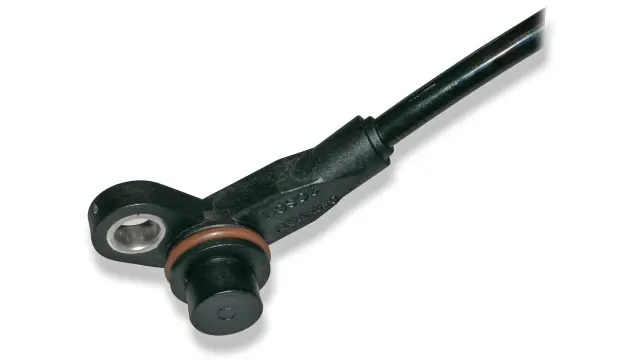

Speed Sensor Hall-Effect Mini-HA-P sealed

Speed Sensor Hall-Effect Mini-HA-P sealed

This sensor is designed for incremental measurement of rotational speed (e.g. camshaft, crankshaft and wheelspeed).

Due to the rotation of a ferromagnetic target wheel in front of the Mini-HA-P sealed, the magnetic field is modulated at the place of the Hall probe. A Hall-effect sensor element with integrated signal conditioning circuit detects this change and generates a digital output signal.

The main feature and benefit of this sensor is the combination of a high quality production part and a robust design with a very small housing.

Product Highlights

Features

  • Max. frequency: ≤ 10 kHz
  • Air gap: 0.2 to 1.5 mm
  • Bore diameter: 16 mm
  • Max. vibration: 1,200 m/s² at 10 Hz to 2 kHz
  • Weight w/o wire: 20 g

Downloads

Literature

Product Details

Application
Speed
Application
Max. frequency
Speed
≤ 10 kHz
Application
Target wheel air gap
Speed
0.2 to 1.5 mm
Application
Temperature range
Speed
-40 to 150°C
Application
Output circuit
Speed
Open collector for 1 kOhm
Application
Output type
Speed
Active low
Application
External magnetic fields
Speed
≤ 0.3 mT
Application
Max. vibration
Speed
1,200 m/s2at 10 Hz to 2 kHz
Variations
Variations
Connector
ASL606-05PC-HE
Variations
Mating connector
ASL006-05SC-HE
F02U.000.228-01
Variations
Pin 1
US
Variations
Pin 2
Gnd
Variations
Pin 3
Sig
Variations
Pin 4
Nc
Variations
Pin 5
Nc
Variations
Wire length L
10 - 27 cm
Variations
Variations
Without connector
Variations
Red
US
Variations
Green
Sig
Variations
Black
Gnd
Variations
Wire length L
27 cm

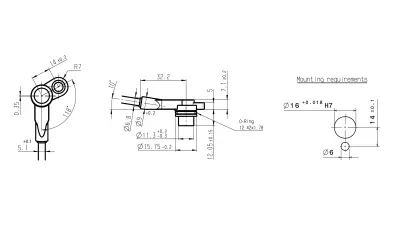

Mechanical Data
Mechanical Data
Weight w/o wire
19.2 g
Mechanical Data
Mounting
With screw 1 x M6
Mechanical Data
Bore diameter
16 mm
Mechanical Data
Installation depth L2
12 mm
Mechanical Data
Tightening torque
8 Nm
Electrical Data
Electrical Data
Power supply
5 to 18 V
Electrical Data
Current IS
10 mA
Characteristic
Characteristic
Accuracy repeatability of the falling edge of tooth
< 3 % (≤6 kHz)
< 5 % (≤10 kHz)
Characteristic
Signal output
0.4 V to < US

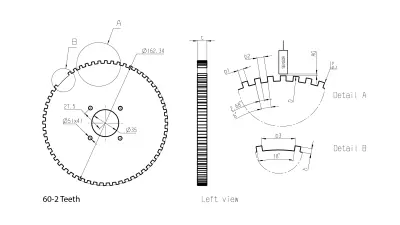

Environment
Environment
Target wheel diameter D
162.34 mm
Environment
Thickness t
12.5 mm
Environment
Width of teeth b1
3.8 mm
Environment
Width of gap b2
4.7 mm
Environment
Width of sync. gap b3
20.79 mm
Environment
Depth of teeth h
3.4 mm
Environment
Number of teeth
60-2
Connectors and Wires
Connectors and Wires
Connector
Please see Variations
Connectors and Wires
Sleeve
HT wire ø 5.2 mm
Connectors and Wires
Wire size
AWG 20
Connectors and Wires
Wire length L
Please see Variations
Connectors and Wires
Various motorsport and automotive connectors are available on request.
Connectors and Wires
Please specify the required wire length with your order.
.
.

Further Information

The Mini-HA-P sealed can be connected directly to most control units and data logging systems.
The Mini-HA-P sealed can be connected directly to most control units and data logging systems.
Please avoid abrupt temperature changes.
The Mini-HA-P sealed can be connected directly to most control units and data logging systems.
For mounting please use only the integrated plug.
The Mini-HA-P sealed can be connected directly to most control units and data logging systems.
If a wheel with different dimensions is used (see Environment), the technical function has to be tested individually.
The Mini-HA-P sealed can be connected directly to most control units and data logging systems.
Please ensure that the environmental conditions do not exceed the sensor specifications.
The Mini-HA-P sealed can be connected directly to most control units and data logging systems.
Please find further application hints in the offer drawing at our homepage.
Safety Note
Safety Note
The sensor is not intended to be used for safety related applications without appropriate measures for signal validation in the application system.

Speed Sensor Hall-Effect Mini HA-P sealed
Connector ASL606-05PC-HE
Order number: F02U.V00.500-01

Speed Sensor Hall-Effect Mini HA-P sealed
Without connector
Order number: F02U.V00.570-01
