Simulation Packages

These simulation packages allow customers that use Bosch Motorsport control systems to simulate the functionality without using the hardware. These packages enable the user to run Bosch Motorsport and customer code area functions within the PTWinSim® environment.

PTWinSim® provides a framework and supporting functionality enabling several applications to execute in a coherent time frame on a variety of hosts.

Applications ranging from Engine Control Unit code to vehicle system models with complex control algorithms are simply adapted for the simulation environment. Furthermore, with WinDarab COM API, Bosch Motorsport customers can use WinDarab datasets as stimuli and logging for their simulated control system.

Device Simulation Runtime provides the runtime licenses to run a Bosch Motorsport simulation package within PTWinSim®. This requires an individual and project specific simulation software, which needs to be ordered separately.

CCA Simulation Package also provides the option for users of CCA to generate their own simulation software. Device Simulation Runtime is included.

Product Highlights

Features

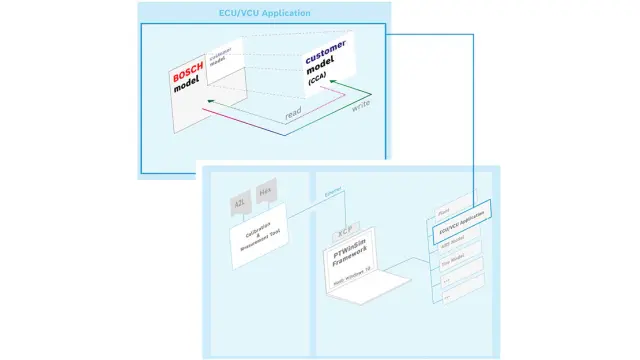

Simulate Bosch model and Customer model together in the same simulation environment
Develop Bosch Motorsport control systems (ECU/VCU) in a simulation environment with other plant models (e.g. tire, ABS)
Enables use of Bosch models (viaPTWinSim) in other simulation environments like rFpro
Execute your control system faster than real-time on a Windows 10 PC
Perform real-time analysis on telemetry streams or other data sources

Downloads

Literature

Data Sheet

Product Details

Technical Specification

Recommended Operation System Windows 10, min. Update Version 1803

Required and not included Software
Required and not included Software MathWorks Requirements		CCA S.P.*	Device S.P.*
Required and not included Software	MATLAB R2018b	x
Required and not included Software	Simulink	x
Required and not included Software	Real-Time Workshop	x
Required and not included Software	Real-Time Workshop Embedded Coder	x
Required and not included Software	Fixed-Point Toolbox	x
Required and not included Software	Simulink Fixed-Point	x
Required and not included Software	Stateflow	x
Required and not included Software	Stateflow Coder	x
Required and not included Software	Vehicle Network Toolbox	x
Required and not included Software	Min. PTWinSim 4.09	x	x
Required and not included Software Compiler
Required and not included Software	Microsoft Visual Studio, Version 2017	x	x
Required and not included Software Application tool
Required and not included Software	RaceCon 2.7 or later	x	x

*S.P.: Simulation Package

Further Information

Ordering Information

CCA Simulation Package
CCA Simulation development target to build and execute customer code.
Including 1 Device Simulation Runtime license and 1 year maintenance.
Order number: F02U.V02.893-01

CCA Simulation Package Annual Maintenance
Order number: F02U.V02.892-01

Device Simulation Runtime
Device Simulation Runtime license to execute simulation on a PC and 1 year maintenance
Order number: Contact Bosch Motorsport

Device Simulation Runtime Annual Maintenance
Order number: Contact Bosch Motorsport
