Ignition Coils

Product Overview

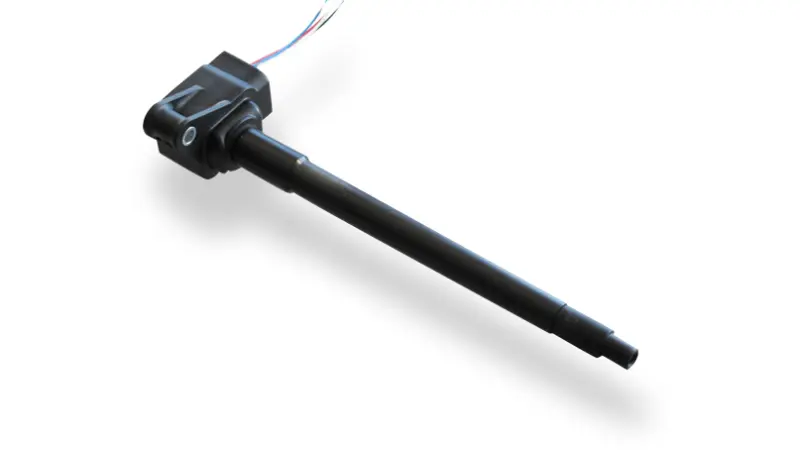

Ignition Coil C90i-E8

Ignition Coil C90i-E8

  • Max. 40 kV
  • Min. 90 mJ
  • Max. 5.0 kV/µs
  • Max. 15,000 1/min
  • Fits to spark plugs with a ceramic diameter of 8 mm

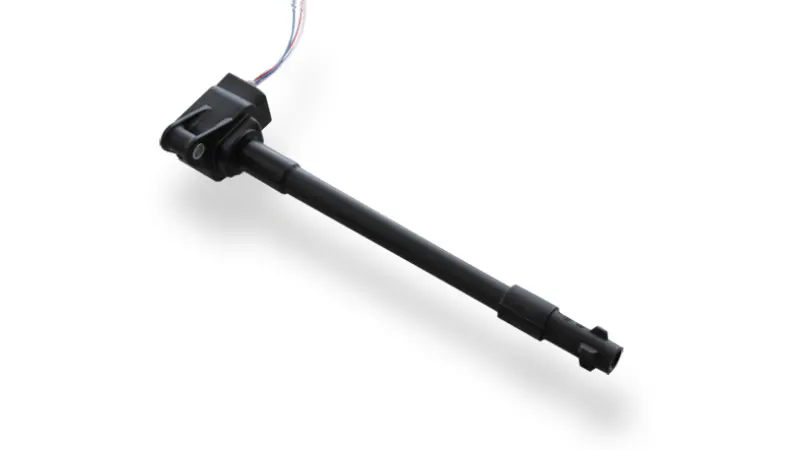

Ignition Coil C90i-E10

Ignition Coil C90i-E10

  • Max. 40 kV
  • Min. 90 mJ
  • Max. 5.0 kV/µs
  • Max. 15,000 1/min
  • Fits to spark plugs with a ceramic diameter of 10 mm

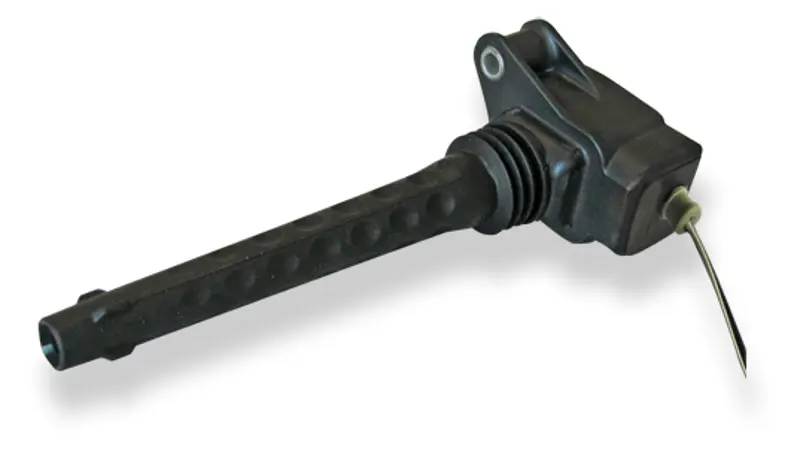

Ignition Coil C90i-pro

Ignition Coil C90i-pro

  • Max. 40 kV
  • Min. 90 mJ
  • Max. 5.0 kV/µs
  • Max. 15,000 1/min
  • Developed for Turbo-GDI engines
Ignition Coil C90i-pro evo

Ignition Coil C90i-pro evo

  • Max. 40 kV
  • Min. 90 mJ
  • Boosted spark current
  • Max. 15,000 1/min
  • Developed for engines with high gas turbulences

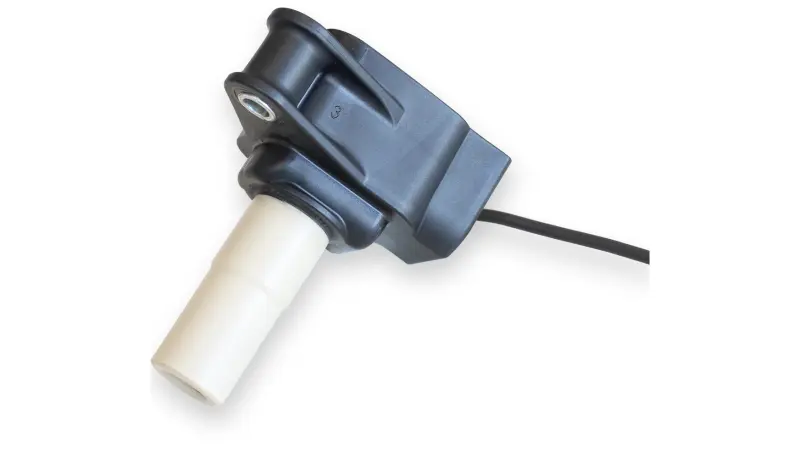

Ignition Coil C90i-WG

Ignition Coil C90i-WG

  • Max. 35 kV
  • Min. 90 mJ
  • Connection for high voltage wire
  • Max. 15,000 1/min
  • Developed for Turbo-GDI engines

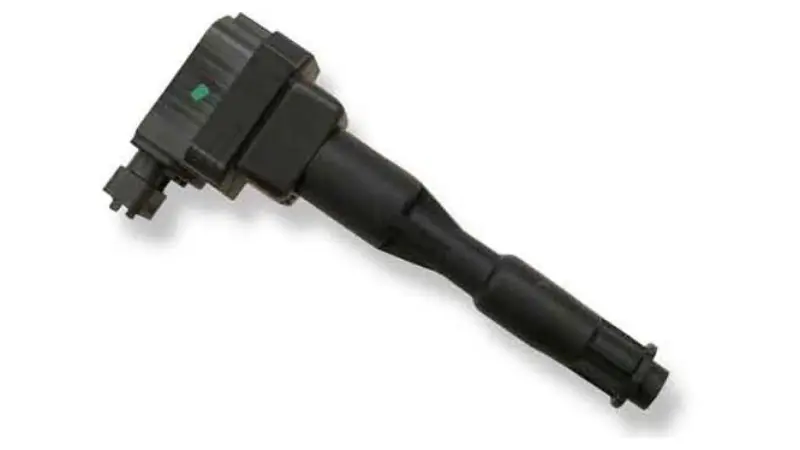

Ignition Coil P50

Ignition Coil P50

  • Max. 35 kV
  • Min. 50 mJ
  • Max. 3.0 kV/µs
  • Max. 10,000 1/min
  • High voltage contacting via high voltage wire and spark plug connector possible
Ignition Coil P50-M

Ignition Coil P50-M

  • Max. 35 kV
  • Min. 50 mJ
  • Max. 3.0 kV/µs
  • Max. 10,000 1/min
  • High voltage contacting via high voltage wire and spark plug connector possible

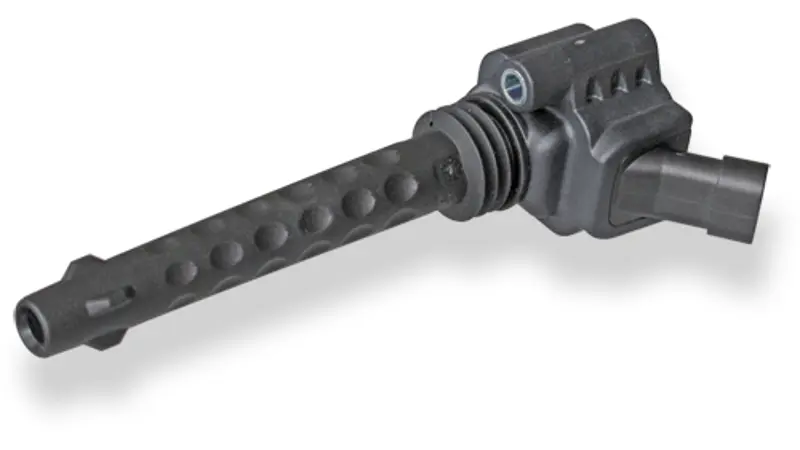

Ignition Coil P65

Ignition Coil P65

  • Max. 35 kV
  • Min. 65 mJ
  • Max. 10,000 1/min
  • Developed for GDI engines

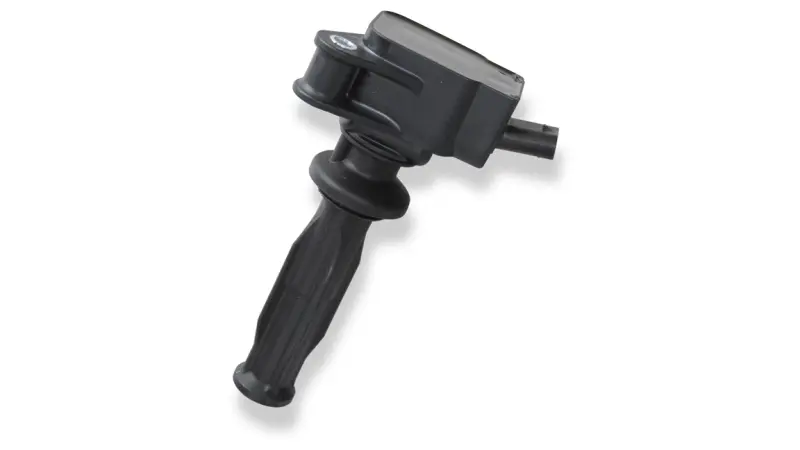

Ignition Coil P65-T

Ignition Coil P65-T

  • Max. 33 kV
  • Min. 65 mJ
  • Max. 10,000 1/min (with reduced dwell time)
  • Developed for GDI engines

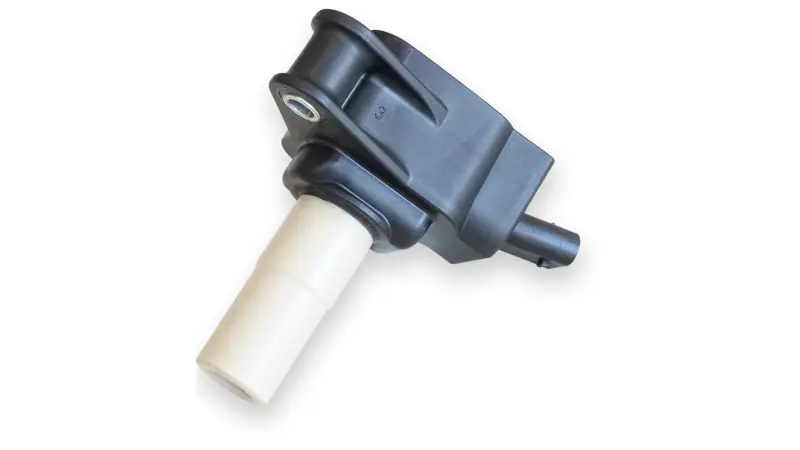

Ignition Coil P65-TWG

Ignition Coil P65-TWG

  • Max. 33 kV
  • Min. 65 mJ
  • Connection for high voltage wire
  • Max. 10,000 1/min (with reduced dwell time)
  • Developed for GDI engines

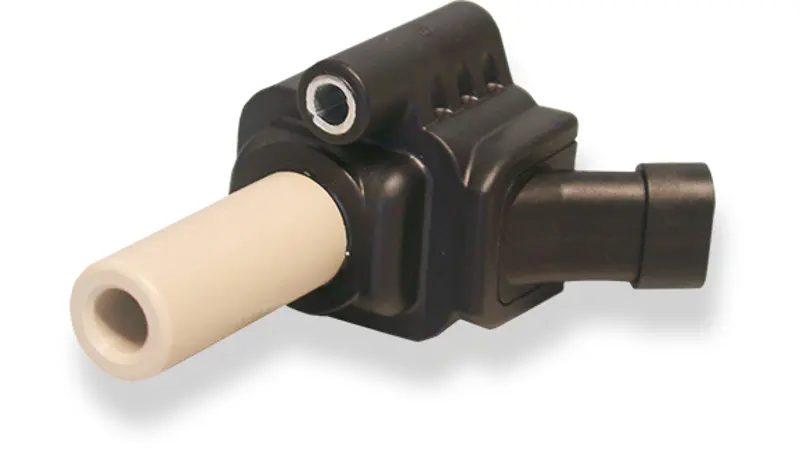

Ignition Coil P65-WG

Ignition Coil P65-WG

  • Max. 35 kV
  • Min. 65 mJ
  • Connection for 30 kV high voltage wire with locking pin (European standard)
  • Max. 10,000 1/min
  • Developed for GDI engines

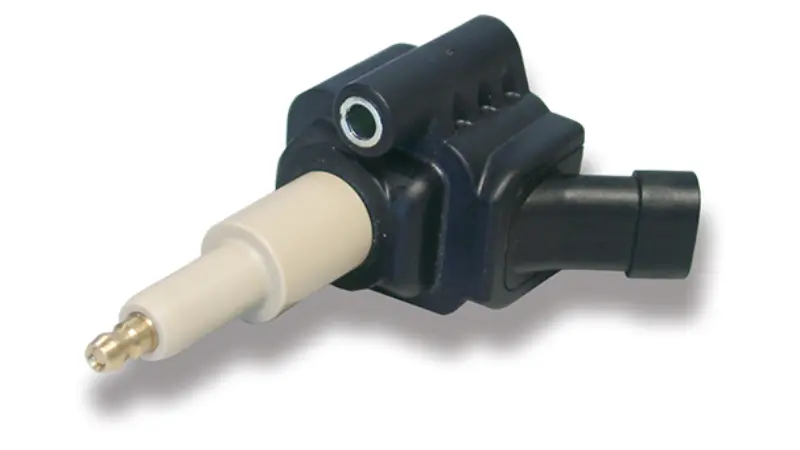

Ignition Coil P65-WS

Ignition Coil P65-WS

  • Max. 35 kV
  • Min. 65 mJ
  • Connection for high voltage wire according to SAE (American standard)
  • Max. 10,000 1/min
  • Developed for GDI engines

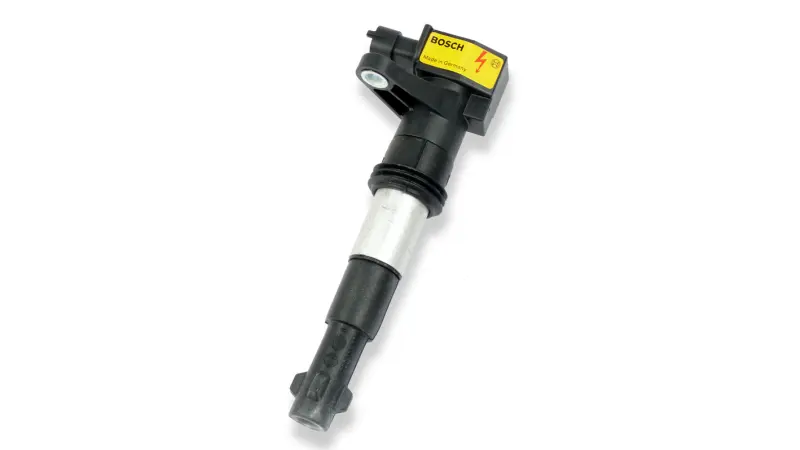

Ignition Coil PS-T

Ignition Coil PS-T

  • Max. 27 kV
  • Min. 42 mJ
  • Max. 1.5 kV/µs
  • Max. 10,000 1/min
