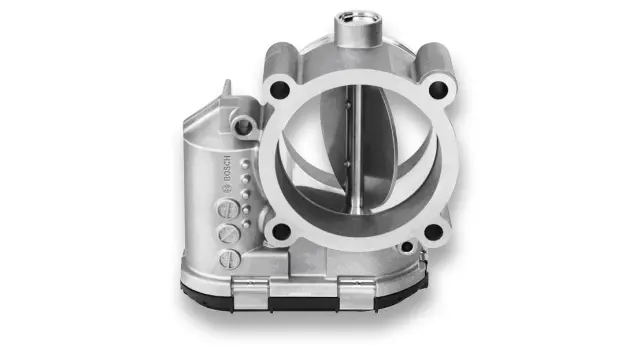

Electronic Throttle Body

Electronic Throttle Body

The throttle body is designed to control the fresh air of spark ignition engines in combination with an electronic throttle control system. ETB applications with flex-fuel, CNG and LPG are permissible if injected in the air flow after the throttle body.

A typical ETC system includes the following components: electronic throttle body, accelerator pedal module and electronic control unit.

You will find the available bore diameters in the “Variations” table on the Data Sheet.

Product Highlights

Features

  • Many bore diameters available
  • Throttle position sensor is redundant
  • For flex-fuel, CNG, LPG
  • Idle default position

Downloads

Literature

Product Details

Temperature range
-40 to 140°C
Temperature range
Permissible vibration excitation
-40 to 140°C
50 Hz a = 50 m/s2
200 Hz a = 250 m/s2
220 Hz a = 250 m/s2
250 Hz a = 150 m/s2
500 Hz a = 150 m/s2
550 Hz a = 100 m/s2
1200 Hz a = 100 m/s2
1250 Hz a = 50 m/s2
2000 Hz a = 50 m/s2
Mechanical Data
Mechanical Data
Available bore diameters
32 mm
Mechanical Data
40 mm
Mechanical Data
44 mm
Mechanical Data
46 mm
Mechanical Data
52 mm
Mechanical Data
54 mm
Mechanical Data
60 mm
Mechanical Data
82 mm
Electrical Data
Electrical Data
Supply voltage
6 to 16 V
Electrical Data
Supply voltage sensor
5 ± 0.2 V
Electrical Data
Max. allowed generator current
<10.0 A
Characteristic
Characteristic
Output signal I
0 to 5 V for 0 to 90°
Characteristic
Output signal II
5 to 0 V for 0 to 90°
Connectors and Wires
Connectors and Wires
Various motorsport and automotive connectors are available on request.
Connectors and Wires
Please specify the required wire length with your order.
.
.
.
* ambient conditions: Air pressure p=1000 mbar, Differential pressure ∆p=600 mbar ±25 mbar, rel. humidity rF=40 %, Air temperature T=24°C ** Opening direction is related to view A. See drawings on bottom of chapter “Dimensions”.

Further Information

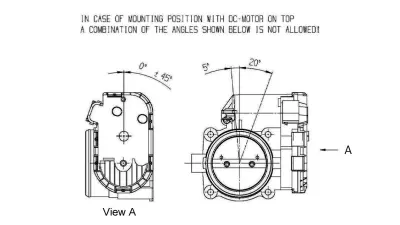

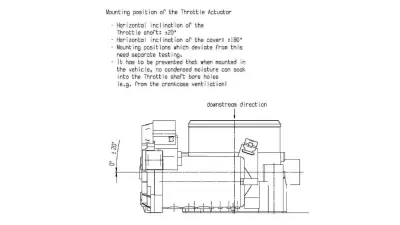

For correct mounting please respect the hints on the next page “Mounting position”.
For correct mounting please respect the hints on the next page “Mounting position”.
The ETB can be connected directly to control units with ETC functionality.
For correct mounting please respect the hints on the next page “Mounting position”.
Please find further application hints in the offer drawing at our homepage.
For correct mounting please respect the hints on the next page “Mounting position”.
Two redundant sensors control the up to date throttle position.
For correct mounting please respect the hints on the next page “Mounting position”.
All ETBs have an idle air position.

Electronic Throttle Body 32 mm
Order number: 0280.750.148

Electronic Throttle Body 40 mm
Order number: 0280.750.149

Electronic Throttle Body 44 mm
Order number: 0280.750.137

Electronic Throttle Body 46 mm
Order number: F02U.V01.171-01

Electronic Throttle Body 52 mm
Order number: F02U.V01.184-02

Electronic Throttle Body 54 mm
Order number: 0280.750.150

Electronic Throttle Body 60 mm
Order number: 0280.750.151

Electronic Throttle Body 82 mm
Order number: 0280.750.101
