ABS M5 Kit Clubsport

ABS M5 Kit Clubsport

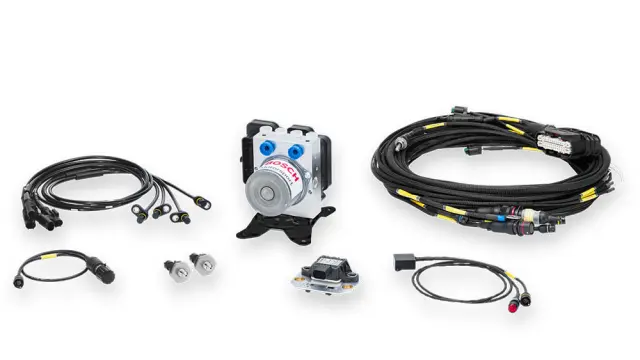

The ABS M5 Kit Clubsport is developed for the operation in front-, rear- or 4-wheel drive vehicles. A generic wiring harness is included in the kit. This enables us to provide the kit with a significantly reduced price in comparison to the standard ABS M5 Kit with individual loom.

The ABS M5 Kit Clubsport is specifically adapted for motorsport use. Individual car parameters like e.g. vehicle weight, vehicle track, wheel weights, wheel circumferences, wheel base or number of increments can be calibrated with software free of charge. Please contact your Bosch Motorsport dealer for further information.

Product Highlights

Features

  • Suitable for front-wheel, rear-wheel and four-wheel drive vehicles
  • Generic wiring harness to fit all engine bay and front foot well locations for the hydraulic module
  • Same ABS hardware as standard ABS M5 Kit

Downloads

Literature


Software

Product Details

Mechanical Data
Mechanical Data
Hydraulic unit
Mechanical Data
Serial housing, dust- and damp-proof
Mechanical Data
Vibration damped circuit board
Mechanical Data
38 pin connector
Mechanical Data
2 hydraulic valves per wheel
Mechanical Data
2 brake circuits (front and rear)
Mechanical Data
2 hydraulic high pressures pumps
Mechanical Data
2 hydraulic accumulators 5 cm3/each
Mechanical Data
Standard fittings
2 x master cylinders M12 x 1
4 x brake cylinders M10 x 1
Mechanical Data
Size
122 x 110 x 122 mm
Mechanical Data
Weight
1,910 g
Mechanical Data
Operating temperature
-30 to 130°C
Mechanical Data
Max. shock
50 g less than 6 ms
Mechanical Data
Max. working speed
360 km/h = 100 m/s = 224 mph
Pressure Medium
Pressure Medium
DOT 4 brake fluid
Pressure Medium
DOT 5.1 brake fluid
Electrical Data
Electrical Data
Supply voltage
10 to 16 V
max. 24 V for 5 min
Electrical Data
Max. peak voltage
35 V for 200 ms
Electrical Data
Power consumption Pump
230 W
Electrical Data
Power consumption Relay
170 W
Electrical Data
Power consumption Electronics
8 W
Inputs
Inputs
4 active wheel speed DF11i, DF11S or DF11V
Inputs
Brake pressure (front brake circuit / rear brake circuit)
Inputs
Longitudinal acceleration, lateral acceleration, yaw rate (MM5.10 sensor)
Inputs
11 adjustment settings
Inputs
ABS function can be deactivated (Pos. 12)
Outputs
Outputs
ABS warning light (MIL)
Outputs
TTL wheel speed signal FL / FR / RL / RR
Content of Kit and Weights
Content of Kit and Weights
Hydraulic unit
1,910 g
Content of Kit and Weights
2 pressure sensors
40 g/each
Content of Kit and Weights
Yaw/acceleration sensor
60 g
Content of Kit and Weights
12 position function switch
50 g
Content of Kit and Weights
4 wheel speed sensors DF11 standard
50 g/each
Content of Kit and Weights
ABS warning light (MIL)
50 g
Content of Kit and Weights
Standard wiring harness
1,540 g
Content of Kit and Weights
Mounting and vibration-damping boards
80 g
Content of Kit and Weights
Mounting board for hydraulic unit
212 g

Further Information

ABS and Yaw rate sensor
CAN1
ABS and Yaw rate sensor
Diagnostics
CAN1
MSA Box II

ABS M5 Kit Clubsport
DF11i, 500 kbaud
Order number: F02U.V05.291-01

ABS M5 Kit Clubsport
DF11i, 1 Mbaud
Order number: F02U.V05.292-01

ABS M5 Kit Clubsport
DF11S, 500 kbaud
Order number: F02U.V05.293-01

ABS M5 Kit Clubsport
DF11S, 1 Mbaud
Order number: F02U.V05.294-01

ABS M5 Kit Clubsport
DF11V, 500 kbaud
Order number: F02U.V05.295-01

ABS M5 Kit Clubsport
DF11V, 1 Mbaud
Order number: F02U.V05.296-01

Com Interface MSA-Box II
Not mandatory if available
Order number: F02U.V00.327-03
