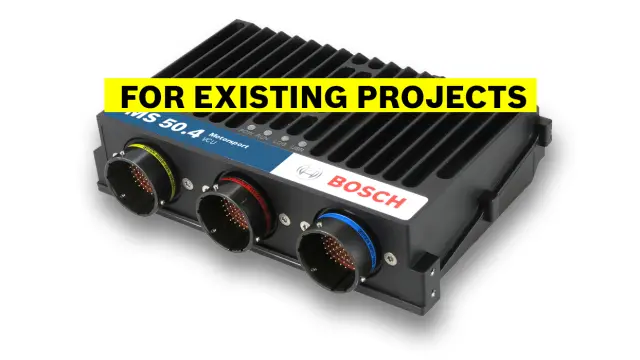

Vehicle Control Unit MS 50.4
Product Highlights
Features
- 667 MHz Dual Core Processor exclusively for vehicle control functionality (MATLAB based)
- Identical, dedicated 667 MHz Dual Core Processor exclusively for logging purposes
- High Speed Logging 200 kHz of 6 analog inputs (optional)
- Event logging, Configurable pre-event logging
Downloads
Product Details
Application
|
Processor for customer code
|
667 MHz Dual Core
|
|
Processor for customer code
Processor for logger
|
667 MHz Dual Core
667 MHz Dual Core
|
|
Processor for customer code
Configurable math channels
|
667 MHz Dual Core
|
|
Processor for customer code
User configurable CAN in/out messages
|
667 MHz Dual Core
|
|
Processor for customer code
Online data compression
|
667 MHz Dual Core
|
|
Processor for customer code
Internal logger
|
667 MHz Dual Core
|
|
Processor for customer code
Logging rates
|
667 MHz Dual Core
|
|
Processor for customer code
LTE Ethernet telemetry support
|
667 MHz Dual Core
|
|
Processor for customer code
RS232 interface for GPS
|
667 MHz Dual Core
|
Technical Specification
|
Mechanical Data
|
|
|
Mechanical Data
Size
|
166 x 121 x 41 mm
|
|
Mechanical Data
Weight
|
≤ 660 g
|
|
Mechanical Data
Protection classification
|
IP67
|
|
Mechanical Data
3 motorsport connectors, 198 pins in total
|
|
|
Mechanical Data
Max. vibration
|
Vibration profile 1 (see Downloads)
|
|
Mechanical Data
Operating temperature internal
|
-20 to 80°C
|
|
Electrical Data
|
|
|
Electrical Data
Supply voltage
|
5 to 18 V
|
|
Inputs
|
|
Inputs
20 Analog channels 0 to 5 V, 0.5 % precision between 0.2 and 4.8 V, switchable pull-up
|
|
Inputs
8 Digital PWM inputs f_max=30 kHz Hall-type speed measurement possible,
Switchable pullup 2.15 kOhm, (required for Hall), Tooth count differential* |
|
Inputs
4 Digital PWM inputs f_max=30 kHz Hall- and DF11 type speed measurement possible,
Fixed pullup 2.15 kOhm (required for Hall), Tooth count differential* |
|
Inputs
4 x universal Thermocouple
|
|
Inputs
1 x Bosch Laptrigger
|
|
Inputs
1 x TimeSync master and slave (specific to Bosch measurement system)
|
|
Inputs
Internal measurements:
1 x ambient pressure 1 x ECU temperature 20 x supply voltage 20 x supply current 1 x battery voltage (external VCU supply) 1 x external VCU supply current 4 x HS output current 1 x 3-axis acceleration plus roll/pitch/yaw rate |
|
Outputs
|
|
Outputs
2* x 7.5 A each, PWM High side, 50 Hz
|
|
Outputs
4* x 2.2 A each, PWM Low side, 10 kHz
|
|
Outputs
*can be enhanced by Upgrade I/O Package
|
|
Sensor Supplies and Screens
|
|
Sensor Supplies and Screens
5* x 12 V, 400 mA each
|
|
Sensor Supplies and Screens
5* x Switchable 5 V/12 V, 400 mA each
|
|
Sensor Supplies and Screens
4 A max overall current on all 12 V
2 A max overall current on all 5 V |
|
Sensor Supplies and Screens
12 V ± 1 % precision on the pin
5 V ± 0.1 % precision on the pin |
|
Sensor Supplies and Screens
20 x Sensor ground
|
|
Sensor Supplies and Screens
*can be enhanced by Upgrade I/O Package
|
|
Adaptation and Documentation
|
|
|
Adaptation and Documentation
Function documentation
|
Automatically created during code generation
|
|
Adaptation and Documentation
MatLab code generation
|
Support for customer own MatLab function development
|
|
Software Tools (free download)
|
|
|
Software Tools (free download)
Data Analysis tool WinDarab 7
|
|
|
Software Tools (free download)
System Configuration tool RaceCon
|
Logger configuration, calibration, and online measurement
|
|
Connectors
|
|
|
Connectors
Connector LIFE (red) AS018-35PN
|
Mating connector AS618-35SN (not included)
|
|
Connectors
Connector SENS-A (yellow) AS018-35PA
|
Mating connector AS618-35SA (not included)
|
|
Connectors
Connector SENS-B (blue) AS018-35PB
|
Mating connector AS618-35SB (not included)
|
Dimensions
Further Information
Communication
|
3 Ethernet 100 Mbit
|
|
|
3 Ethernet 100 Mbit
4 CAN (+4 with Upgrade I/O Package)
|
|
|
3 Ethernet 100 Mbit
1 LIN
|
|
|
3 Ethernet 100 Mbit
1 USB
|
|
|
3 Ethernet 100 Mbit
1 RS232 interface for GPS or Telemetry, switchable depending on SW version
|
|
|
3 Ethernet 100 Mbit
1 Time sync synchronization Ethernet
|
|
Installation Notes
|
Maintenance Interval: 220 h or a maximum of two years
|
|
Maintenance Interval: 220 h or a maximum of two years
Please remember that the mating connectors and the programming interface MSA-Box II are not included and must be ordered separately.
|
Ordering Information
Vehicle Control Unit MS 50.4
Order number: F02U.V02.965-02
Vehicle Control Unit MS 50.4 incl. CCA Hardware Upgrade
Order number: F02U.V03.012-01
Rugged USB flash drive
Order number: F02U.V03.534-01
Connector for USB flash drive on car loom side
Order number: F02U.002.996-01
Adapter cable to PC USB-Port
Order number: F02U.V01.343-01
Breakout Box BOB 66-pole
Connector code: blue
Order number: F02U.V02.295-01
Breakout Box BOB 66-pole
Connector code: yellow
Order number: F02U.V02.298-01
Breakout Box BOB MS 7
Connector code: red
Order number: F02U.V02.293-01
Software Options
CCA Hardware Upgrade per device
Order number: F02U.V02.137-01
Multi CCA Hardware Upgrade VCU per device
Order number: F02U.V03.222-01
I/0 Package
Order number: F02U.V02.777-01
High Speed Logging Package
Order number: F02U.V02.779-01
CCP/XCP_MASTER
Order number: F02U.V02.213-01
Accessories
Opening tool for shellsize 18
Order number: F02U.V01.394-01
Upgrades
CCA Hardware Upgrade per device
|
Provides the option to run customer developed software code on Bosch device
|
Multi CCA Hardware Upgrade per device
|
Enables the use of an extra core to utilize more computing power in the device
|
I/O Package
|
Communication
|
|
|
Communication
4 CAN
|
|
|
Communication
Inputs
|
|
|
Communication
4 Analog channels
0 to 5 V, 0.5 % precision between 0.2 and 4.8 V, switchable pull-up |
|
|
Communication
4 Digital PWM inputs
f_max=30 kHz Hall-type speed measurement possible, Fixed pullup 2.15 kOhm (required for Hall), Tooth count differential** |
|
|
Communication
4 LVDT, 5 pin configuration,
excitation frequency 1 to 20 kHz, excitation voltage 0 to 5 V (rms) |
|
|
Communication
Outputs
|
|
|
Communication
4 “TTL” Digital output, 10 kHz, PWM, 25 mA each
|
|
|
Communication
2 PWM High side; 7.5 A each, PWM, 50 Hz
|
|
|
Communication
4 PWM Low side; 2.2 A each, PWM, 10 kHz
|
|
|
Communication
Power Supplies
|
|
|
Communication
5 x12 V, 400 mA each
|
|
|
Communication
5 switchable 5 V/12 V, 400 mA each
|
|
|
Communication
** The tooth count differential between any two of the PWM inputs is available to measure e.g., shaft torsion.
|
|
High Speed Logging Package
|
6 ANA
|
0 to 5 V, 200 kHz logging rate
|
CCP/XCP_MASTER
|
Enables CCP/XCP master functionality to request data from foreign devices via CAN/CCP protocol, XCP over Ethernet (UDP) or XCP via CAN.
(ASAP2 file from ECU manufacturer required) |
