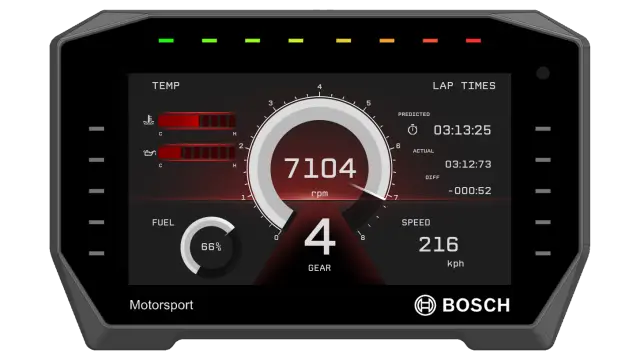

Display DDU 11

Display DDU 11

The display DDU 11 integrates a programmable full colour dashboard display with a data logging system for motorsport applications. Additional input devices can be connected via Ethernet, CAN buses, and RS 232.

A basic logging function of 100 channels with recording rate of 20 Hz (50 ms) (4 GB) is always included. The logger can be upgraded to full logging performance (max. 1 kHz (1 ms)). In addition, a 2nd logging partition of 4 GB can be activated. An optional external GPS Sensor keeps track of position on the racetrack.

With the DDU 11, a library of graphical elements for the individual design of display pages and a state-of-the-art user interface menu is available. For quick data transfer from the car, e.g., during pit stop, data logging to a USB stick is available as an option.

Product Highlights

Features

  • Features user interface menu
  • Features display element design generator
  • 8 top-LEDs and 5 side-LEDs on both sides
  • Supports GPS laptrigger, pre-dated lap time etc.
  • Page change based on events possible

Downloads

Literature


Software

Product Details

Display
6.5” graphic color display
48 user configurable pages (12 pages organized in 4 switchable page sets)
Display
6.5” graphic color display
48 user configurable pages (12 pages organized in 4 switchable page sets)
Resolution
800 x 480 pixel
Display
6.5” graphic color display
48 user configurable pages (12 pages organized in 4 switchable page sets)
Supported image file formats
PNG, BMP, JPG, GIF
Display
6.5” graphic color display
48 user configurable pages (12 pages organized in 4 switchable page sets)
Processor
667 MHz Dual Core
Display
6.5” graphic color display
48 user configurable pages (12 pages organized in 4 switchable page sets)
AD-Converters
10 kHz sampling rate with digital downsampling filter
Display
6.5” graphic color display
48 user configurable pages (12 pages organized in 4 switchable page sets)
Real time clock supply
Ultracap™, sustains realtime for 2 weeks
Display
6.5” graphic color display
48 user configurable pages (12 pages organized in 4 switchable page sets)
Configurable math channels
Display
6.5” graphic color display
48 user configurable pages (12 pages organized in 4 switchable page sets)
User configurable CAN in/out messages
Up to 256 IDs (128 in and out)
Display
6.5” graphic color display
48 user configurable pages (12 pages organized in 4 switchable page sets)
Sampling rate
20 Hz (50 ms) standard,
max. 1 kHz (1 ms) as optional upgrade (FULL_LOG_1/FULL_LOG_2)
Display
6.5” graphic color display
48 user configurable pages (12 pages organized in 4 switchable page sets)
Online data compression
Display
6.5” graphic color display
48 user configurable pages (12 pages organized in 4 switchable page sets)
Internal logger
  • 4 GB memory on Partition 1 enabled
  • 100 channels enabled
  • 50 ms Sampling rate enabled
  • FULL_LOG_1 (1,500 channels/1 kHz sampling rate on Partition 1) optional
  • FULL_LOG_2 (4 GB memory on Partition 2) optional
Display
6.5” graphic color display
48 user configurable pages (12 pages organized in 4 switchable page sets)
Logging rates
  • Usage of all features: 600 kB/s
  • Primary logging use case: >800 kB/s
  • Logging data download rate: up to 6.2 MB/s
Display
6.5” graphic color display
48 user configurable pages (12 pages organized in 4 switchable page sets)
Ambient light sensor
Mechanical Data
Mechanical Data
Size
203 x 128 x 38.5 mm
Mechanical Data
Weight
649 g
Mechanical Data
Protection classification
IP67
Mechanical Data
Operating temperature internal
-20 to 85°C
Mechanical Data
Max. vibration
Vibration profile 1 (see Downloads or bosch-motorsport.com)
Electrical Data
Electrical Data
Supply voltage
6 to 18 V
Electrical Data
Current consumption (w/o sensor supply)
<2 A (at 12 V)
Inputs (option)
Inputs (option)
4 x analog In (5 V/12 bit), Digital In, Wheelspeed HALL, or Wheelspeed DF11
Inputs (option)
1 x analog In (5 V/12 bit), Digital In or Laptrigger In
Inputs (option)
Switchable 3.01 kOhm pull-up resistors for all analog inputs
Sensor Supplies and Screens
Sensor Supplies and Screens
1 x Sensor supply 5 V +/- 1 % or UBAT switched (max. 250 mA)
Sensor Supplies and Screens
1 x Sensor ground
Connectors and Wires
Connectors and Wires
Mating Connector: TE Connectivity 3-1437290-7
Connectors and Wires
Connector Pins: TE Connectivity 3-1447221-4
Pin Configuration
Pin Configuration
Pin Configuration
Pin
Name
Status
Pin Configuration
1
KL30_KL15/UBAT
Incl.
Pin Configuration
2
SENSGND
Incl.
Pin Configuration
3
SENSPWR (5 V or UBAT switched)
Incl.
Pin Configuration
4
SIG2_IN (Analog In, Digital In, Wheelspeed HALL, Wheelspeed DF11, switchable Pull-Up 3.01 k)
Opt. 1*
Pin Configuration
5
SIG4_IN (Analog In, Digital In, Wheelspeed HALL, Wheelspeed DF11, switchable Pull-Up 3.01 k)
Opt. 1*
Pin Configuration
6
USB_GND
Opt. 2*
Pin Configuration
7
USB_PWR
Opt. 2*
Pin Configuration
8
KL31/GND
Incl.
Pin Configuration
9
SIG5_IN_LAPTRG (Analog In, Digital In, switchable Pull-Up 3.01 k)
Opt. 1*
Pin Configuration
10
SIG1_IN (Analog In, Digital In, Wheelspeed HALL, Wheelspeed DF11, switchable Pull-Up 3.01 k)
Opt. 1*
Pin Configuration
11
SIG3_IN (Analog In, Digital In, Wheelspeed HALL, Wheelspeed DF11, switchable Pull-Up 3.01 k)
Opt. 1*
Pin Configuration
12
USB_DN
Opt. 2*
Pin Configuration
13
USB_DP
Opt. 2*
Pin Configuration
14
CAN_2_H_RS232_TX (switchable CAN or RS232)
Opt. 1*
Pin Configuration
15
CAN_1_H
Incl.
Pin Configuration
16
ETH_CHANNEL0_TXN (Ethernet 100BaseTX)
Incl.
Pin Configuration
17
ETH_CHANNEL0_TXP
Incl.
Pin Configuration
18
ETH_CHANNEL0_RXN
Incl.
Pin Configuration
19
ETH_CHANNEL0_RXP
Incl.
Pin Configuration
20
TIMESTMP_INOUT (Timesync)
Incl.
Pin Configuration
21
CAN_2_L_RS232_RX (switchable CAN or RS232)
Opt. 1*
Pin Configuration
22
CAN_1_L
Incl.
Pin Configuration
23
ETH_CHANNEL1_TXN (Ethernet 100BaseTX)
Incl.
Pin Configuration
24
ETH_CHANNEL1_TXP
Incl.
Pin Configuration
25
ETH_CHANNEL1_RXN
Incl.
Pin Configuration
26
ETH_CHANNEL1_RXP
Incl.

Opt. 1*: Requires Software Upgrade IO_EXTENS

Opt. 2*: Requires Software Upgrade DATA_USB

.
.

Further Information

CAN interfaces
1
CAN interfaces
2ndCAN interface or RS232 with IO_EXTENS
1
e.g., Telemetry or GPS
CAN interfaces
Ethernet 100BaseTX
1
2
CAN interfaces
Laptrigger input
1
1
CAN interfaces
Configuration via RaceCon
1
Over Ethernet or MSA-Box II
CAN interfaces
CCP-Master, data acquisition from ECU that support CAN Calibration Protocol (CCP_MASTER option)
1
CAN interfaces
XCP-Master, data acquisition from ECU that support eXtended Calibration Protocol over UDP or CAN (CCP_MASTER option)
1
Inspection services recommended after 220 h or 2 years, no components to replace.
Inspection services recommended after 220 h or 2 years, no components to replace.
This product may contain open source software. Information about license terms and other obligations is given in the manual.

Display DDU 11
Order number: F02U.V03.208-03

Rugged USB flash drive
Order number: F02U.V03.534-01

Connector for USB flash drive on car loom side
Order number: F02U.002.996-01

Adapter cable to PC USB-Port
Order number: F02U.V01.343-01

Software Options

CCP/XCP_MASTER
Order number: F02U.V02.213-01

FULL_LOG_1
Order number: F02U.V02.304-01

FULL_LOG_2
Order number: F02U.V02.305-01

IO_EXTENS
Order number: F02U.V02.205-01

DATA_USB
Order number: F02U.V03.476-01

Accessories

Mating Connector Kit AMP Superseal
Order number: F02U.B01.201-01

CCP/XCP_MASTER
CCP/XCP_MASTER
Enables CCP/XCP master functionality to request data from foreign devices via CAN/CCP protocol, XCP over Ethernet (UDP) or XCP via CAN.
(ASAP2 file from ECU manufacturer required)
FULL_LOG_1
FULL_LOG_1
1,500 channels/1 kHz sampling rate on Partition 1
FULL_LOG_2
FULL_LOG_2
4 GB memory on Partition 2
IO_EXTENS
IO_EXTENS
4 x Analog In (5 V/12 bit), Digital In, Wheelspeed HALL or Wheelspeed DF11
1 x Analog In (5 V/12 bit), Digital In or Laptrigger In
Switchable 3.01 kOhm pull-up resistors for all analog inputs
1 x CAN or RS232 (switchable via RaceCon)
DATA_USB
DATA_USB
Data copy to USB flash drive
ABSDIAG
ABSDIAG
Upgrade Onboard Diagnostic Package ABS M5
  • Enables functionality like error memory read and erase, and repair bleed from UIM menu in display
External switch for page selection, 12 steps
B261.209.658-01
External switch for brightness adjustment or page selection, 6 steps
B261.209.659-01
