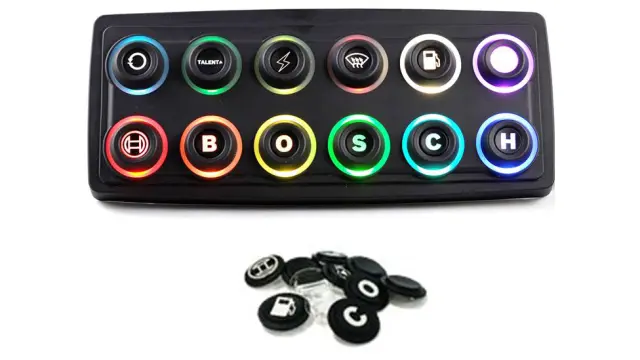

CAN Keypad CK-M12

The CAN Keypad CK-M12 allows for simplification of the dashboard by offering 12 buttons and 9 additional wired inputs to be evaluated and transmitted via CAN bus to other devices on the bus. Each button has an individually addressable LED indicating ring that can be used to acknowledge a button press event, indicate status of a device, or alert the driver to a fault condition. No special configuration software is needed, all feedback logic is done by PBX, DDU or ECU. Each keypad is supplied with 15 black inserts, optional insert kits are also available.

Product Highlights

Features

12 standard buttons with color indicator rings
9 additional digital switch inputs
Moveable button inserts
CAN input / output

Downloads

Literature

Software

CK_M12_BASE_SW

Product Details

Application

Usage	PBX / DDU / ECU Interface
Usage Temperature range	PBX / DDU / ECU Interface -40 to 85°C

Technical Specification

Mechanical Data
Mechanical Data Size	78 x 187 x 21 mm
Mechanical Data Weight	280 g
Mechanical Data Max. vibration	11 ms 30 G peak
Mechanical Data Protection Classification	IP68

Electrical Data
Electrical Data Power supply Vs	9 to 32 V
Electrical Data Average current draw	100 mA
Electrical Data Max current draw	250 mA

Characteristics
Characteristics Signal output	CAN
Characteristics CAN transmit rate	100 Hz*
Characteristics CAN baud rate	1 Mbaud*
Characteristics TX ID	0x800*
Characteristics RX ID	0x801*
Characteristics TX Data	1 bit status for each input
Characteristics RX Data	4 bit integer for each indicator color, 4 bit integer for brightness
Characteristics * Custom CAN IDs / baud Rate Optional Upon Request
Characteristics Note: CK-M12 DBC file available for CAN configuration

Connectors and Wires
Connectors and Wires CK-M12 Termination	Flying Lead 24AWG

Recommended Connectors
Recommended Connectors CK-M12	AS610-35PN
Recommended Connectors Mating	AS110-35SN

Wire Identification
Wire Identification Wire	Function
Wire Identification Red	12/24 V Power
Wire Identification Black	Ground
Wire Identification Yellow	CAN high (CANH)
Wire Identification Green	CAN low (CANL)
Wire Identification White, Black Trace	Digital Input 1 activated by Ground
Wire Identification White, Brown Trace	Digital Input 2 activated by Ground
Wire Identification White, Red Trace	Digital Input 3 activated by Ground
Wire Identification White, Orange Trace	Digital Input 4 activated by Ground
Wire Identification White, Yellow Trace	Digital Input 5 activated by Ground
Wire Identification White, Green Trace	Digital Input 6 activated by Ground
Wire Identification White, Blue Trace	Digital Input 7 activated by Ground
Wire Identification White, Purple Trace	Digital Input 8 activated by Ground
Wire Identification White, Grey Trace	Digital Input 9 activated by Ground

Insert Kits
Insert Kits Insert Road Race Kit
Insert Kits	A/C
Insert Kits	ABS
Insert Kits	Alarm Reset
Insert Kits	Anti-Lag
Insert Kits	Arrow x 4
Insert Kits	Brake Spray
Insert Kits	Boost Decrease
Insert Kits	Boost Increase
Insert Kits	Brightness Down
Insert Kits	Brightness Up
Insert Kits	Close Menu
Insert Kits	Cool Suit
Insert Kits	Cooling Fan
Insert Kits	Day/Night Mode
Insert Kits	Drink
Insert Kits	Flash Hi Beam
Insert Kits	Fuel Reserve
Insert Kits	Fuel Reset
Insert Kits	Full Course Yellow
Insert Kits	Function Toggle
Insert Kits	Gearbox Emergency
Insert Kits	Hazard Flasher
Insert Kits	Heated Windshield
Insert Kits	Helmet Fan
Insert Kits	High Beam
Insert Kits	Horn
Insert Kits	Launch
Insert Kits	Low Beam
Insert Kits	Map Down
Insert Kits	Map Up
Insert Kits	Neutral
Insert Kits	Open Menu
Insert Kits	Page Down
Insert Kits	Page Up
Insert Kits	PDU Reset
Insert Kits	Pit Switch
Insert Kits	Power
Insert Kits	Power Steering Reset
Insert Kits	Pump Out
Insert Kits	Push to Pass
Insert Kits	Radiator Spray
Insert Kits	Rain Light
Insert Kits	Reset
Insert Kits	Reverse
Insert Kits	Select
Insert Kits	Starter
Insert Kits	Traction Control Down
Insert Kits	Traction Control Up
Insert Kits	Wet Mode
Insert Kits	Windshield Spray
Insert Kits	Windshield Wiper
Insert Kits Insert Drag Race Kit
Insert Kits		A/C
Insert Kits		Alarm Reset
Insert Kits		Anti-Lag
Insert Kits		Arrow x 4
Insert Kits		Boost Decrease
Insert Kits		Boost Increase
Insert Kits		Brightness Down
Insert Kits		Brightness Up
Insert Kits		Burnout
Insert Kits		Close Menu
Insert Kits		Cooling Fan
Insert Kits		Day/Night Mode
Insert Kits		Function Toggle
Insert Kits		Hazard Flasher
Insert Kits		High Beam
Insert Kits		Horn
Insert Kits		Launch
Insert Kits		Line Lock
Insert Kits		Low Beam
Insert Kits		Map Down
Insert Kits		Map Up
Insert Kits		Nitrous Arm
Insert Kits		Nitrous Purge
Insert Kits		Open Menu
Insert Kits		Page Down
Insert Kits		Page Up
Insert Kits		PDU Reset
Insert Kits		Power
Insert Kits		Pump Out
Insert Kits		Push to Pass
Insert Kits		Reset
Insert Kits		Select
Insert Kits		Starter
Insert Kits		Traction Control Down
Insert Kits		Traction Control Up
Insert Kits		Transmission Brake
Insert Kits		Windshield Spray
Insert Kits		Windshield Wiper
Insert Kits Insert Alpha/Numeric Kit
Insert Kits A			V
Insert Kits B			W
Insert Kits C			X
Insert Kits D			Y
Insert Kits E			Z
Insert Kits F			!
Insert Kits G			-
Insert Kits H			+
Insert Kits I			0
Insert Kits J			1
Insert Kits K			2
Insert Kits L			3
Insert Kits M			4
Insert Kits N			5
Insert Kits O			6
Insert Kits P			7
Insert Kits Q			8
Insert Kits R			9
Insert Kits S			10
Insert Kits T			11
Insert Kits U			12

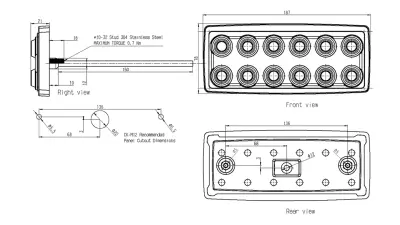

Dimensions

Further Information

Installation Notes

Installation on flat surface recommended
Installation on flat surface recommended Bolt size	#10-32
Installation on flat surface recommended Tightening Torque	0.7 +/- 0.1 Nm

Ordering Information

CAN Keypad CK-M12
Order number: F02U.V0U.328-04

Accessories

Insert Road Race Kit
Order number: F02U.B0U.022-01

Insert Drag Race Kit
Order number: F02U.B0U.023-01

Insert Alpha/Numeric Kit
Order number: F02U.B0U.024-01
