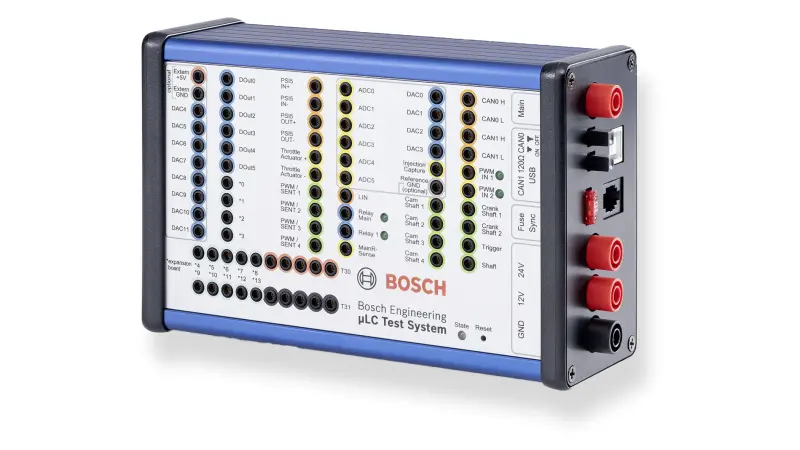

µLC Test System

µLC Test System

  • User-friendly interface
  • Functions can be extended with Expansion Boards
  • Prepared for test automation
  • Favorable test setup, consuming low space
  • Simulation of typical automotive interfaces combined in one unit

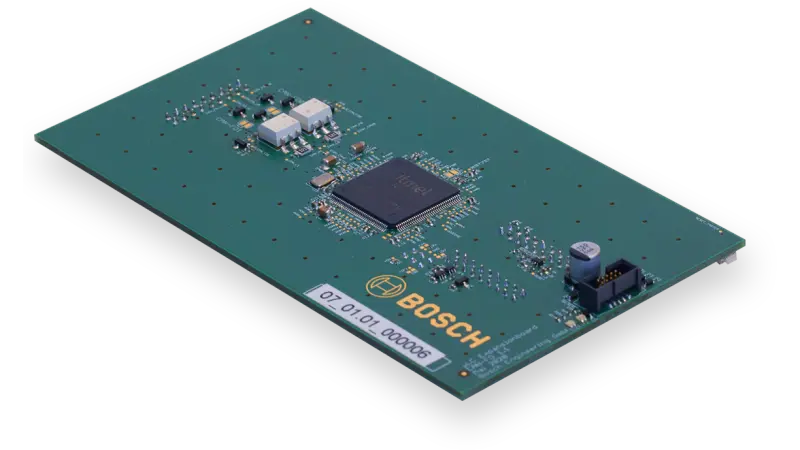

Expansion Board CAN-FD

Expansion Board CAN-FD

  • 2 independent channels
  • Compatible with CAN and CAN-FD
  • Switchable termination resistor

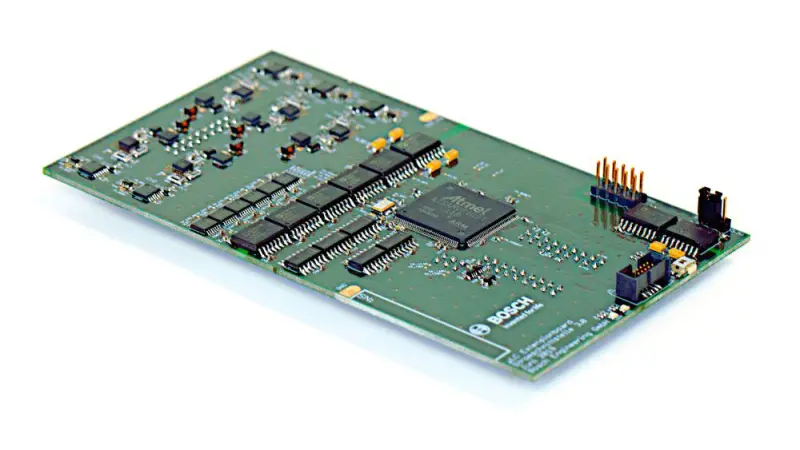

Expansion Board Current Loop Interface

Expansion Board Current Loop Interface

  • All common wheel speed sensors can be simulated
  • Simulation of gear speeds possible
  • Speed calculation based on wheel circumference
  • Current limits freely adjustable from 0 mA to 40 mA

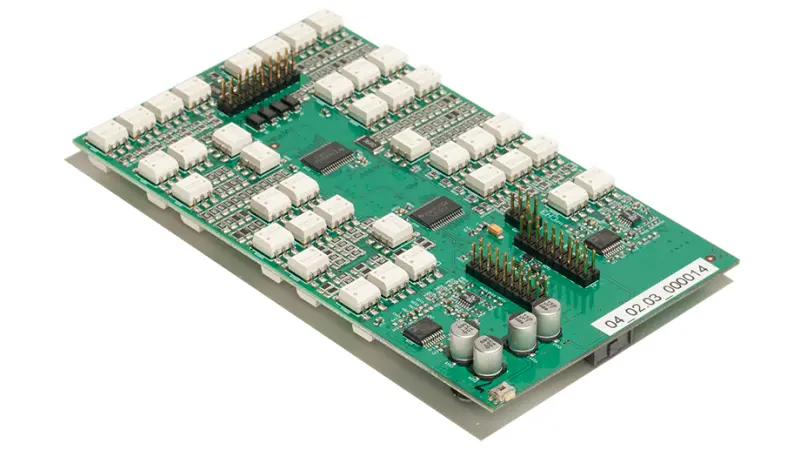

Expansion Board Digital Multichannel Pot.

Expansion Board Digital Multichannel Pot.

  • 4 independent, galvanically isolated, AC-capable channels
  • Wide range of resistance: 50 Ohm to 500 kOhm
  • High accuracy and 19 Bit Resolution
  • Overcurrent protection
  • Non-mechanical solid-state switches

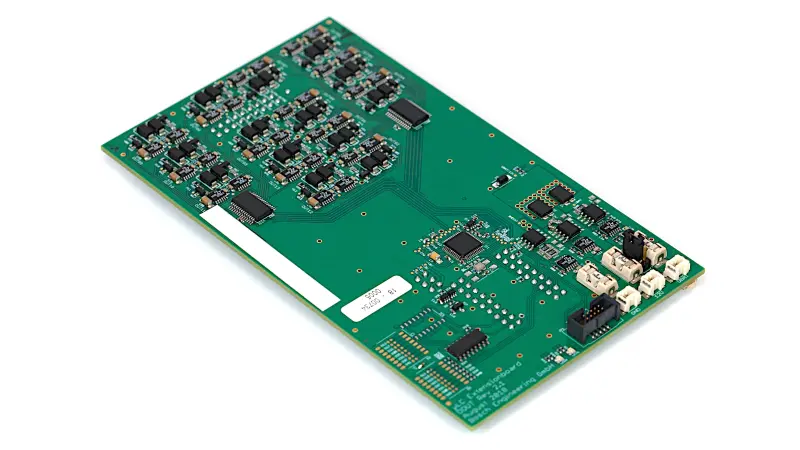

Expansion Board Digital Outputs

Expansion Board Digital Outputs

  • 14 additional digital outputs included
  • Short circuit proof
  • Change to individual states possible: Low, High, High-Z

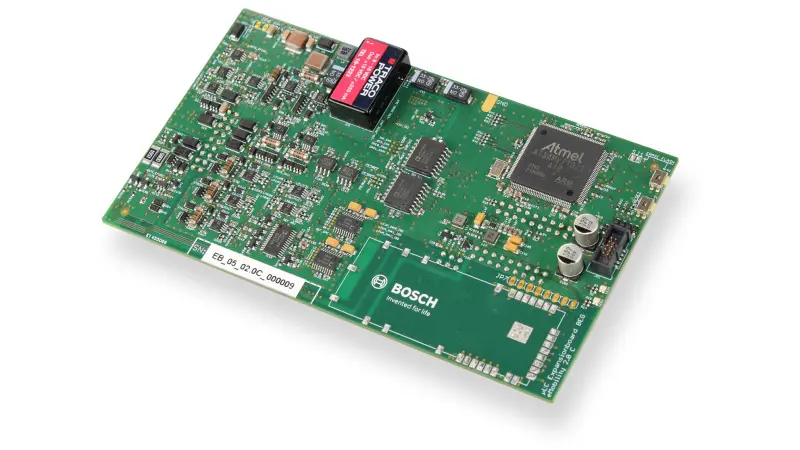

Expansion Board E-Mobility

Expansion Board E-Mobility

  • Expansion by sensor signal simulation of resolver signals, strand current signals, incremental encoder signals, and DAC
  • High signal precision
  • 16-bit resolution
  • Galvanic isolation & protective circuits

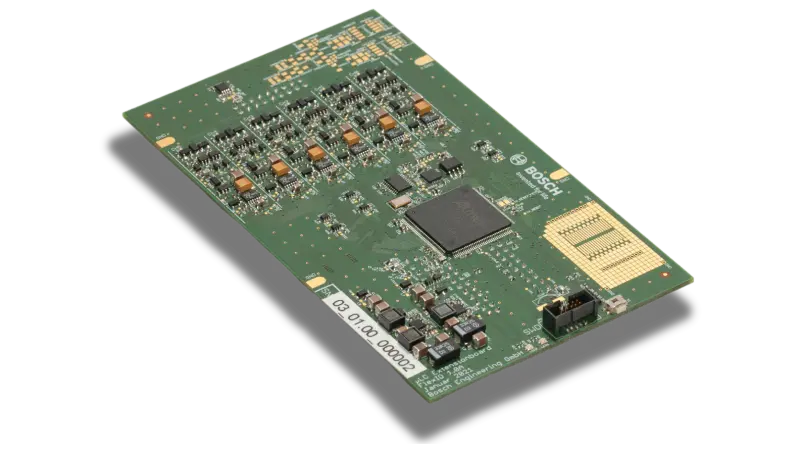

Expansion Board FlexIO

Expansion Board FlexIO

  • 6 additional channels, freely selectable between ADC, DAC, DOut, PWM, SENT
  • SENT signals according to SAE J2716 standard from 2016 with integrated fault simulation
  • Manipulation of analogue, PWM, and SENT signals
