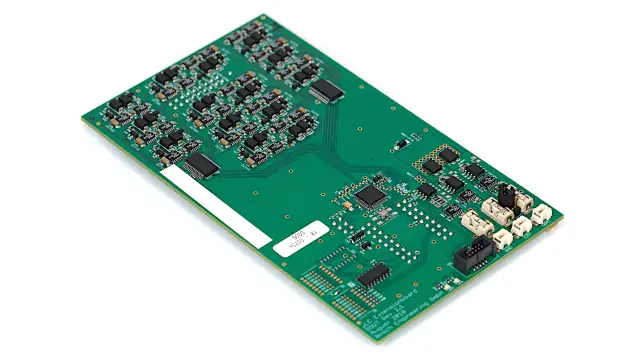

Expansion Board Digital Outputs

The Expansion Board Digital Outputs extends the functions of the µLC Test System without interventing the software and without activating additional mechanisms. Digital Outputs provides 14 digital outputs, which can be switched individually to the states Low, High or High-Z. All outputs can be switched simultaneously.

Product Highlights

Features

14 additional digital outputs included
Short circuit proof
Change to individual states possible: Low, High, High-Z

Downloads

Literature

Product Details

Application

Output voltage	Min	Max
Output voltage µLC 3.1	Min -1 V	Max 24 V

Technical Specification

DC characteristics
DC characteristics Parameters	Conditions	Value
DC characteristics U_out	Output = Low	<1.1 V
DC characteristics U_in-U_out	Output = High	<1.8 V
DC characteristics R_out	Output = High-Z	>10 MOhm
DC characteristics I_out,_prot	Channel shutdown threshold	±1 A
DC characteristics ∏I_out,_prot	Shutdown threshold total current all outputs	±3.33 A

Timing measured at U in = 24 V
Timing measured at U in = 24 V Parameters	Conditions	Value
Timing measured at U in = 24 V t_rise	Load of 500 Ohm to GND	58 µs
Timing measured at U in = 24 V	Load of 500 Ohm to 24 V	0.3 µs
Timing measured at U in = 24 V	Without load	62 µs
Timing measured at U in = 24 V t_fall	Load of 500 Ohm to GND	0.8 µs
Timing measured at U in = 24 V	Load of 500 Ohm to 24 V	5.5 µs
Timing measured at U in = 24 V	Without load	12 µs
Timing measured at U in = 24 V t_restart*		33.6 ms

*: Restart time after overcurrent

Further Information

Ordering Information

Expansion Board Digital Outputs
Order number: F02U.V02.904-01
