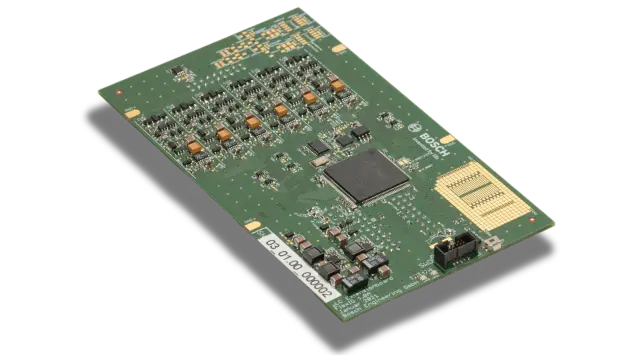

Expansion Board FlexIO

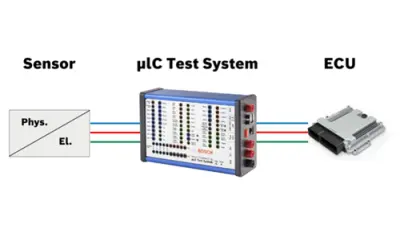

The Expansion Board FlexIO extends the functions of the µLC Test System by adding six versatile channels that can handle various types of signals, including analog and digital. It enables manipulation of different signal types, such as PWM and SENT, and supports complex configurations for advanced testing scenarios.

With features like error simulation and flexible signal processing, the board is well-suited for automotive and engineering applications where precision and adaptability are essential.

Product Highlights

Features

6 additional channels, freely selectable between ADC, DAC, DOut, PWM, SENT
SENT signals according to SAE J2716 standard from 2016 with integrated fault simulation

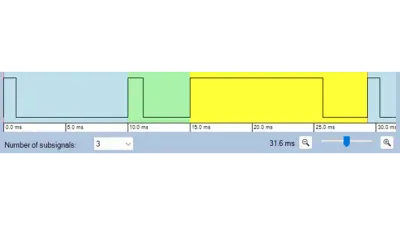

Manipulation of analogue, PWM, and SENT signals

Downloads

Literature

Product Details

Technical Specification

Channel	Specification
Channel ADC	Specification Input voltage 0 to 56 V ± 100 mV
Channel DAC	Specification Output voltage 0 to 5 V ± 50 mV
Channel DOut	Specification Output voltage 12 V or high impedance
Channel PWM-Out	Specification Frequency 0.1 to 25,000 HZ ± 0,05 % Duty cycle 0 to 100 % ± 0,5 % Output voltage 0, 3.3 to 12 V, or high impedance
Channel PWM-In	Specification Frequency 1 to 20,000 Hz ± 0,5 % Duty cycle 0 to 100 % ± 1 %
Channel SENT	Specification Sensor types in the SAE J2716 Norm Tick length 2 to 90 µs Message type Short 8, enhanced 12 or 16 Bit Multiplexing Error simulation

Edge steepness for DOut, PWM-Out, SENT

Output	Conditions	trise max	tfall max
Output 0 V / 3,3 V	Conditions Ulow= 0,5 V,Uhigh= 2,5 V,RL= 390 Ohm	trise max 120 ns	tfall max 120 ns
Output 0 V / 5 V	Conditions Ulow= 0,5 V,Uhigh= 4,1 V,RL= 390 Ohm	trise max 312 ns	tfall max 66 ns
Output 0 V / 12 V	Conditions Ulow= 1,2 V,Uhigh= 10,8 V,RL= 390 Ohm	trise max 58 ns	tfall max 120 ns

To determine the slew rate, an upper (Uhigh) and a lower (Ulow) threshold voltage were defined. Subsequently, the maximum time span required for a switching process to transition from one voltage range to the other was determined. A load resistor (RL) value of 390 Ohm was selected.

Dimensions

Further Information

Ordering Information

Expansion Board FlexIO
Order number: F02U. V03.360-01
