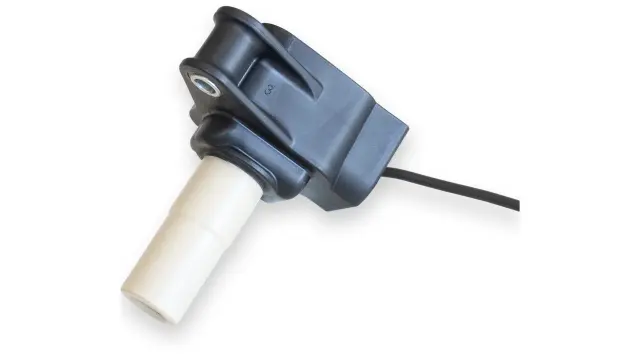

Ignition Coil C90i-WG

Ignition Coil C90i-WG

This single fire coil was developed for the use e.g. in GDI (turbocharged) high performance engines. It is designed to connect a high voltage wire on the coil.

The main benefit of this high performance coil is its high energy capability.

Product Highlights

Features

  • Max. 35 kV
  • Min. 90 mJ
  • Connection for high voltage wire
  • Max. 15,000 1/min
  • Developed for Turbo-GDI engines

Downloads

Literature

Product Details

Spark energy
≥ 90 mJ
Spark energy
Primary current
≥ 90 mJ
≤ 16 A
Spark energy
Operating temperature range outer core
≥ 90 mJ
0 to 160°C
Spark energy
Storage temperature range
≥ 90 mJ
-40 to 100°C
Spark energy
Max. vibration
≥ 90 mJ
≤ 250 m/s2at 50 to 2,000 Hz
Mechanical Data
Mechanical Data
Length
83 mm
Mechanical Data
Weight w/o wire
210 g
Mechanical Data
Mounting
screw fastening
Electrical Data
Electrical Data
Primary resistance
185 mOhm
Electrical Data
Secondary resistance
Incapable of measurement
Electrical Data
High voltage rise time
≤ 5.0 kV/µs
Electrical Data
Max. high voltage
≤ 35 kV
Electrical Data
Spark current
≤ 160 mA
Electrical Data
Spark duration at 1 kV || 1 MOhm
≤ 1.1 ms
Electrical Data
Noise suppression
Inductive
Electrical Data
Suppression diode / EFU
Internal
Characteristic
Characteristic
Measured with power stage
IGBT IRG4BC40S (Uce=600 V)
Connectors and Wires
Connectors and Wires
Connector primary side
On request
Connectors and Wires
Mating connector primary side
On request
Connectors and Wires
Pin 1
Ubattred
Connectors and Wires
Pin 2
ECU ignition power stage blue
Connectors and Wires
Pin 3
Engine GND black
Connectors and Wires
Wire length
100 cm
Connectors and Wires
Wire size
AWG 20/22
Connectors and Wires
30 kV grid connectors
See Accessories
Connectors and Wires
Various motorsport and automotive connectors are available on request.
Connectors and Wires
Please specify the required wire length if you order the coil with a motorsport connector.
Characteristic dwell times [ms]
Characteristic dwell times [ms]
U batt
I primary
Characteristic dwell times [ms]
10 A
12 A
15 A
16 A
17 A
20 A
Characteristic dwell times [ms]
6 V
3.2
4.5
7.6
9.8
Characteristic dwell times [ms]
8 V
1.88
2.49
3.47
3.79
4.10
Characteristic dwell times [ms]
10 V
1.35
1.76
2.34
2.51
2.67
3.05
Characteristic dwell times [ms]
12 V
1.06
1.35
1.77
1.89
2.00
2.24
Characteristic dwell times [ms]
14 V
0.87
1.11
1.43
1.52
1.60
1.79
Characteristic dwell times [ms]
16 V
0.74
0.93
1.20
1.28
1.34
1.49
Characteristic dwell times [ms]
16.5 V
0.71
0.90
1.15
1.23
1.29
1.43
Characteristic dwell times [ms]
18 V
0.64
0.81
1.03
1.10
1.15
1.27
Characteristic dwell times [ms]
Measured values are without loom resistance. Loom resistance must be less than the primary resistance. The needed dwell time is to be verified through current measurement
Dwell time
Spark energy and provided high voltage
Spark energy and provided high voltage
I prim.
Spark energy
-duration
-current
Hi voltage
Spark energy and provided high voltage
10 A
41.4 mJ
0.74 ms
100 mA
31.6 kV
Spark energy and provided high voltage
12 A
59.5 mJ
0.882 ms
122 mA
37.4 kV
Spark energy and provided high voltage
15 A
84.4 mJ
1.034 ms
148 mA
45.7 kV
Spark energy and provided high voltage
16 A
92.6 mJ
1.07 ms
158 mA
46 kV
Spark energy and provided high voltage
17 A
100 mJ
1.09 ms
165 mA
46 kV
Spark energy and provided high voltage
20 A
115 mJ
1.16 ms
190 mA
46 kV
Spark energy
See Offer Drawing for further information

Further Information

During mounting of the spark plug please pay attention that full clamping and proper contacts are made to ensure safe connection between coil and spark plug (high voltage wire).
During mounting of the spark plug please pay attention that full clamping and proper contacts are made to ensure safe connection between coil and spark plug (high voltage wire).
This coil is only for use with engine control units having an integrated ignition power stage, e.g. IGBT IRG4BC40S or BIP.
During mounting of the spark plug please pay attention that full clamping and proper contacts are made to ensure safe connection between coil and spark plug (high voltage wire).
For technical reasons the values of the coils may vary.
During mounting of the spark plug please pay attention that full clamping and proper contacts are made to ensure safe connection between coil and spark plug (high voltage wire).
Please regard the specified limit values (see “Electrical Data”).
During mounting of the spark plug please pay attention that full clamping and proper contacts are made to ensure safe connection between coil and spark plug (high voltage wire).
Usage above Iprim = 16 A or 35 kV may reduce the lifetime.
During mounting of the spark plug please pay attention that full clamping and proper contacts are made to ensure safe connection between coil and spark plug (high voltage wire).
Please find further application hints in the offer drawing at our homepage.
Design Note
Design Note
We strongly recommend the design of the spark plug shaft has to ensure that there are no sharp edges in the shaft geometry due to design or machining. Only in compliance with this recommendation, a proper function can be ensured.

Ignition Coil C90i-WG
Order number: F02U.V02.430-01
