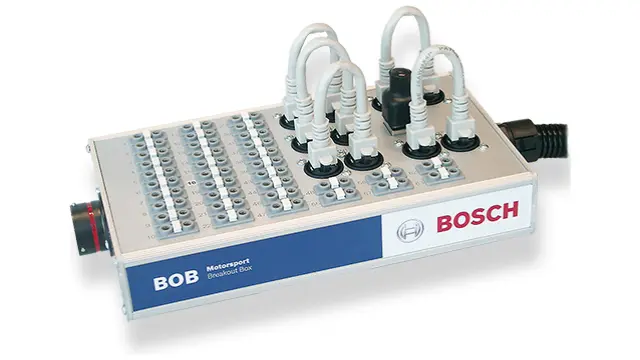

Breakout Box BOB MS 7

Breakout Box BOB MS 7

The Breakout Box BOB enables the operator to perform measurements and modify connections during operation. The jumpers facilitate the ability to open and close each individual connection without removing the jumper. All signals can be accessed and measured via the jacking points. The box is essential for development and test environments in the lab and vehicle.

This version was especially developed for use with the LIFE connector of Engine Control Units MS 7 and Vehicle Control Unit VCU.

Product Highlights

Features

  • Optimised packaging facilitates a low-profile design with compact, lightweight housing
  • Robust 4 mm standard jacks for measuring leads
  • Signal integrity of high-speed data links ensured by product-specific version
  • Standard configurations and fully customized versions available
  • No more lost jumpers due to patented 90° rotatable connectors

Downloads

Literature

Product Details

Mechanical Data
Mechanical Data
Size
226 x 130 x 40 mm
Mechanical Data
Weight
1,180 g w/o accessories
Mechanical Data
4 mm standard jacks for measuring leads
36
Mechanical Data
Ethernet connectors
10
Mechanical Data
Ethernet wire
5 x inclusive
Mechanical Data
USB connectors
2
Mechanical Data
USB jumper
1 inclusive
Connectors and Wires
Connectors and Wires
Wire length L
55 cm

Further Information

Breakout Box BOB MS 7
Connector code: red
Order number: F02U.V02.293-01
