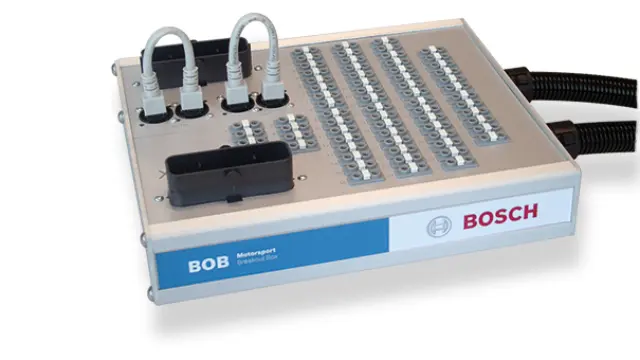

Breakout Box BOB PBX 90

Breakout Box BOB PBX 90

The Breakout Box BOB enables the operator to perform measurements and modify connections during operation. The jumpers facilitate the ability to open and close each individual connection without removing the jumper. All signals can be accessed and measured via the jacking points. The box is essential for development and test environments in the lab and vehicle.

This version was especially developed for use with PowerBox PBX 90.

Product Highlights

Features

  • Optimised packaging facilitates a low-profile design with compact, lightweight housing
  • Robust 4 mm standard jacks for measuring leads
  • Signal integrity of high-speed data links ensured by product-specific version
  • Standard configurations and fully customized versions available
  • No more lost jumpers due to patented 90° rotatable connectors

Downloads

Literature

Product Details

Mechanical Data
Mechanical Data
Size
255 x 220 x 45 mm
Mechanical Data
Weight
2,400 g
Mechanical Data
4 mm standard jacks for measuring leads
68
Mechanical Data
Ethernet connectors
4
Mechanical Data
Ethernet wire
2 x inclusive
Connectors and Wires
Connectors and Wires
Wire length L
2 x 60 cm

Further Information

Breakout Box BOB PBX 90
Order number: F02U.V02.292-01
