Temperature Sensors

Product Overview

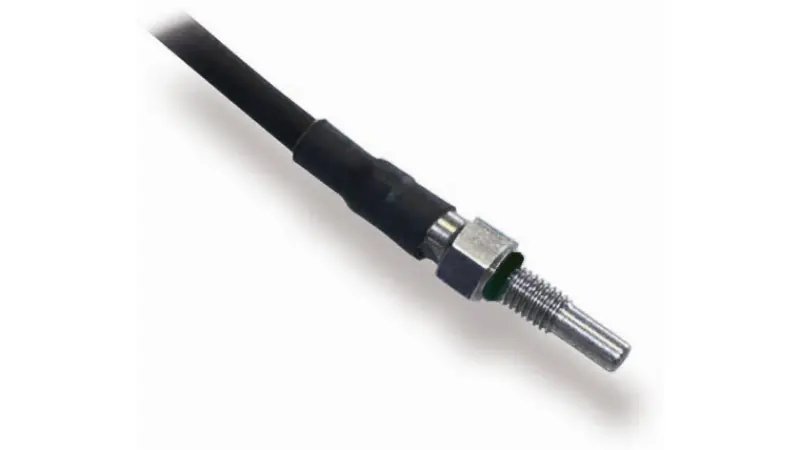

Temperature Sensor NTC M5-HS

Temperature Sensor NTC M5-HS

  • Application: -55 to 300°C
  • Accuracy at 25°C: ± 0.3°C
  • Accuracy at 100°C: ± 1.3°C
  • Male thread: M5
  • Nominal resistance: 10 kOhm ± 1 % (at 25°C)

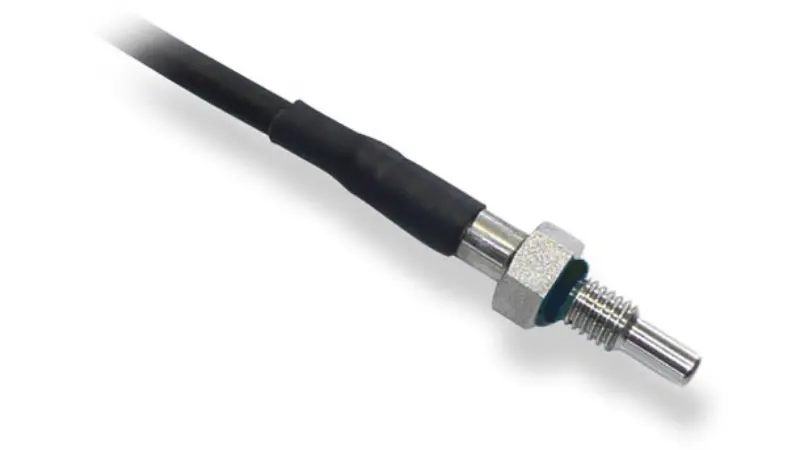

Temperature Sensor NTC M6-HS

Temperature Sensor NTC M6-HS

  • Application: -55 to 300°C
  • Accuracy at 25°C: ± 0.3°C
  • Accuracy at 100°C: ± 1.3°C
  • Male thread: M6 x 1
  • Nominal resistance: 10 kOhm ± 1 % (at 25°C)

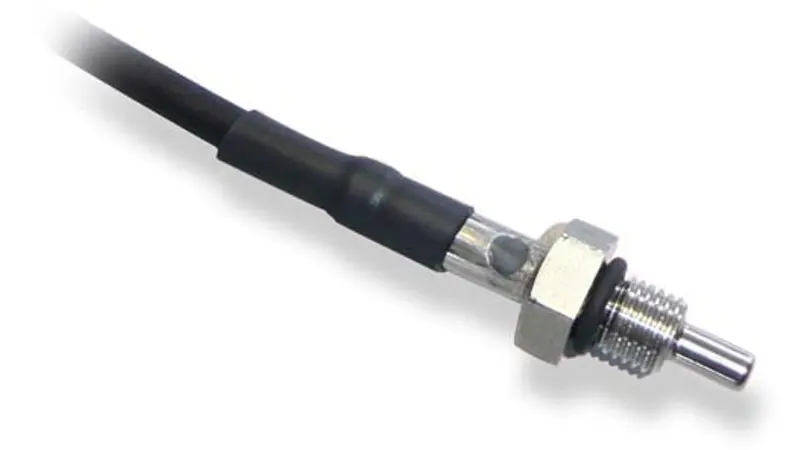

Temperature Sensor NTC M8-HS

Temperature Sensor NTC M8-HS

  • Application: -55 to 300°C
  • Accuracy at 25°C: ± 0.3°C
  • Accuracy at 100°C: ± 1.3°C
  • Male thread: M8 x 1
  • Nominal resistance: 10 kOhm ± 1 % (at 25°C)

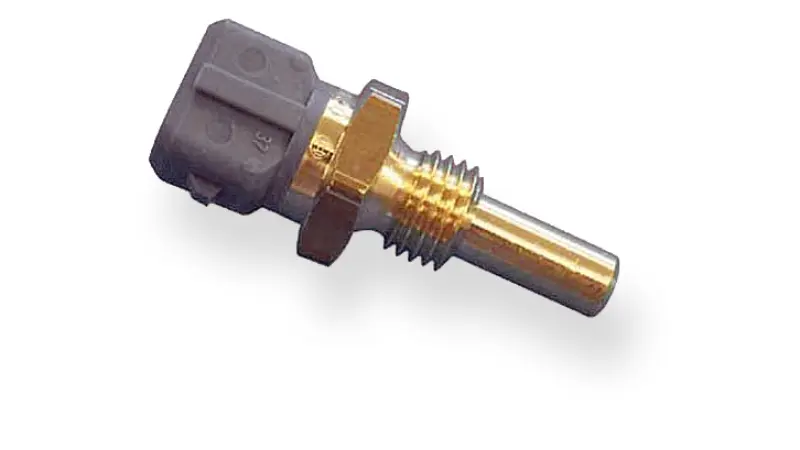

Temperature Sensor NTC M12

Temperature Sensor NTC M12

  • Application: -40 to 130°C
  • Accuracy at 25°C: ± 1.4°C
  • Accuracy at 100°C: ± 0.8°C
  • Male thread: M12 x 1.5
  • Nominal resistance at 20°C: 2.5 kOhm ± 6 %

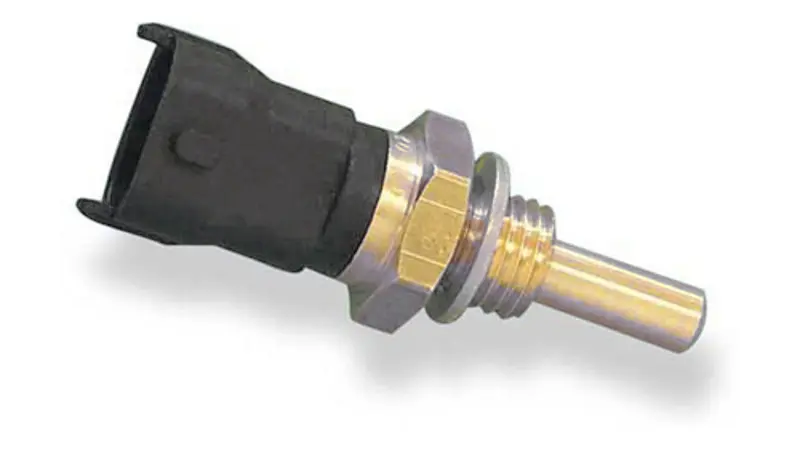

Temperature Sensor NTC M12-H

Temperature Sensor NTC M12-H

  • Application: -40 to 130°C
  • Accuracy at 25°C: ± 1.4°C
  • Accuracy at 100°C: ± 0.8°C
  • Male thread: M12 x 1.5
  • Nominal resistance at 20°C: 2.5 kOhm ± 6 %

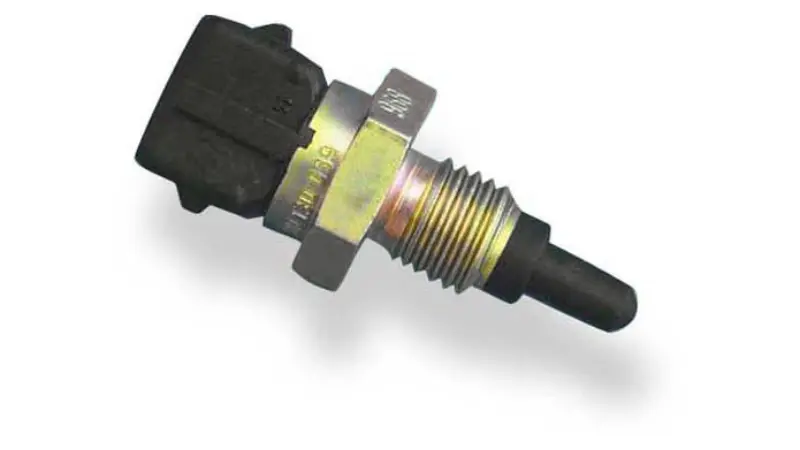

Temperature Sensor NTC M12-L

Temperature Sensor NTC M12-L

  • Application: -40 to 130°C
  • Accuracy at 25°C: ± 1.4°C
  • Accuracy at 100°C: ± 3.4°C
  • Male thread: M12 x 1.5
  • Nominal resistance: 2.5 kOhm ± 5 % (at 20°C)
