Speed Sensors

Product Overview

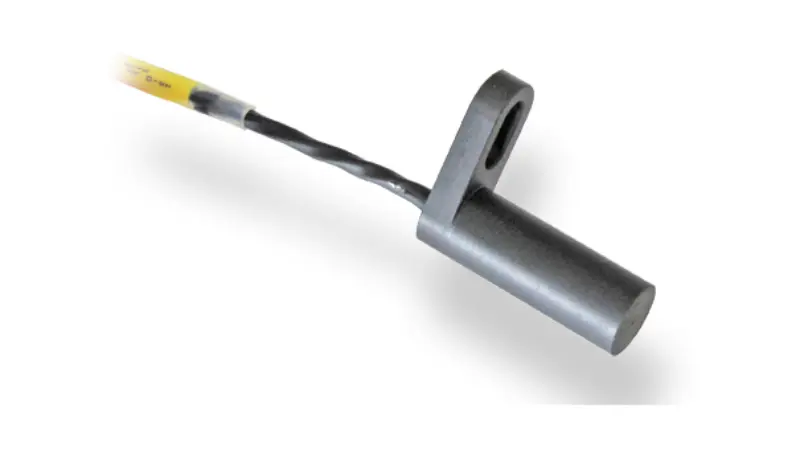

Speed Sensor Hall-Effect HA-D 90

Speed Sensor Hall-Effect HA-D 90

  • Max. frequency: ≤10 kHz
  • Air gap: 0.4 to 1.0 mm
  • Bore diameter: 11.8 mm
  • Max. vibration: 1,200 m/s² at 10 Hz to 2 kHz
  • Weight w/o wire: 12 g

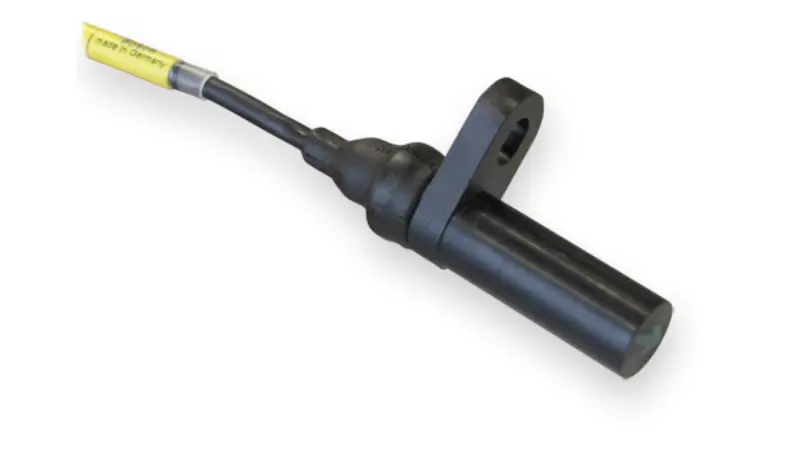

Speed Sensor Hall-Effect HA-Di

Speed Sensor Hall-Effect HA-Di

  • Max. frequency: ≤ 10 kHz
  • Air gap: 0.4 to 1.0 mm
  • Bore diameter: 12 mm
  • Max. vibration: 1,200 m/s² at 10 Hz to 2 kHz
  • Weight w/o wire: 12 g
Speed Sensor Hall-Effect HA-M

Speed Sensor Hall-Effect HA-M

  • Max. frequency: ≤ 4.2 kHz
  • Air gap: 0.5 to 1.0 mm
  • Bore diameter: 11.8 mm
  • Max. vibration: 1,200 m/s² at 10 Hz to 2 kHz
  • Weight w/o wire: 12 g

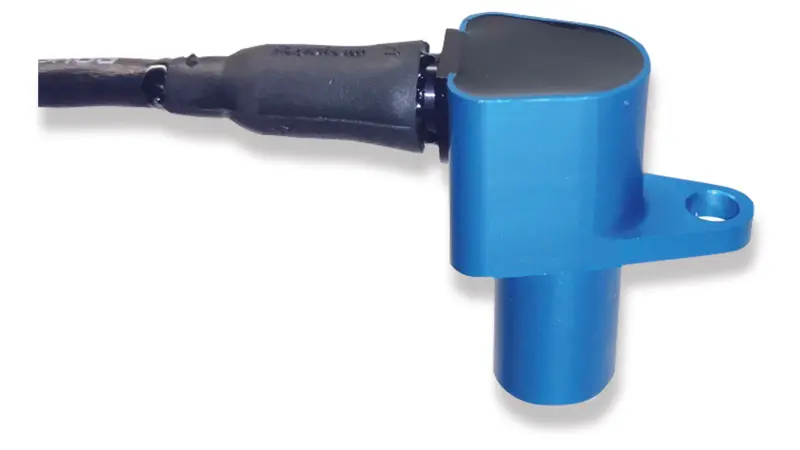

Speed Sensor Hall-Effect HA-N

Speed Sensor Hall-Effect HA-N

  • Max. frequency: ≤ 4.2 kHz
  • Air gap: 0.4 to 1.5 mm
  • Bore diameter: 10 mm
  • Max. vibration: 1,200 m/s² at 10 Hz to 2 kHz
  • Weight w/o wire: 8 g

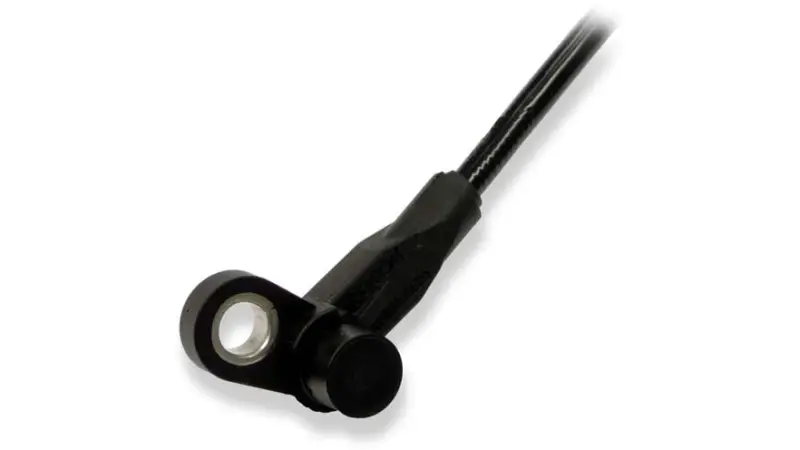

Speed Sensor Hall-Effect Mini-HA-P

Speed Sensor Hall-Effect Mini-HA-P

  • Max. frequency: ≤ 10 kHz
  • Air gap: 0.2 to 1.5 mm
  • Bore diameter: 11.5 mm
  • Max. vibration: 1,200 m/s² at 10 Hz to 2 kHz
  • Weight w/o wire: 20 g

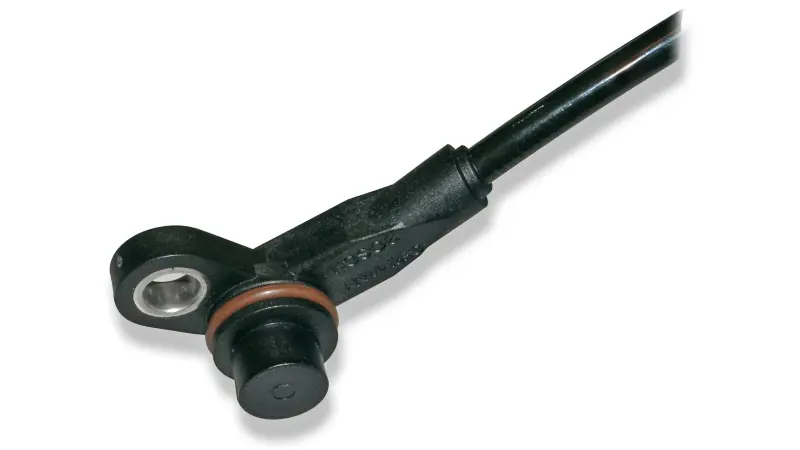

Speed Sensor Hall-Effect Mini-HA-P sealed

Speed Sensor Hall-Effect Mini-HA-P sealed

  • Max. frequency: ≤ 10 kHz
  • Air gap: 0.2 to 1.5 mm
  • Bore diameter: 16 mm
  • Max. vibration: 1,200 m/s² at 10 Hz to 2 kHz
  • Weight w/o wire: 20 g
