Vehicle Dynamics

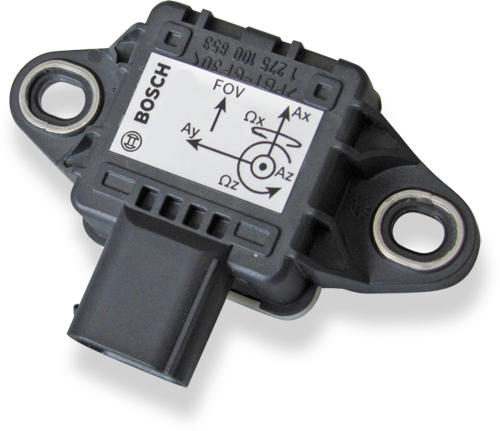

Acceleration Sensor MM5.10

  • Application 1: ±163°/s (roll rate/ yaw rate)
  • Application 2: ±4.2 g (X, Y and Z acceleration)
  • Weight w/o wire: 35 g
  • Size: 80 x 56 x 21 mm
  • Power supply: 7 to 18 V

Acceleration Sensor MM5.10-R

  • Application 1: ±163°/s (roll rate/ yaw rate)
  • Application 2: ±4.2 g (X, Y and Z acceleration)
  • Weight w/o wire: 28 g
  • Size: 34 x 34 x 16.5 mm
  • Power supply: 7 to 18 V

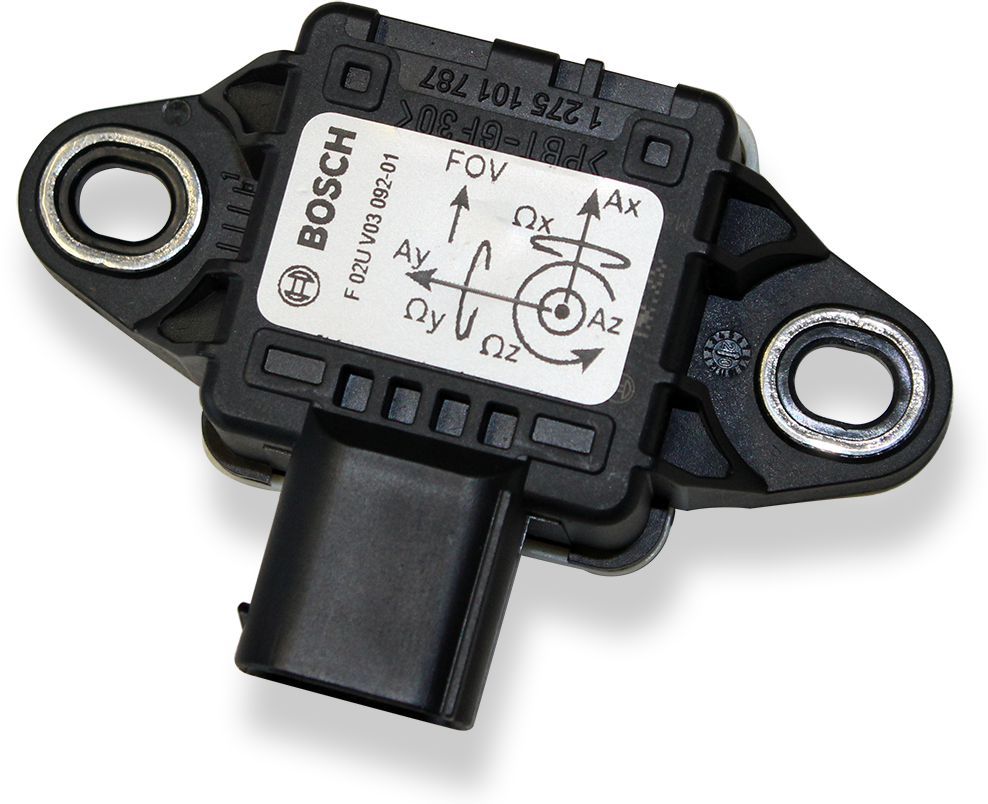

Acceleration Sensor MM7.10

  • Application 1: ±163°/s (roll / pitch / yaw rate)
  • Application 2: ±4.2 g (X, Y and Z acceleration)
  • Weight w/o wire: 35 g
  • Size: 80 x 56 x 23.3 mm
  • Power supply: 8 to 16 V
