Simulation Packages

These simulation packages allow customers that use Bosch Motorsport control systems to simulate the functionality without using the hardware. These packages enable the user to run Bosch Motorsport and customer code area functions within the PTWinSim® environment.

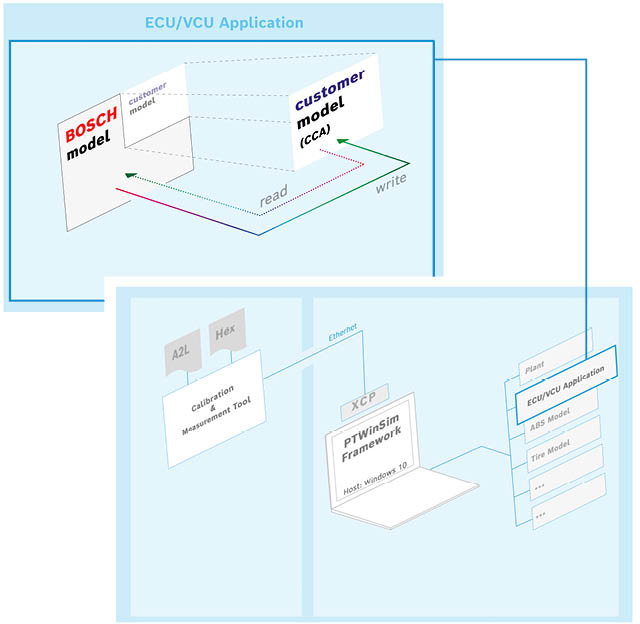

PTWinSim® provides a framework and supporting functionality enabling several applications to execute in a coherent time frame on a variety of hosts.

Applications ranging from Engine Control Unit code to vehicle system models with complex control algorithms are simply adapted for the simulation environment. Furthermore, with WinDarab COM API, Bosch Motorsport customers can use WinDarab datasets as stimuli and logging for their simulated control system.

Device Simulation Runtime provides the runtime licenses to run a Bosch Motorsport simulation package within PTWinSim®. This requires an individual and project specific simulation software, which needs to be ordered separately.

CCA Simulation Package also provides the option for users of CCA to generate their own simulation software. Device Simulation Runtime is included.

Downloads

Literature

Features

  • Simulate Bosch model and Customer model together in the same simulation environment
  • Develop Bosch Motorsport control systems (ECU/VCU) in a simulation environment with other plant models (e.g. tire, ABS)
  • Enables use of Bosch models (via PTWinSim) in other simulation environments like rFpro
  • Execute your control system faster than real-time on a Windows 10 PC
  • Perform real-time analysis on telemetry streams or other data sources

Technical Specifications

Recommended Operation System Windows 10, min. Update Version 1803

Required and not included Software

MathWorks Requirements

CCA S.P.*

Device S.P.*



MATLAB R2018b

x





Simulink

x





Real-Time Workshop

x





Real-Time Workshop Embedded Coder

x





Fixed-Point Toolbox

x





Simulink Fixed-Point

x





Stateflow

x





Stateflow Coder

x





Vehicle Network Toolbox

x





Min. PTWinSim 4.09

x

x

Compiler







Microsoft Visual Studio,
Version 2017

x

x

Application tool







RaceCon 2.7 or later

x

x

*S.P.: Simulation Package

Ordering Information

CCA Simulation Package

CCA Simulation development target to build and execute customer code.

Including 1 Device Simulation Runtime license and 1 year maintenance.

Order number: F02U.V02.893-01

Device Simulation Runtime

Device Simulation Runtime license to execute simulation on a PC and 1 year maintenance

Order number: F02U.V02.891-01

CCA Simulation Package Annual Maintenance



Order number: F02U.V02.892-01

Device Simulation Runtime Annual Maintenance



Order number: F02U.V02.890-01

Legal Restrictions

The sale of this Software Tool in Mexico is prohibited.

Due to embargo restrictions, sale of this Software Tool in Russia, Belarus, Iran, Syria, and North Korea is prohibited.
