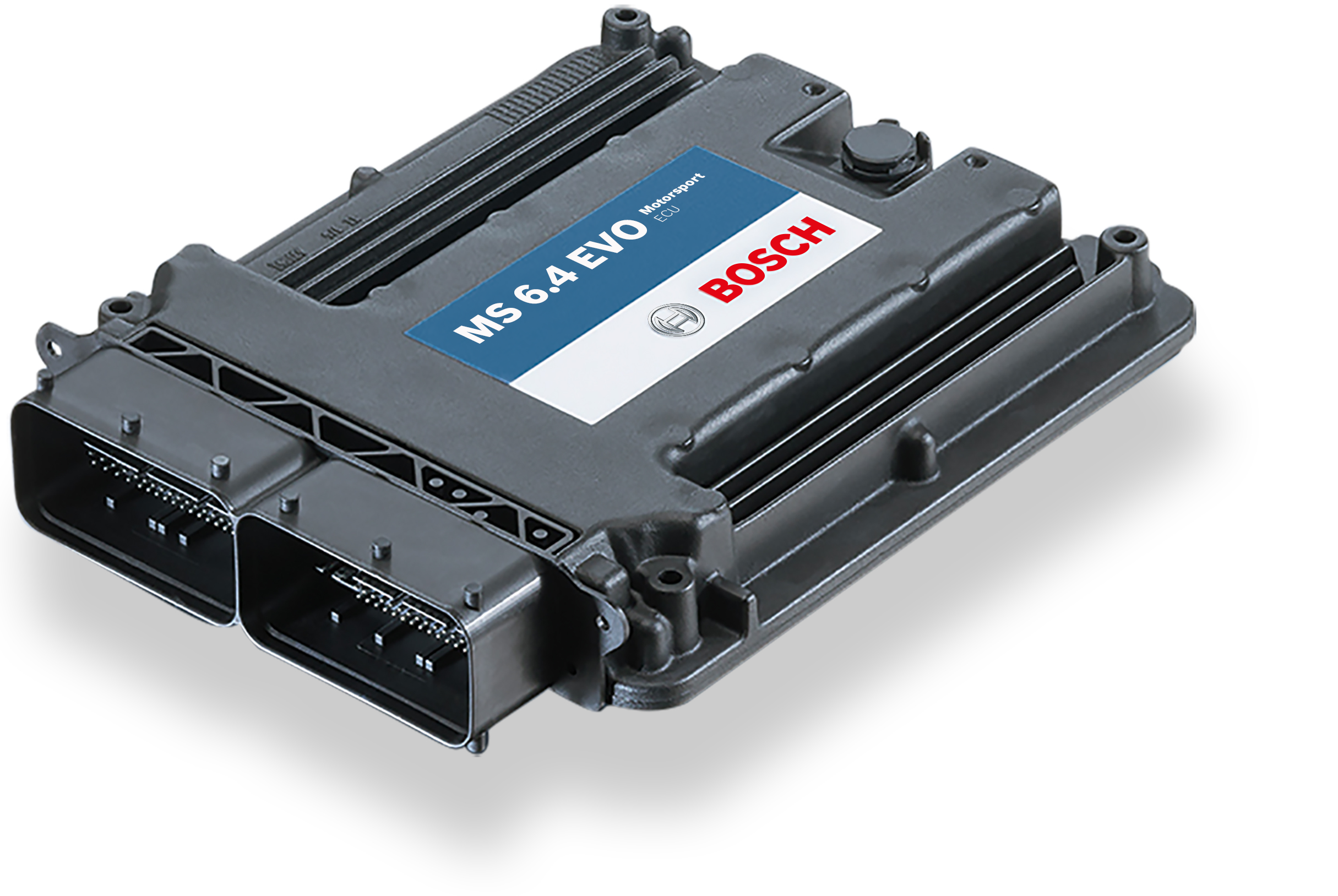

The MS 6.4 EVO engine control unit manages gasoline engines up to 12 cylinders. As a member of our MS 6 family it features a powerful digital processing core with floating point arithmetic and a high-end FPGA for ultimate performance and flexibility. The MS 6 family utilizes a new software development process based on MATLAB/Simulink which significantly speeds algorithm development by using automatic code and documentation generation. Custom functions can be quickly and easily generated. The flexible hardware design allows the MS 6.4 EVO to support complex or unusual engine or chassis configurations.
- Downloads
- Features
- Application
- Technical Specifications
- Communication
- Installation Notes
- Ordering Information
- Upgrades
- Legal Restrictions
Downloads
To get latest firmware, please contact your customer account manager or send an email to motorsport@bosch.de.
Literature
Features
- Optimized for low- and high-pressure injection
- Measurement with 38 analog inputs
- Supports Customer Code Area CCA
- 4 GB memory plus 4 GB upgrade
- SENT sensor support
Application
High pressure injection Integrated power stages for the use of:
(depending on injection types and pressure ranges) |
HP package for flat and V-engines inclusive (2nd Bank, MSV2, cylinder 7&8, external cylinder 9-12) |
Low pressure injection
| |
Ignition
| |
Physical engine model for fast application
| |
Integrated support of manual gearshift | |
Electronic throttle control | |
Variable Valve Timing VVT | |
Turbo control | |
Traction control | |
Launch control | |
LTE Ethernet telemetry support | |
Internal logger
| |
Logging rate
| |
Logger Options | See Upgrades |
Technical Specifications
Mechanical Data
Aluminum housing | |
2 Bosch connectors | 196 pins in total |
Size | 226 x 181 x 44 mm |
Weight | 1,086 g |
Protection Classification | IP54 |
Temp. range (at internal sensors) | -20 to 80°C |
Electrical Data
Power supply | 6 to 18 V |
CPU | Dual Core 667 MHz, FPGA |
Inputs
38 analog inputs | |
| 6 x reserved for electronic throttle controls |
| 10 x no integrated pull-up |
| 4 x option for angle synchronous measurement, no integrated pull-up |
| 5 x fixed 3.01 kOhm pull-up |
| 13 x switchable 3.01 kOhm pull-up |
8 analog/digital inputs (shared) | |
| 8 x option for angle synchronous measurement / digital (e.g. SENT) |
6 internal measurements | |
| 1 x ambient pressure |
| 1 x acceleration 6-axis |
| 2 x ECU temperature |
| 2 x ECU voltage |
9 function related inputs | |
| 2 x thermocouple exhaust gas temperature sensors (K-type) |
| 2 x Lambda interfaces for LSU 4.9 sensor types |
| 1 x lap trigger/beacon input |
| 4 x knock sensors |
10 digital inputs | |
| 1 x switchable Hall or inductive sensor for flywheel measurement |
| 2 x Hall sensor for sync wheel detection |
| 4 x switchable Hall or DF11 sensors for camshaft position or wheel speed |
| 2 x switchable Hall or inductive sensors for turbo speed measurement |
| 1 x digital switch for engine ON/OFF |
Sensor supplies and screens
4 x sensor supplies 5 V / 50 mA |
3 x sensor supplies 5 V / 150 mA |
7 x sensor grounds |
2 x sensor screens |
Outputs
38 function related outputs | |
High Pressure Injection | |
| 2 x high pressure pump with MSV control 8 x high pressure injection for magnetic injectors |
Low Pressure Injection | |
| 12 x 2.2 A low pressure injection for high impedance injectors |
Ignition | |
| 12 x ignition control, IGBT or BJT, coils with integrated amplifier |
2 x 8.5 A H-bridge reserved for electronic throttle | |
2 x 4 A pwm lowside switch for Lambda heater |
19 freely configurable outputs | |
| 1 x 8.5 A H-bridge |
| 2 x 4 A pwm lowside switch |
| 4 x 3 A pwm lowside switch |
| 8 x 2.2 A pwm lowside switch |
| 4 x 1 A pwm lowside switch |
3 output signals | |
| 1 x engine rpm |
| 1 x flywheel |
| 1 x trigger wheel |
Software Tools (free download)
Data Analysis tool WinDarab V7 |
System Configuration tool RaceCon 2.7.0.9 or later |
Mating Connectors (not included)
Mating Connector 91 pins | F02U.B00.711-01 |
Mating Connector 105 pins | F02U.B00.712-01 |
Norms
Product Safety |
EN IEC 62368-1:2020+A11:2020 |
Materials |
REACH - Nr. 1907/2006 |
EMC |
UNECE10:rev.6/AMD1:2020 |
KN41 |
ISO11452-2 |
ISO11452-4 |
ISO10605 |
ISO7637-2 |
ISO7367-3 |
ISO16750-2 |
US FCC: Title 47, Part 15 Subpart B |
ICES-003 |
Testing |
SAEJ1211 |
Communication
2 Ethernet |
3 CAN |
1 LIN |
1 USB |
8 SENT |
1 RS232 |
1 Time sync synchronization Ethernet |
3 Communication screens |

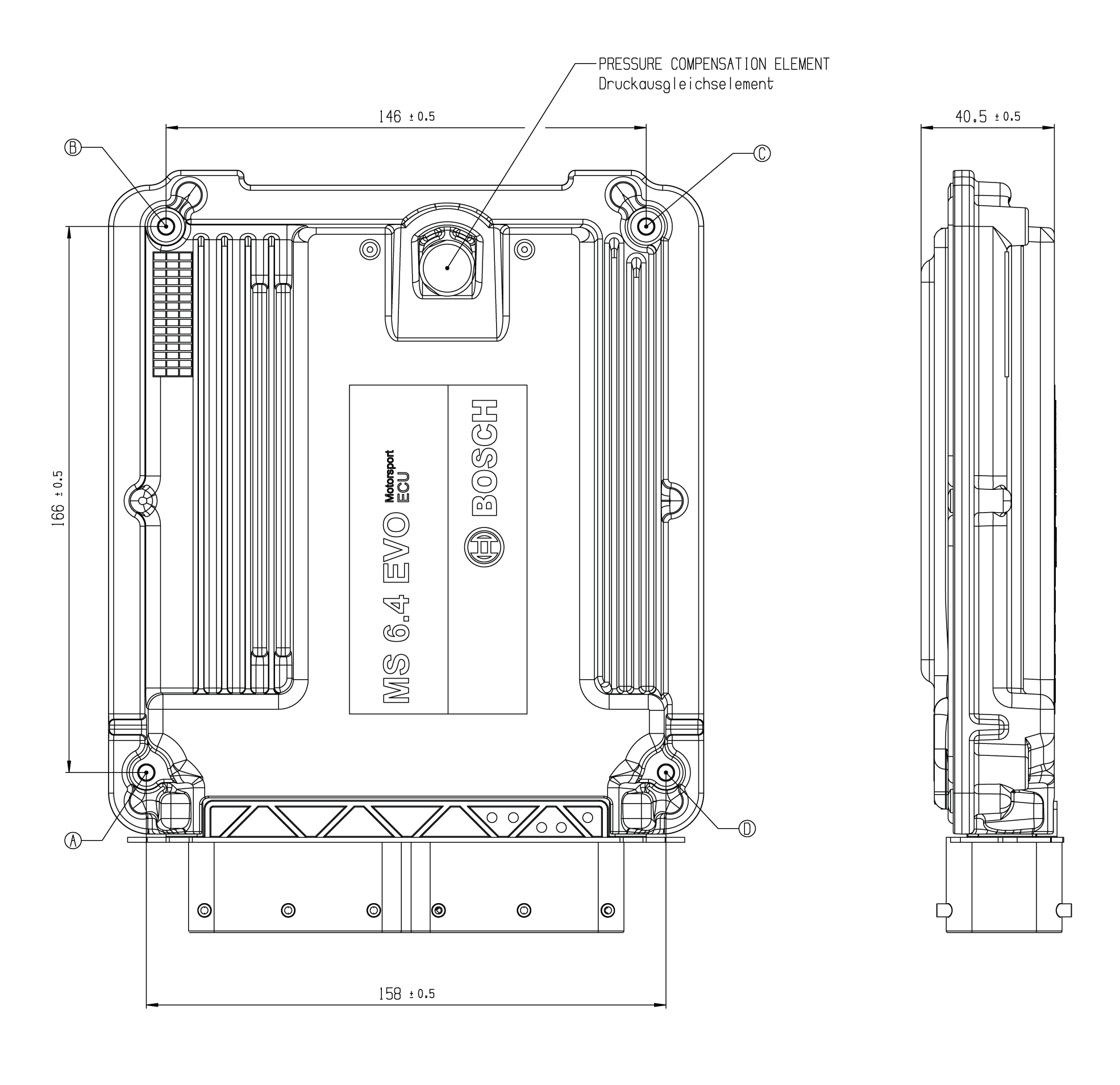

Installation Notes
Ordering Information
Engine Control Unit MS 6.4 EVO
Order number: F02U.V03.114-01
Software Options
CCA Hardware Upgrade per device
Order number: F02U.V02.137-01
FULL_LOG_1
Order number: F02U.V02.304-01
FULL_LOG_2
Order number: F02U.V02.305-01
Gear Control Package 1
Order number: please contact MEGA-Line
Gear Control Package 2
Order number: F02U.V02.108-01
SW Package MS 6 Drag 1
Order number: F02U.V0U.409-01
SW Package MS 6 Drag 2
Order number: F02U.V0U.410-01
Innovation License Device
Order number: F02U.V02.510-01
Innovation Package Project
Order number: F02U.V02.511-01
Accessories
USB_DATA
Order number: F02U.V02.214-01
Breakout Box BOB MS 6 EVO
Order number: F02U.V02.294-02
Mating Connector 91 pins
Order number: F02U.B00.711-01
Mating Connector 105 pins
Order number: F02U.B00.712-01
Upgrades
CCA Hardware Upgrade per device
Provides the option to run customer developed software code on Bosch ECU |
FULL_LOG_1
Extension for Partition 1
|
FULL_LOG_2
Activation of Partition 2
|
USB_DATA
Rugged USB flash drive Bosch File System (BFS) format, works with Bosch File System (BFS) preformatted USB flash drive only Adapter cable to PC USB-Port Mating connector for USB flash drive on car loom side SW licence USB-Port unlocked |
Gear Control Package 1
Gear control MEGA-Line functionality, has to be used with MEGA-Line components (License model via MEGA-Line) |
Gear Control Package 2
Gear control Bosch Motorsport functionality |
SW Package MS 6 Drag 1
Launch Timer |
SW Package MS 6 Drag 2 (requires Drag 1 License)
Acceleration Sensor MM5.10 included |
Innovation License Device
Activation of a set of additional functions for a single device:
|
Innovation Package Project
Innovation Package Project has the same content as Innovation License Device, but license is valid for the whole project instead of a single device |
Legal Restrictions
The sale of this product in Mexico is prohibited.
Due to embargo restrictions, sale of this product in Russia, Belarus, Iran, Syria, and North Korea is prohibited.
