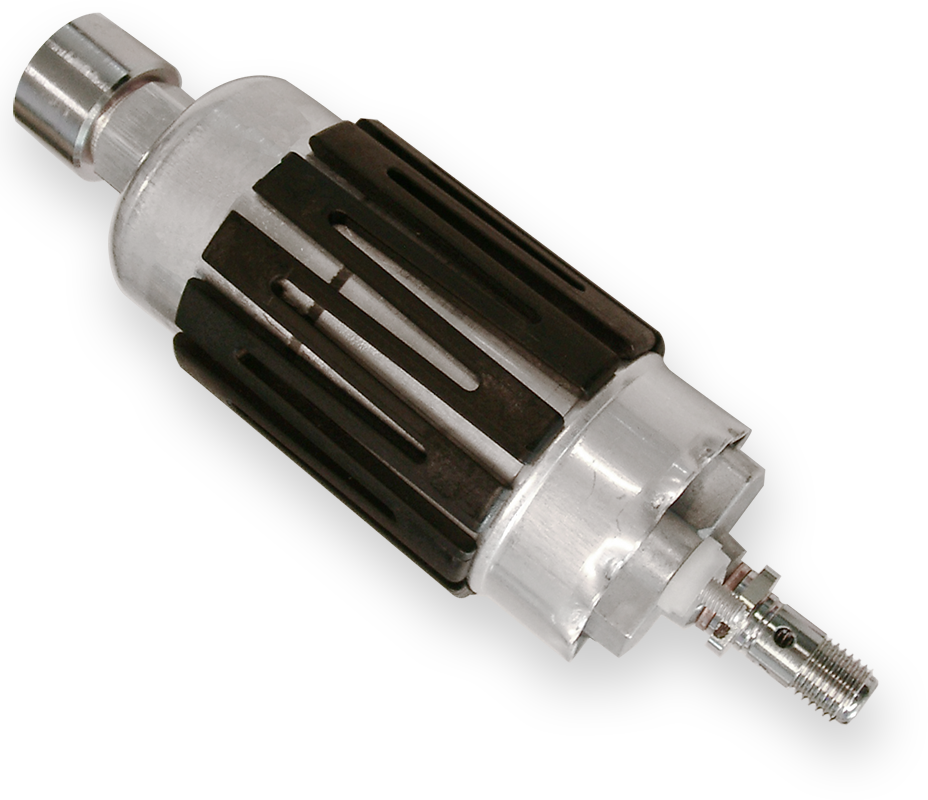

Fuel Pump FP 200-E

The FP 200-E is an inline roller cell pump for the installation outside the fuel tank (installation in the tank is not proven).

It is capable of providing 200 l/h at 8 bar. Bio-fuel can be delivered up to E100 (shortens lifetime!).

The FP 200-E is compatible with Gasoline and Diesel fuel.

Downloads

Features

  • >200 l/h
  • No internal pressure limiting valve
  • 750 g
  • Fuel lines screwed
  • Internal pre-filter on suction side with 300 µm

Application

Fuel pressure

Max. 8,0 bar

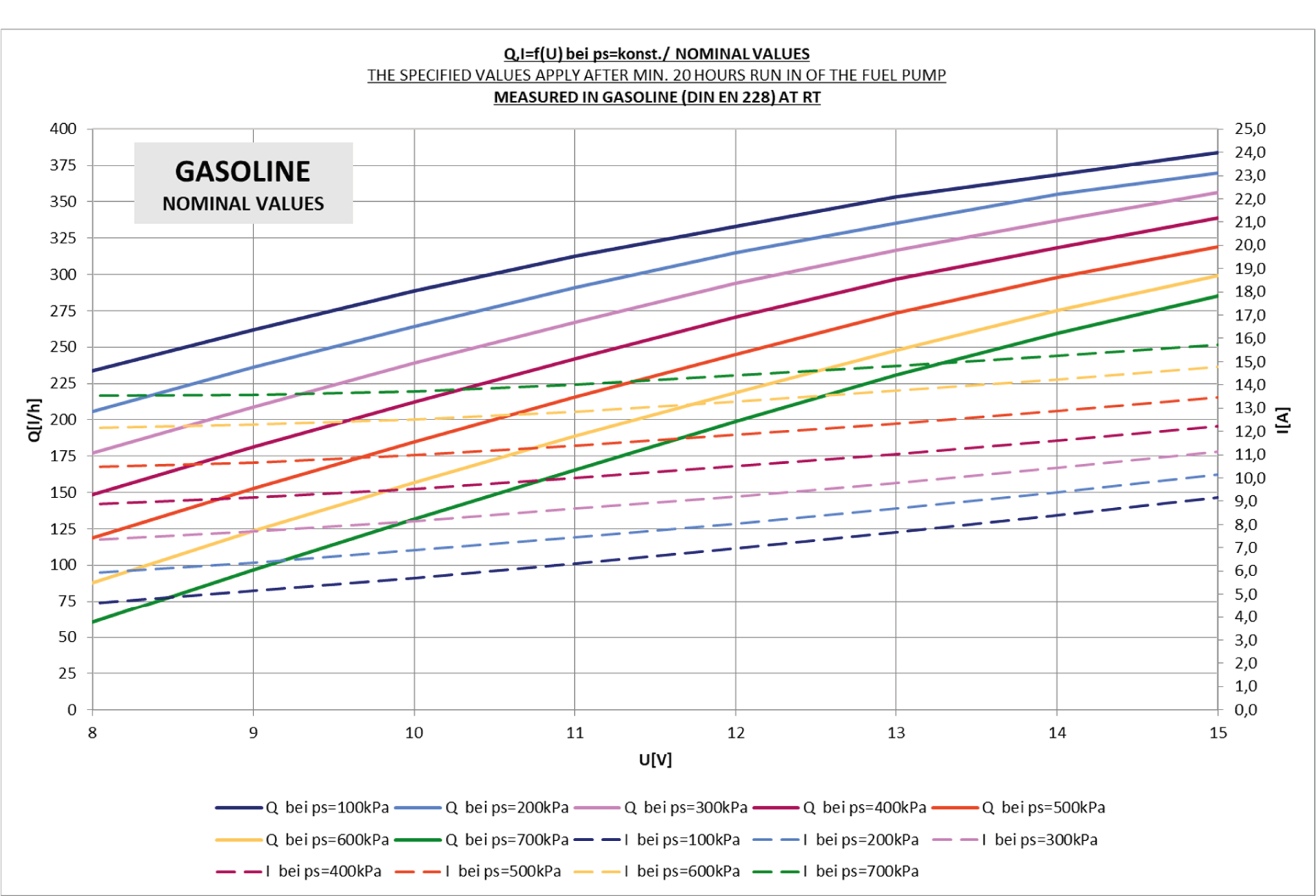

Gasoline delivery rate at 8 bar and 22°C

>200 l/h

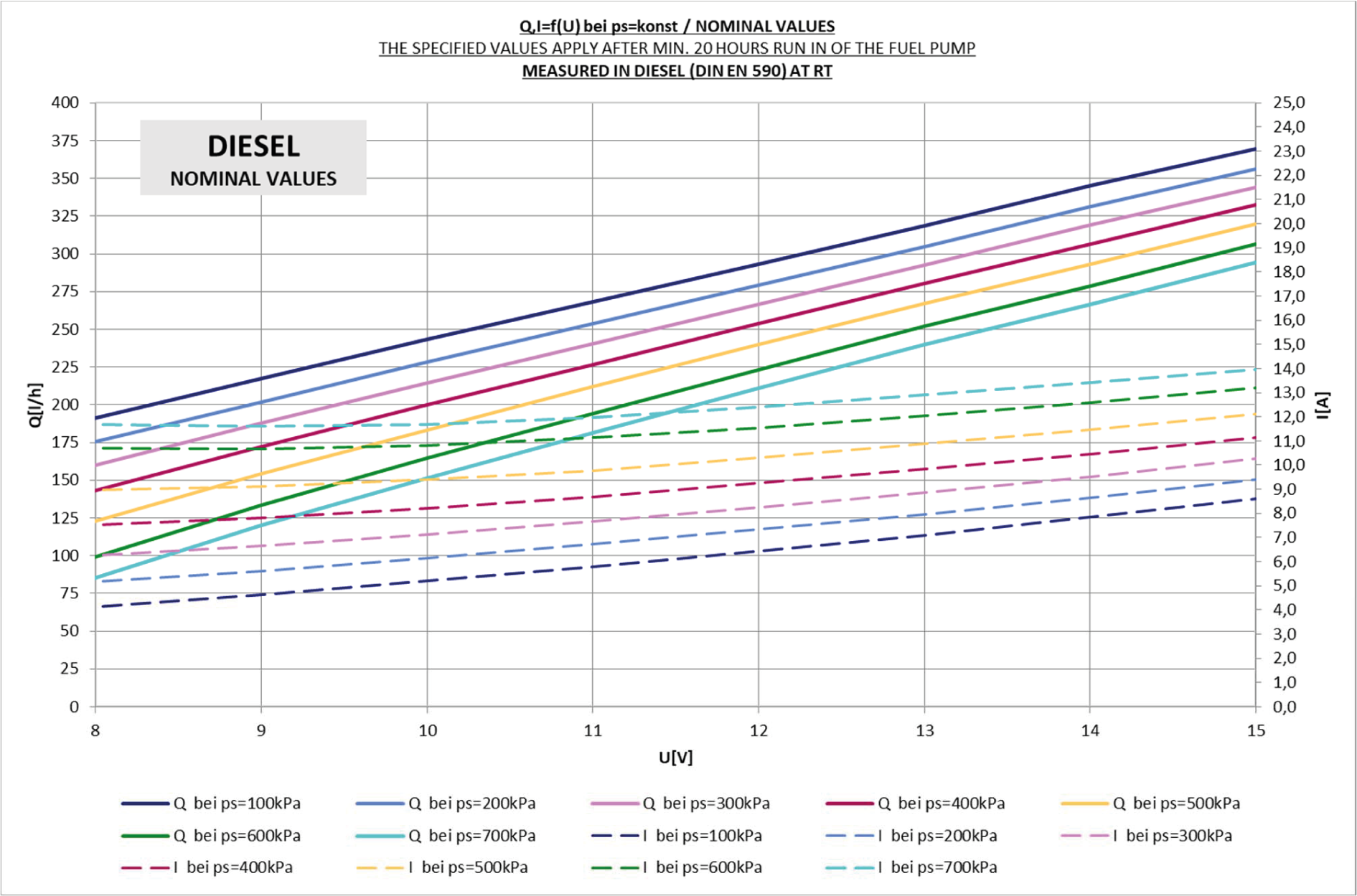

Diesel delivery rate at 7 bar and 22°C

>180 l/h

Pressure limiting valve

Without. Subsequent assembly possible on pressure side by customer

Fuel compatibility

Up to E100 with shorter lifetime

Diesel compatibility

Given

Operating temperature range

-40 to 80°C
≤90°C for ≤5 h over 1.000 h lifetime
≤105°C for ≤1 h over 50 h lifetime

Storage temperature range

-30 to 60°C

Max. vibration
IEC 60068-2-34

10 Hz 19,4 (m/s2)2/Hz
300 Hz 0,654 (m/s2)2/Hz
1.000 Hz 0,059 (m/s2)2/Hz

Technical Specifications

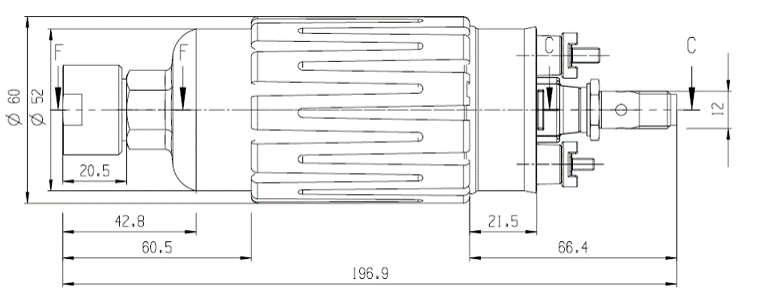

Mechanical Data

Diameter

60 mm

Length

197 mm

Weight

750 g
(864 g incl. cable kit)

Mounting

Clamping

Electrical Data

Supply voltage

6 to 15 V (26 V for 60 s)

Operating voltage

13 V

Load current at 8 bar and 22°C

< 20 A

Characteristic

Color

Silver

Non-return valve

External

Fuel filtering

External, on pressure side

Over-pressure valve

Without

Connectors and Wires

Electrical connector

+M4/-M5

Electrical mating connector

With ring wire M4 and M5

Mechanical connector intake side

M18x1.5

Mechanical connector pressure side

M12x1.5

Installation Notes

Up to E100 with shorter lifetime

For technical reasons the values may vary.

Please use within the specified limit values only.

Please find further application hints in the offer drawing at our homepage.

Be careful, there is no over-pressure valve inside.

Ordering Information

Fuel Pump FP 200-E

Order number: 0580.B00.12U-50

Legal Restrictions

The sale of this product in Mexico is prohibited.

Due to embargo restrictions, sale of this product in Russia, Belarus, Iran, Syria, and North Korea is prohibited.
