Expansion Board Digital Multichannel Potentiometer

The Digital Multichannel Potentiometer Expansion Board extends the functionality of the µLC Test System by seamless integration into an existing device. It offers four independently configurable, galvanically isolated digital potentiometers with a wide range of resistance and excellent accuracy. All four channels feature individual protection by an automatic overcurrent shutdown with automatic retry.



Features

  • 4 independent, galvanically isolated, AC-capable channels
  • Wide range of resistance: 50 Ohm to 500 kOhm
  • High accuracy and 19 Bit Resolution

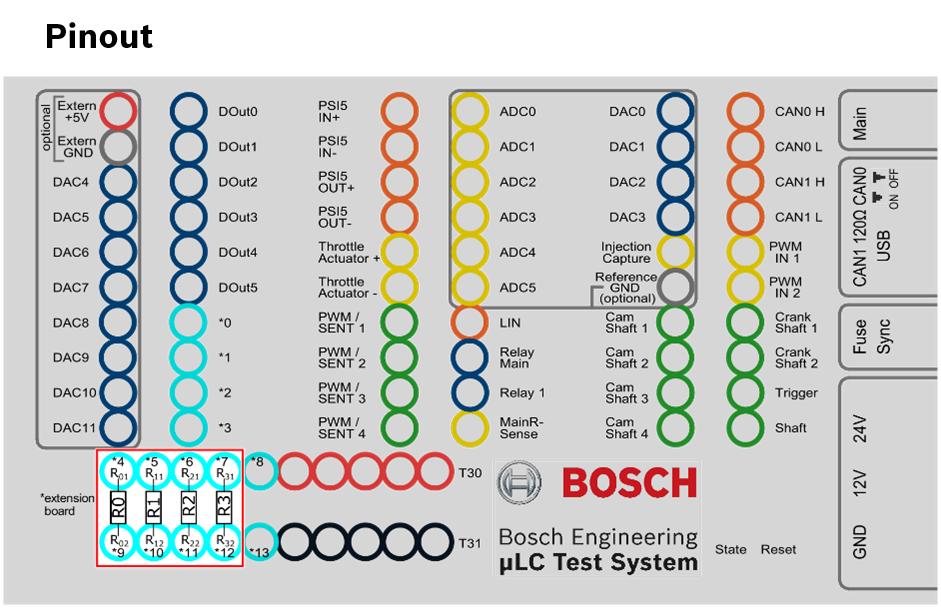

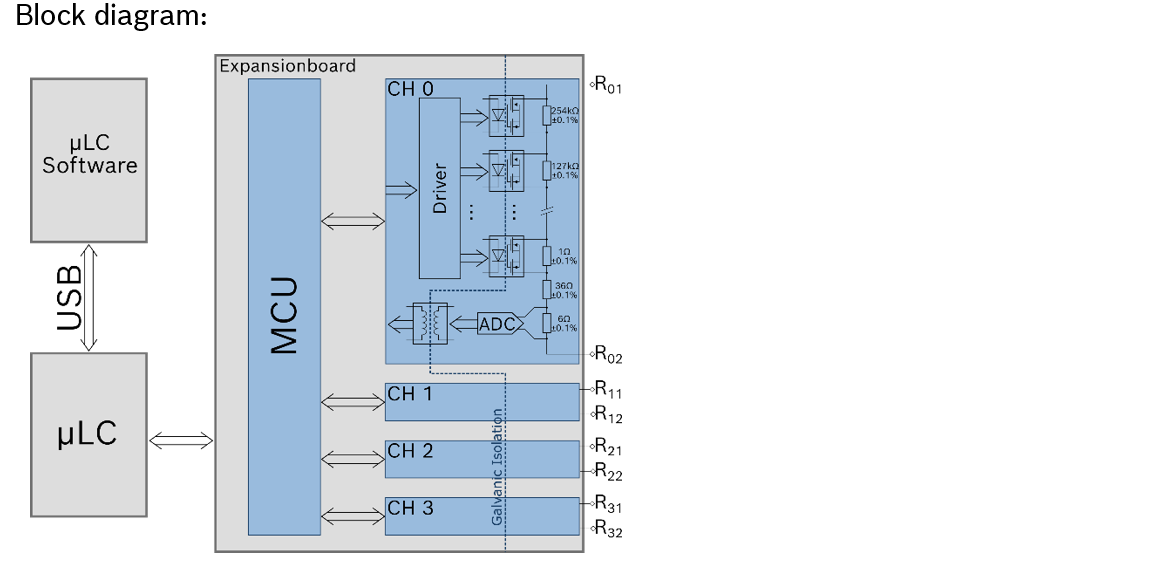

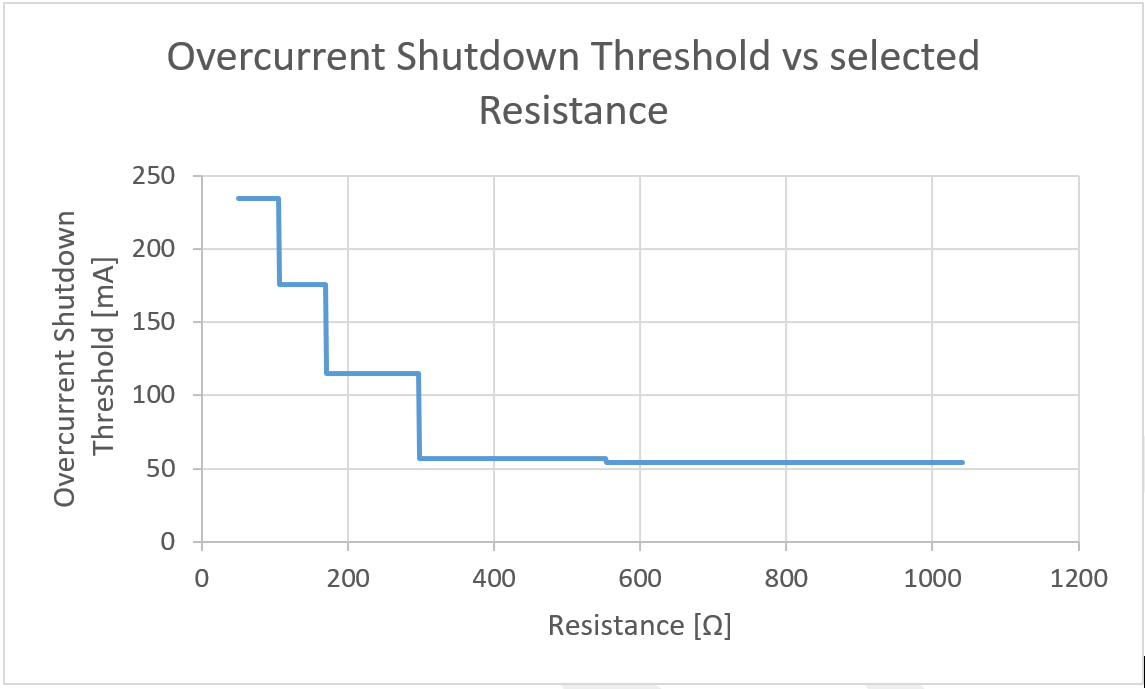

  • Overcurrent protection
  • Non-mechanical solid-state switches

Application

Emulating Sensor Data

Designed to work for example with the sensor interface L9966 (FlexI)

Technical Specifications

Maximum voltage on any input referred to µLC-GND

-24 to 24 V

Electrical Characteristics

Parameter

Value

Unit

Minimum Resistance

50

Ohm

Maximum Resistance

500

kOhm

Step Size

1

Ohm

Resolution

19

Bit

Accuracy

Parameter

Value

Entire Range

±0.5 Ohm ±1 %

Ordering Information

Expansion Board Digital Multichannel Potentiometer

Order number: F02U.V03.129-01
