Injection Valve EV 14

Injection Valve EV 14

EV 14 injection valves are the latest revision of the EV 6 injection valve technology. EV 14 xT are the latest revision of the EV 12.

EV 14 is designed for a wide range of flow rates and spray patterns. Compact size and three standard versions simplify mounting in a variety of applications.

Product Highlights

Features

  • Flow rate at 3 bar: up to 1,000 g/min (n-heptane)
  • Max. 8 bar
  • Conical spray or 2-spray
  • With or without extension
  • Spray angle 15 to 85°

Downloads

Literature

Product Details

Mechanical Data
Mechanical Data
System pressure
Max. 5 bar (8 bar for motorsport use)
Mechanical Data
Weight
≤ 30 g
Mechanical Data
Installation lengths
33.6, 48.65 or 60.65 mm
Mechanical Data
Fuel input
Top-feed injector
Mechanical Data
Operating temperature
-40 to 110°C
Mechanical Data
Permissible fuel temperatures
≤ 70°C
Mechanical Data
Climate-proof corresponding to saline fog test DIN 50 021
Mechanical Data
Housing design
Compact (K), Standard (S), Long (L)
Mechanical Data
Spray type
C (Conical Spray) or E (2-Spray)
Mechanical Data
Flow rate at 3 bar (n-heptane)
151 to 1,462 cm³/min
103.5 to 1,000 g/min
Mechanical Data
Spray angle α
15 to 85°
Mechanical Data
Bent angle γ
0 to 15°
Mechanical Data
Coil resistance
See variations
Mechanical Data
Fuel compatibility
E85
Use with different media is not permitted.
Electrical Data
Electrical Data
Power supply
6 to 16.5 V
Connectors and Wires
Connectors and Wires
Connectors
Jetronic, Sumitomo, Motorsport connectors
.
Further variations are available on request.

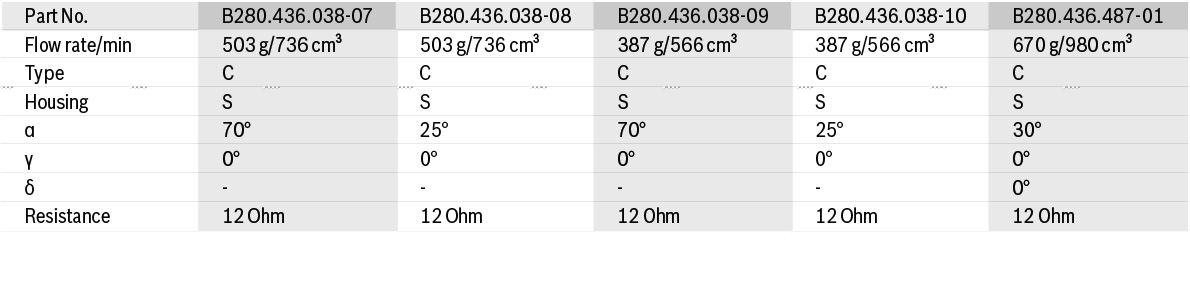

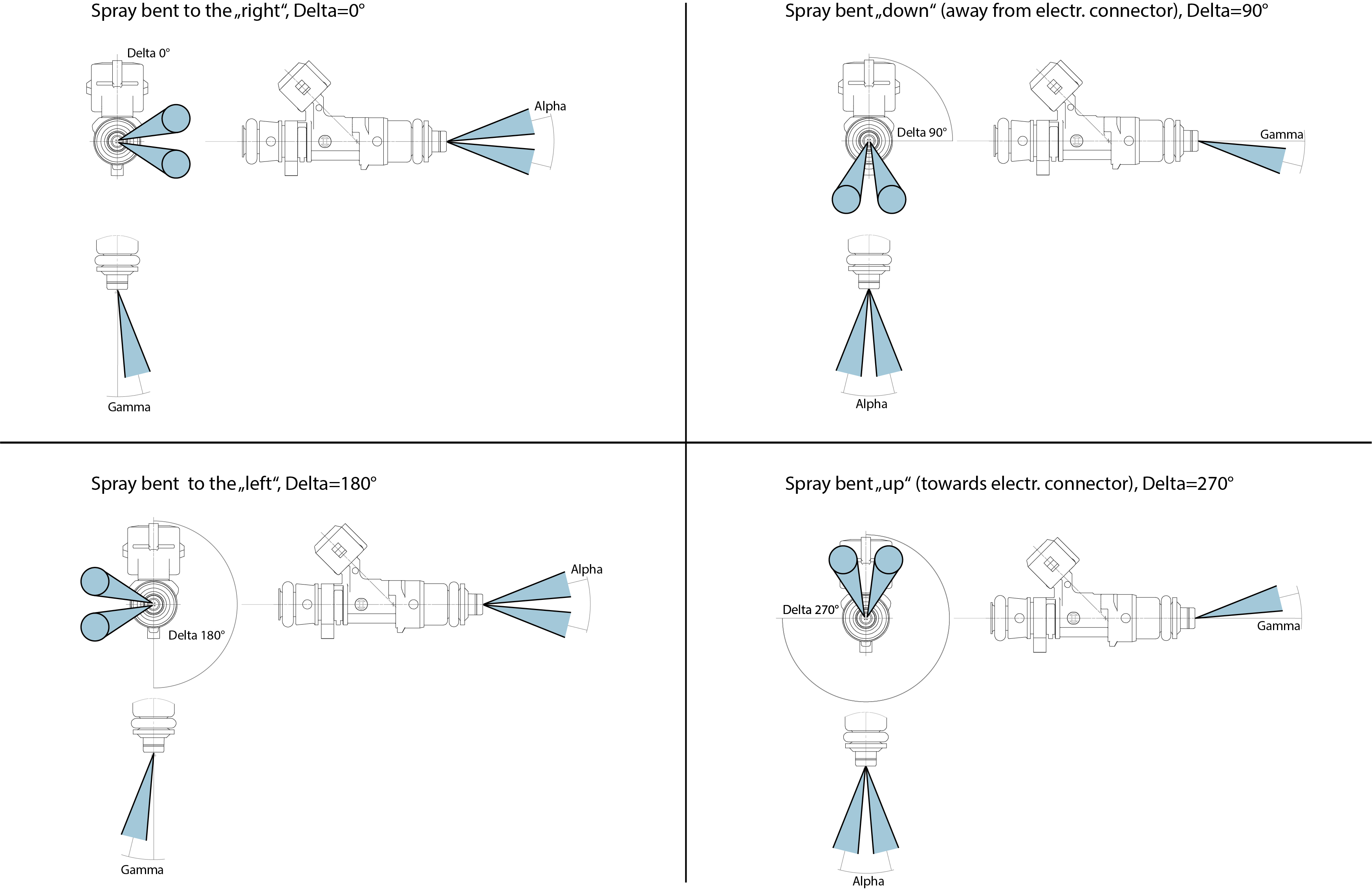

Delta Angles
.
.

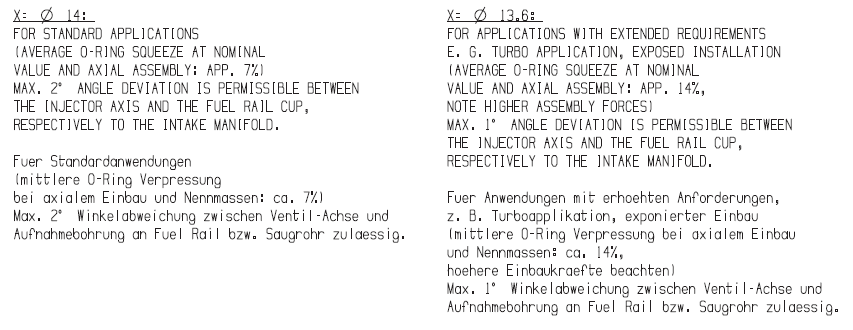

Mounting Instructions
Mounting Instructions

Further Information

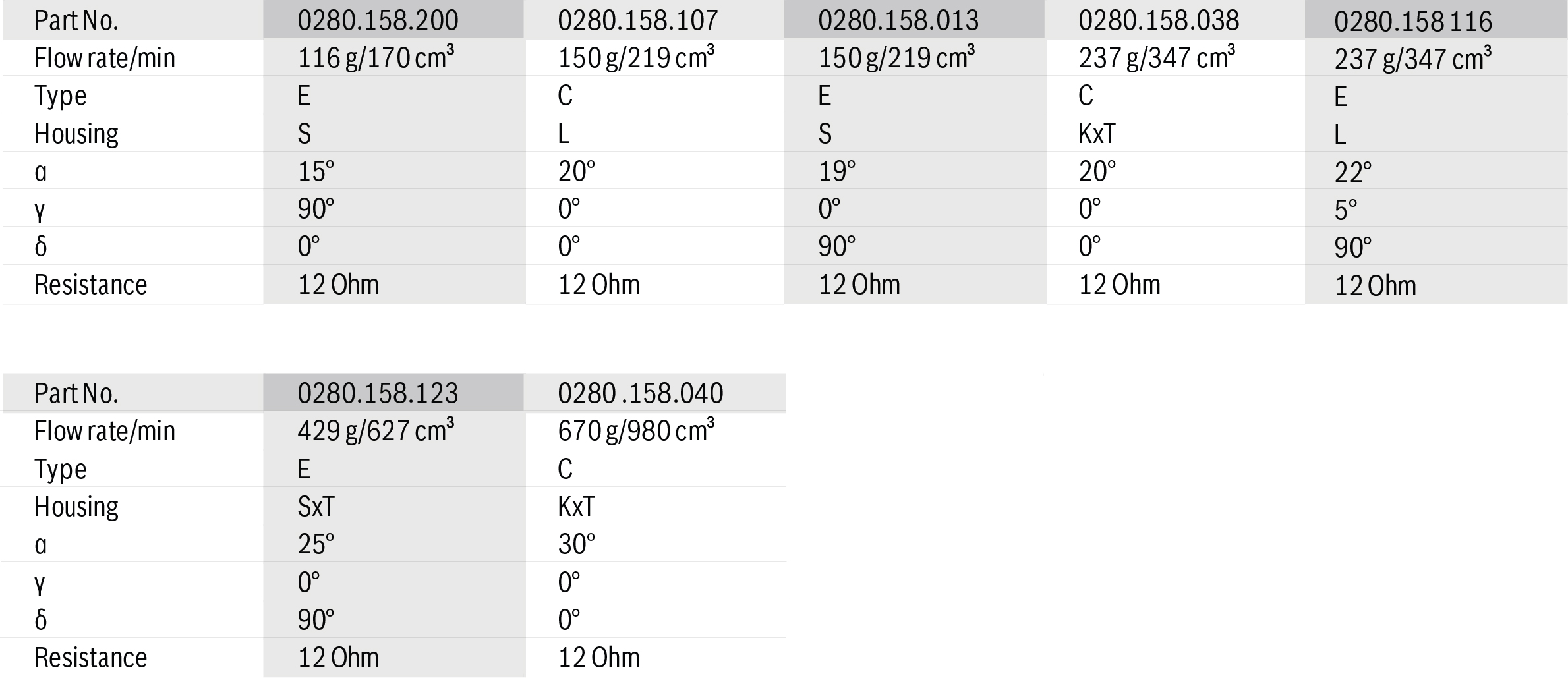

Please ask for more information before ordering.

EV 14 ES, 116 g/min n-heptane
Order number: 0280.158.200

EV 14 CL, 150 g/min n-heptane
Order number: 0280.158.107

EV 14 ES, 150 g/min n-heptane
Order number: 0280.158.013

EV 14 CKxT, 237 g/min n-heptane
Order number: 0280.158.038

EV 14 EL, 237 g/min n-heptane
Order number: 0280.158.116

EV 14 CS, 387 g/min n-heptane
Order number: B280.436.038-09

EV 14 CS, 387 g/min n-heptane
Order number: B280.436.038-10

EV 14 ESxT, 429 g/min n-heptane
Order number: 0280.158.123

EV 14 CS, 503 g/min n-heptane
Order number: B280.436.038-08

EV 14 CS, 503 g/min n-heptane
Order number: B280.436.038-07

EV 14 CKxT, 670 g/min n-heptane
Order number: 0280.158.040

EV 14 CS, 670 g/min n-heptane
Order number: B280.436.487-01

EV 14 ES, 697 g/min n-heptane
Order number: B280.436.469-01

Accessories

Clip for locking bush of plastic
Order number: 2431.314.021

Clip for locking bush of steel
Order number: 2431.314.018
