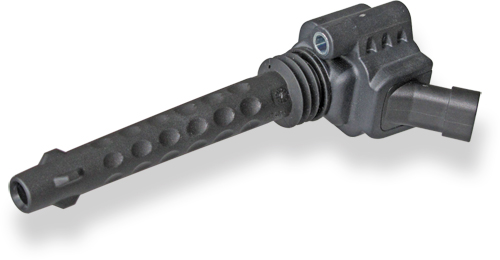

Ignition Coil P65

Ignition Coil P65

This single fire coil is a low cost concept, designed to get connected to the spark plug via a high voltage wire. The high voltage connector is specified according to the SAE standard.

The performance of the coil fulfills the demands of modern GDI engines.

The main benefits of this product are the high packaging flexibility and its high electrical performance at low costs.

Product Highlights

Features

  • Max. 35 kV
  • Min. 65 mJ
  • Max. 10,000 1/min
  • Developed for GDI engines

Downloads

Literature

Product Details

Spark energy
≥ 65 mJ
Spark energy
Primary current
≥ 65 mJ
≤ 7.5 A
Spark energy
Operating temperature range at outer core
≥ 65 mJ
-20 to 140°C
Spark energy
Storage temperature range
≥ 65 mJ
-40 to 100°C
Spark energy
Max. vibration
≥ 65 mJ
≤ 250 m/s2at 5 to 2,500 Hz
Mechanical Data
Mechanical Data
Length
180 mm
Mechanical Data
Weight w/o wire
225 g
Mechanical Data
Mounting
Screw fastening
Mechanical Data
Fits to spark plugs with a ceramic diameter of 10 mm
Electrical Data
Electrical Data
Primary resistance
570 mOhm
Electrical Data
Secondary resistance
Incapable of measurement
Electrical Data
High voltage rise time
≤ 1.9 kV/µs
Electrical Data
Max. high voltage at
1 MOhm || 10 pF
≤ 35 kV
Electrical Data
Spark current
≤ 74 mA
Electrical Data
Spark duration at 1 kV || 1 MOhm
≤ 2.0 ms
Electrical Data
Noise suppression
Inductive and 1 kOhm resistance
Electrical Data
Suppression diode / EFU
Integrated
Characteristic
Characteristic
Measured with power stage
IGBT IRG4BC40S (Uce=600 V)
Connectors and Wires
Connectors and Wires
Connector
Tyco AMP
Connectors and Wires
Mating connector
D261.205.350-01
Connectors and Wires
Pin 1
Engine GND
Connectors and Wires
Pin 2
Ubatt
Connectors and Wires
Pin 3
ECU ignition power stage
Characteristic dwell times [ms]
Characteristic dwell times [ms]
U batt
I primary
Characteristic dwell times [ms]
5.0 A
6.0 A
7.0 A
7.5 A
8.0 A
8.5 A
Characteristic dwell times [ms]
6 V
8.74
18.5
Characteristic dwell times [ms]
8 V
4.5
6.4
9
10.8
13.9
Characteristic dwell times [ms]
10 V
3.1
4.2
5.4
6
6.6
7.2
Characteristic dwell times [ms]
12 V
2.36
3.1
3.88
4.25
4.63
4.92
Characteristic dwell times [ms]
14 V
1.9
2.48
3.05
3.32
3.57
3.77
Characteristic dwell times [ms]
16 V
1.61
2.06
2.53
2.73
2.93
3.08
Characteristic dwell times [ms]
18 V
1.55
2
2.43
2.62
2.81
2.95
Characteristic dwell times [ms]
20 V
1.39
1.77
2.16
2.33
2.48
2.6
Characteristic dwell times [ms]
22 V
1.22
1.54
1.88
2.02
2.15
2.26
Characteristic dwell times [ms]
24 V
0.97
1.23
1.49
1.6
1.71
1.78
Characteristic dwell times [ms]
Measured values are without loom resistance. Loom resistance must be less than the primary resistance. The needed dwell time is to be verified through current measurement
Spark energy and provided high voltage
Spark energy and provided high voltage
I prim.
Spark energy
-duration
-current
Hi voltage
Spark energy and provided high voltage
5 A
37.8 mJ
1.46 ms
49 mA
24.3 kV
Spark energy and provided high voltage
6 A
54.5 mJ
1,74 ms
59 mA
28.9 kV
Spark energy and provided high voltage
7 A
69.8 mJ
1.97 ms
69 mA
33.2 kV
Spark energy and provided high voltage
7.5 A
77.6 mJ
2.04 ms
74 mA
35.8 kV
Spark energy and provided high voltage
8 A
83.0 mJ
2.11 ms
77 mA
37.7 kV
Spark energy and provided high voltage
8.5 A
88.0 mJ
2.16 ms
81 mA
39.0 kV

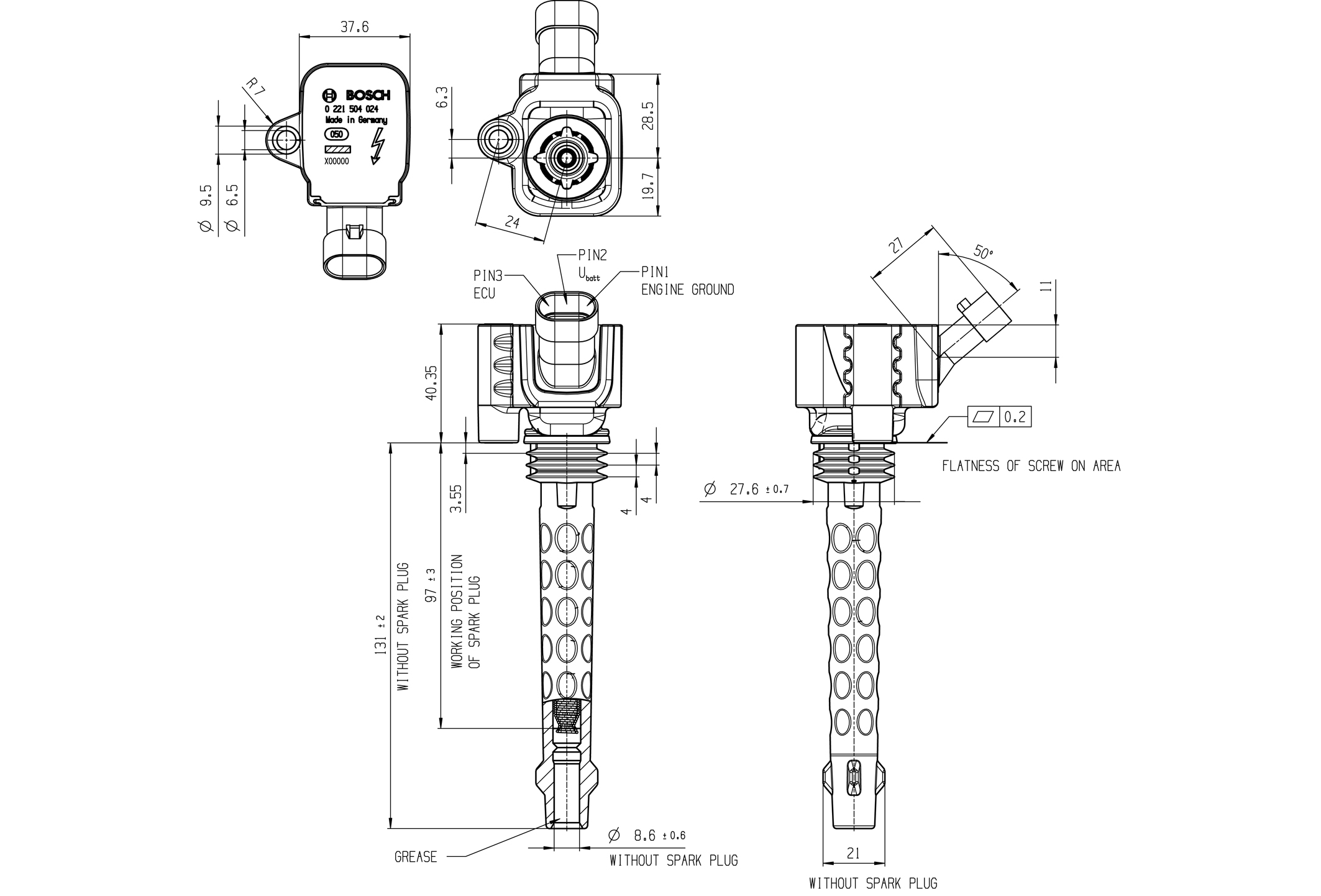

See Offer Drawing for further information

Further Information

During mounting of the spark plug please pay attention that full clamping and proper contacts are made to ensure safe connection between coil and spark plug.
During mounting of the spark plug please pay attention that full clamping and proper contacts are made to ensure safe connection between coil and spark plug.
The coil P65 has no integrated transistor and requires an ECU with internal ignition power stages, e.g. IGBT IRG4BC40S or BIP.
During mounting of the spark plug please pay attention that full clamping and proper contacts are made to ensure safe connection between coil and spark plug.
For technical reasons the values of the coils may vary.
During mounting of the spark plug please pay attention that full clamping and proper contacts are made to ensure safe connection between coil and spark plug.
Please regard the specified limit values.
During mounting of the spark plug please pay attention that full clamping and proper contacts are made to ensure safe connection between coil and spark plug.
Please find further application hints in the offer drawing at our homepage.
During mounting of the spark plug please pay attention that full clamping and proper contacts are made to ensure safe connection between coil and spark plug.
In case of ignition-caused malfunctions, please use screened sensor wires.
Design Note
Design Note
We strongly recommend the design of the spark plug shaft has to ensure that there are no sharp edges in the shaft geometry due to design or machining. Only in compliance with this recommendation, a proper function can be ensured.

Ignition Coil P65
Order number: 0221.504.024
