Ignition Coil C90i-E8

This single fire coil was developed for the use e.g. in GDI (turbocharged) high performance engines. It is designed for direct cylinder head mounting.

For this single fire coil the customer can define the length of the spark plug connector.

The main benefits of this high performance coil are its high energy capability and a very good provided high voltage.

Downloads

Features

  • Max. 40 kV
  • Min. 90 mJ
  • Max. 5.0 kV/µs
  • Max. 15,000 1/min
  • Fits to spark plugs with a ceramic diameter of 8 mm

Application

Spark energy

≥ 90 mJ

Primary current

≤ 16 A

Operating temperature range outer core

0 to 160°C

Storage temperature range

-40 to 100°C

Max. vibration

≤ 480 m/s2 at 50 to 2,000 Hz

Technical Specifications

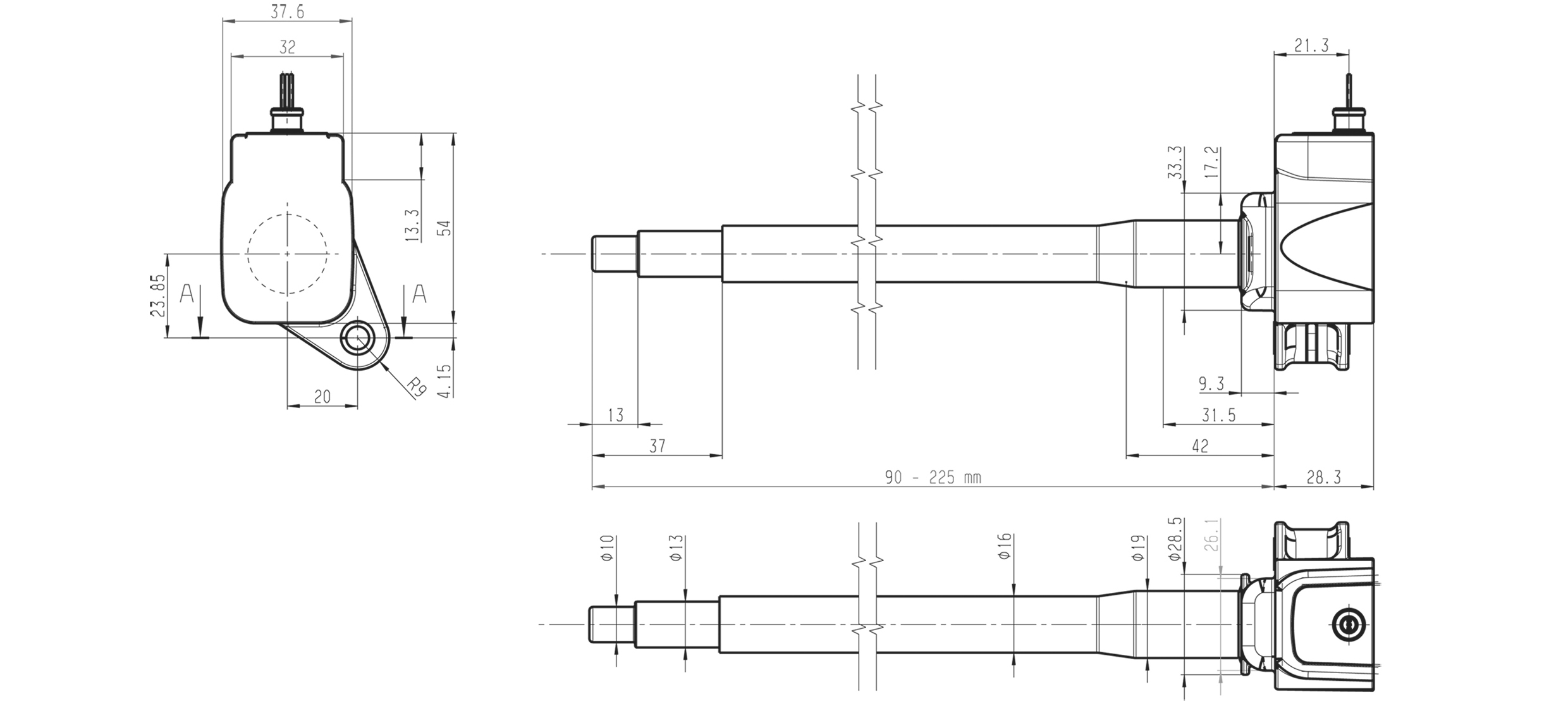

Mechanical Data

Length

80 to 225 mm, depending on customer requirements

Weight w/o wire

< 270 g

Mounting

Screw fastening

Fits to spark plugs with a ceramic diameter of 8 mm

Electrical Data

Primary resistance

185 mOhm

Secondary resistance

Incapable of measurement

High voltage rise time

≤ 5.0 kV/µs

Max. high voltage at
1 MOhm || 10 pF

≤ 40 kV

Spark current

≤ 160 mA

Spark duration at 1 kV || 1 MOhm

≤ 1.1 ms

Noise supression

Inductive and 1 kOhm resistance

Suppression diode / EFU

Internal

Characteristic

Measured with power stage

IGBT IRG4BC40S (Uce=600 V)

Connectors and Wires

Connector

On request

Mating connector

On request

Pin 1

Ubatt red

Pin 2

ECU ignition power stage blue

Pin 3

Engine GND black

Pin 4

Ionic current signal white

Wire length

100 cm

Wire size

AWG 20/22

Various motorsport and automotive connectors are available on request.

Please specify the required wire length and the length of the spark plug connector with your order

Characteristic dwell times [ms]

U batt

I primary



10 A

12 A

15 A

16 A

17 A

20 A

6 V

3.2

4.5

7.6

9.8





8 V

1.88

2.49

3.47

3.79

4.10



10 V

1.35

1.76

2.34

2.51

2.67

3.05

12 V

1.06

1.35

1.77

1.89

2.00

2.24

14 V

0.87

1.11

1.43

1.52

1.60

1.79

16 V

0.74

0.93

1.20

1.28

1.34

1.49

16.5 V

0.71

0.90

1.15

1.23

1.29

1.43

18 V

0.64

0.81

1.03

1.10

1.15

1.27

Measured values are without loom resistance. Loom resistance must be less than the primary resistance. The needed dwell time is to be verified through current measurement

Dwell time

Spark energy and provided high voltage

I prim.

Spark energy

-duration

-current

Hi voltage

10 A

41.4 mJ

0.74 ms

100 mA

31.6 kV

12 A

59.5 mJ

0.882 ms

122 mA

37.4 kV

15 A

84.4 mJ

1.034 ms

148 mA

45.7 kV

16 A

92.6 mJ

1.07 ms

158 mA

46 kV

17 A

100 mJ

1.09 ms

165 mA

46 kV

20 A

115 mJ

1.16 ms

190 mA

46 kV

Spark energy

Installation Notes

During mounting of the spark plug please pay attention that full clamping and proper contacts are made to ensure safe connection between coil and spark plug.

This coil is only for use with engine control units having an integrated ignition power stage, e.g. IGBT IRG4BC40S or BIP.

For technical reasons the values of the coils may vary.

Please regard the specified limit values (see “Electrical Data”).

Usage above Iprim = 16 A or 40 kV may reduce the lifetime.

Please find further application hints in the offer drawing at our homepage.

In case of ignition-caused malfunctions, please use screened sensor wires.



Design Note

We strongly recommend the design of the spark plug shaft has to ensure that there are no sharp edges in the shaft geometry due to design or machining. Only in compliance with this recommendation, a proper function can be ensured.

Ordering Information

Ignition Coil C90i-E8

Order number: depending on customer requirements

Legal Restrictions

The sale of this product in Mexico is prohibited.

Due to embargo restrictions, sale of this product in Russia, Belarus, Iran, Syria, and North Korea is prohibited.
