Ignition Module IM 3.2

This module is an external ignition power stage capable of supplying up to three non-transistorized ignition coils.

The IM input signal should be supplied by an ECU with ignition signal outputs in the range of 10 to 20 mA, e.g. MS 6.

The IM unit combines the robustness of a high quality production part with good electrical performance to provide an ideal solution for adapting non-transistorized coils to an ECU without internal ignition driver stages.

Downloads

Literature

Features

  • Max. 3 cylinders
  • 47 g
  • Fits to all ECUs without internal ignition power stage like MS 6
  • Especially adapted for Coils P50(-M) and P65

Application

Primary current

≤ 8.5 A

Clamp voltage

380 ± 30 V

Operating temperature range at measuring point

-40 to 120°C

Storage temperature range

-40 to 130°C

Max. rpm (ensure chilled mounting position)

8,000

Max. vibration

400 m/s2 at 5 to 2,500 Hz

Technical Specifications

Mechanical Data

Size

71 x 48 x 21 mm

Weight w/o wire

47 g

Mounting

2 x M4 screws with spring washer

Operating temperature

-40 to 110°C

Permissible fuel temperatures

≤ 70°C

Electrical Data

UBatt typical

13.5 V

Voltage supply

6 to 16.5 V

IB high active on

min. 10 mA

IB low off

0 mA

IB

10 to 22 mA

IC typical

≤ 8.5 A

IC max. at TU < 120°C

< 10 A

UCE satt at IC = 5 A

< 3 V

UCE satt at IC max

< 9 V

Characteristic

Characteristic dwell time

See characteristic dwell time from the ignition coil used

Internal transistor

Triple Darlington

Connectors and Wires

Connector

Bosch Jetronic 7-pole

Mating connector

7-pole Jetronic

F02U.B00.252-01

Pin 1

Collector transistor 1

Pin 2

Basis transistor 1

Pin 3

Collector transistor 2

Pin 4

Gnd

Pin 5

Basis transistor 2

Pin 6

Collector transistor 3

Pin 7

Basis transistor 3

Installation Notes

This ignition module can be used with Coils P50(-M) and P65 or comparable coils.

Please ensure that the connectors are safe from water.

The IM has to be mounted onto a cooling body. The mounting surface needs a planarity of 0.2 mm.

A heat conductive paste has to be used.

This ignition module is designed for use with engine control units which have no integrated ignition transistor.

Please observe the specified limit values.

Please do not activate more than one ignition output stage parallel within a module.

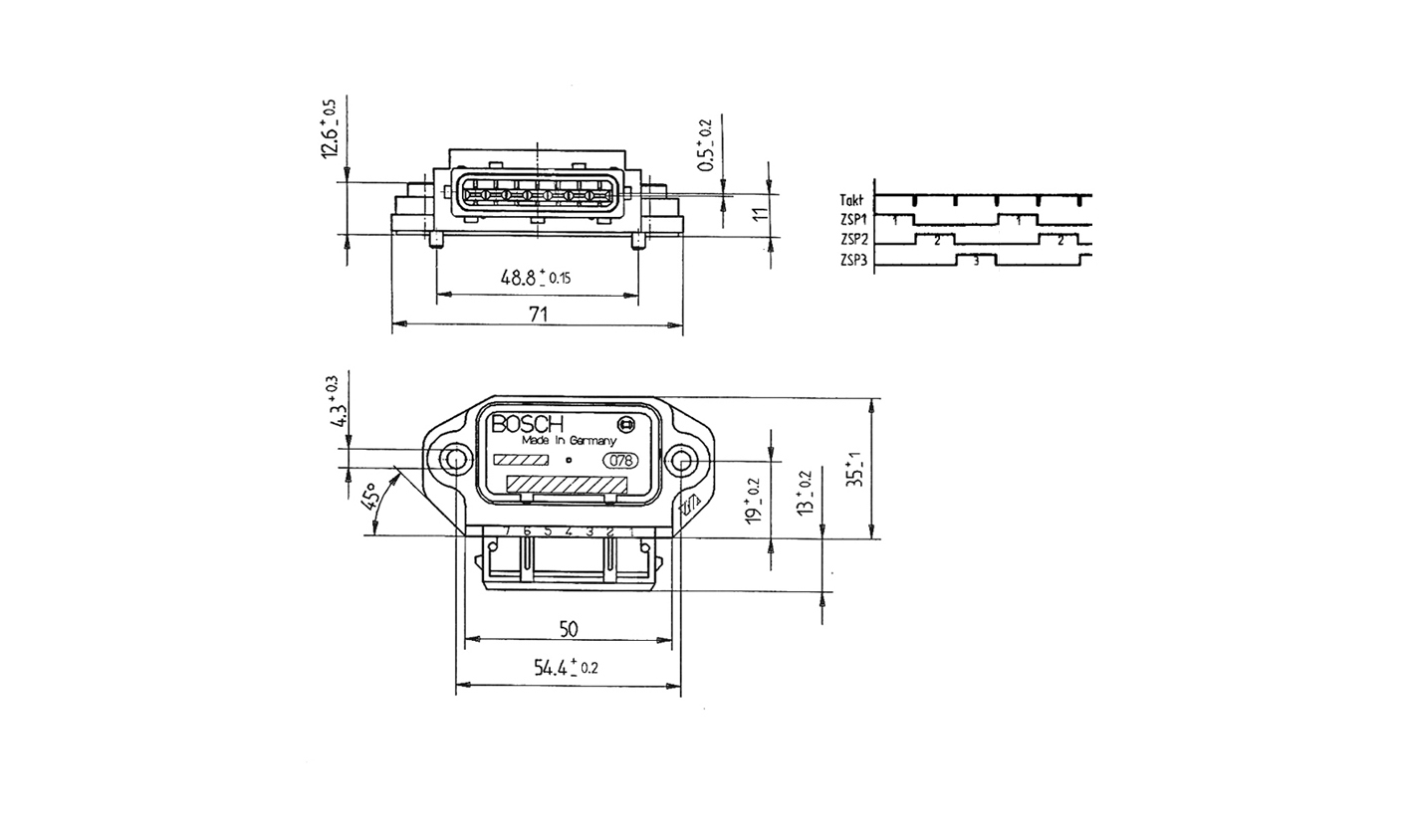

Please find further application hints in the offer drawing at our homepage.

Ordering Information

Ignition Module IM 3.2

Order number: 0227.100.203
