Speed Sensor Hall-Effect Mini-HA-P sealed

This sensor is designed for incremental measurement of rotational speed (e.g. camshaft, crankshaft and wheelspeed).

Due to the rotation of a ferromagnetic target wheel in front of the Mini-HA-P sealed, the magnetic field is modulated at the place of the Hall probe. A Hall-effect sensor element with integrated signal conditioning circuit detects this change and generates a digital output signal.

The main feature and benefit of this sensor is the combination of a high quality production part and a robust design with a very small housing.

Downloads

Features

  • Max. frequency: ≤ 10 kHz
  • Air gap: 0.2 to 1.5 mm
  • Bore diameter: 16 mm
  • Max. vibration: 1,200 m/s² at 10 Hz to 2 kHz
  • Weight w/o wire: 20 g

Application

Application

Speed

Max. frequency

≤ 10 kHz

Target wheel air gap

0.2 to 1.5 mm

Temperature range

-40 to 150°C

Output circuit

Open collector for 1 kOhm

Output type

Active low

External magnetic fields

≤ 0.3 mT

Max. vibration

1,200 m/s2 at 10 Hz to 2 kHz

Technical Specifications

Variations

Connector

ASL606-05PC-HE

Without connector

Mating connector

ASL006-05SC-HE
F02U.000.228-01

-

Pin 1

US

US (red)

Pin 2

Gnd

Sig (green)

Pin 3

Sig

Gnd (black)

Pin 4

Nc

-

Pin 5

Nc

-

Wire length L

10 - 27 cm

27 cm

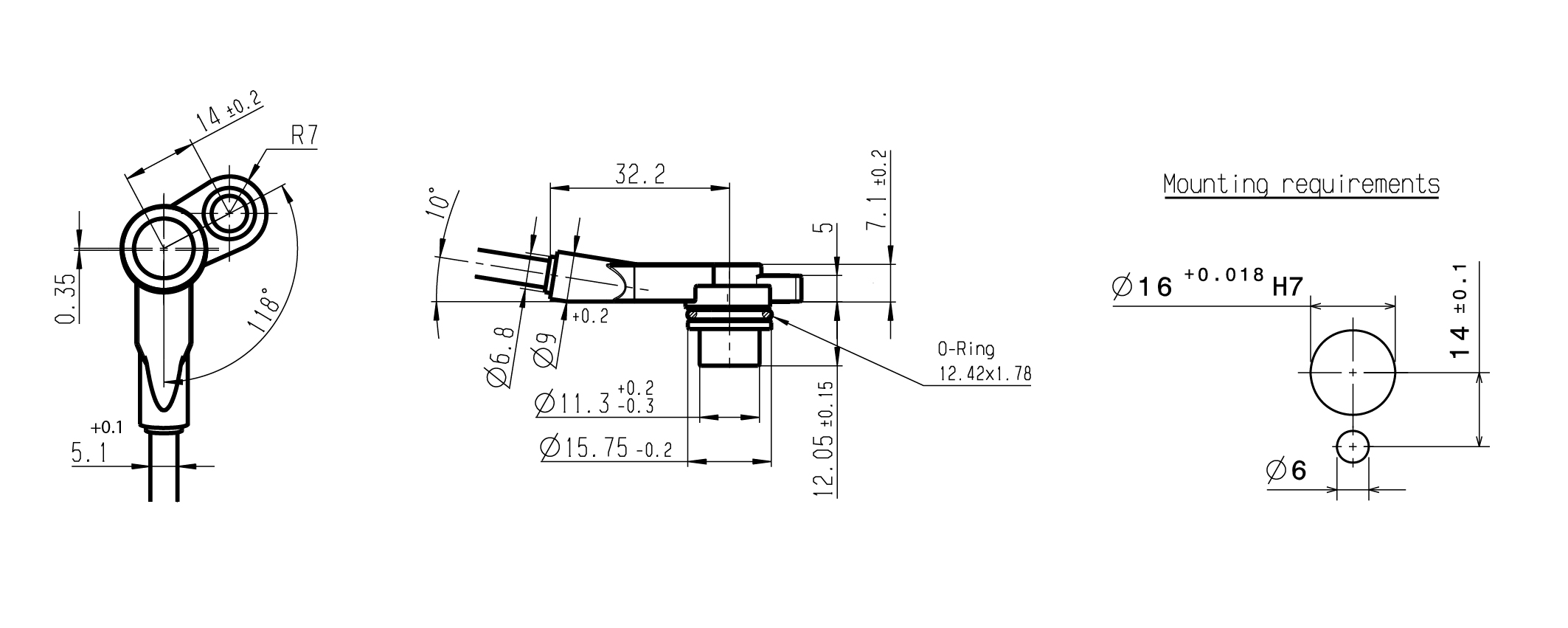

Mechanical Data

Weight w/o wire

19.2 g

Mounting

With screw 1 x M6

Bore diameter

16 mm

Installation depth L2

12 mm

Tightening torque

8 Nm

Electrical Data

Power supply

5 to 18 V

Current IS

10 mA

Characteristic

Accuracy repeatability of the falling edge of tooth

< 3 % (≤6 kHz)

< 5 % (≤10 kHz)

Signal output

0.4 V to < US

Environment

Target wheel diameter D

162.34 mm

Thickness t

12.5 mm

Width of teeth b1

3.8 mm

Width of gap b2

4.7 mm

Width of sync. gap b3

20.79 mm

Depth of teeth h

3.4 mm

Number of teeth

60-2

Connectors and Wires

Connector

Please see Variations

Sleeve

HT wire ø 5.2 mm

Wire size

AWG 20

Wire length L

Please see Variations

Various motorsport and automotive connectors are available on request.

Please specify the required wire length with your order.

Installation Notes

The Mini-HA-P sealed can be connected directly to most control units and data logging systems.

Please avoid abrupt temperature changes.

For mounting please use only the integrated plug.

If a wheel with different dimensions is used (see Environment), the technical function has to be tested individually.

Please ensure that the environmental conditions do not exceed the sensor specifications.

Please find further application hints in the offer drawing at our homepage.

Safety Note

The sensor is not intended to be used for safety related applications without appropriate measures for signal validation in the application system.

Ordering Information

Speed Sensor Hall-Effect Mini HA-P sealed

Connector ASL606-05PC-HE

Order number: F02U.V00.500-01

Speed Sensor Hall-Effect Mini HA-P sealed

Without connector

Order number: F02U.V00.570-01

Legal Restrictions

Due to embargo restrictions, sale of this product in Russia, Belarus, Iran, Syria, and North Korea is prohibited.
