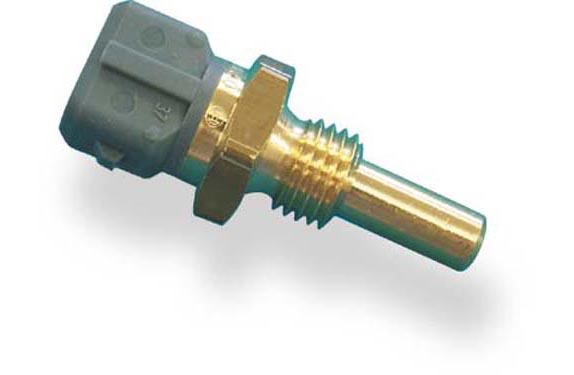

Temperature Sensor NTC M12

This sensor is designed to measure fluid temperature e.g. oil, water or fuel. This signal may be used as a control value for engine control units or as a measurement value which is logged in a data acquisition system.

The NTC sensing element has a negative temperature coefficient. This means, that with increasing temperature the conductivity rises. The sensing element of the temperature sensor is made of semiconducting heavy metal oxide and oxidized mixed crystals, which are equipped with a protective housing.

The main benefit of the sensor is the combination of a high quality production part and a robust and compact design.

Downloads

Features

  • Application: -40 to 130°C
  • Accuracy at 25°C: ± 1.4°C
  • Accuracy at 100°C: ± 3.4°C
  • Male thread: M12 x 1.5
  • Nominal resistance: 2.5 kOhm ± 5 % (at 20°C)

Application

Application

-40 to 130°C

Storage temp. range

0 to 100°C

Bio fuel compatibility

E85/M22

Max. vibration

600 m/s2

Technical Specifications

Mechanical Data

Male thread

M12x1.5

Wrench size

19 mm

Installation torque

25 Nm

Weight w/o wire

29 g

Sealing

Not included

Electrical Data

Characteristic

NTC

Nominal resistance at 20°C

2.5 kOhm ± 5 %

Characteristic

Accuracy at 25°C

± 1.4°C

Accuracy at 100°C

± 3.4°C

Response time tau 63 in still water

< 15 s

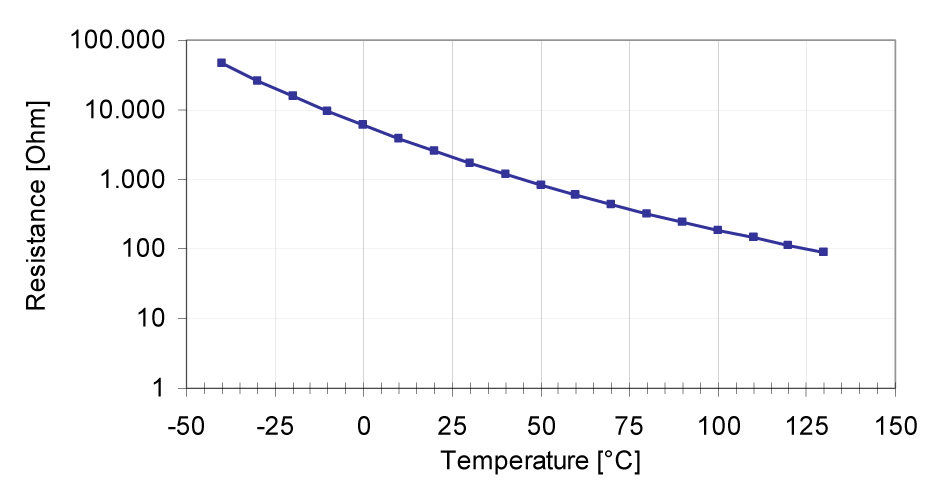

Characteristic Application

T [°C]

R [Ohm]

-40

45,313

-30

26,114

-20

15,462

-10

9,397

0

5,896

10

3,792

20

2,500

30

1,707

40

1,175

50

834

60

596

70

436

80

323

90

243

100

187

110

144

120

113

130

89

Connectors and Wires

Connector

Bosch Jetronic

Mating connector
2-pole Jetronic

D261.205.288-01

Pin 1

SIG+

Pin 2

SIG-

Installation Notes

The NTC M12 can be connected directly to most control units using a pull-up resistor (typically 1 or 3 kOhm).

Any mounting orientation is possible.

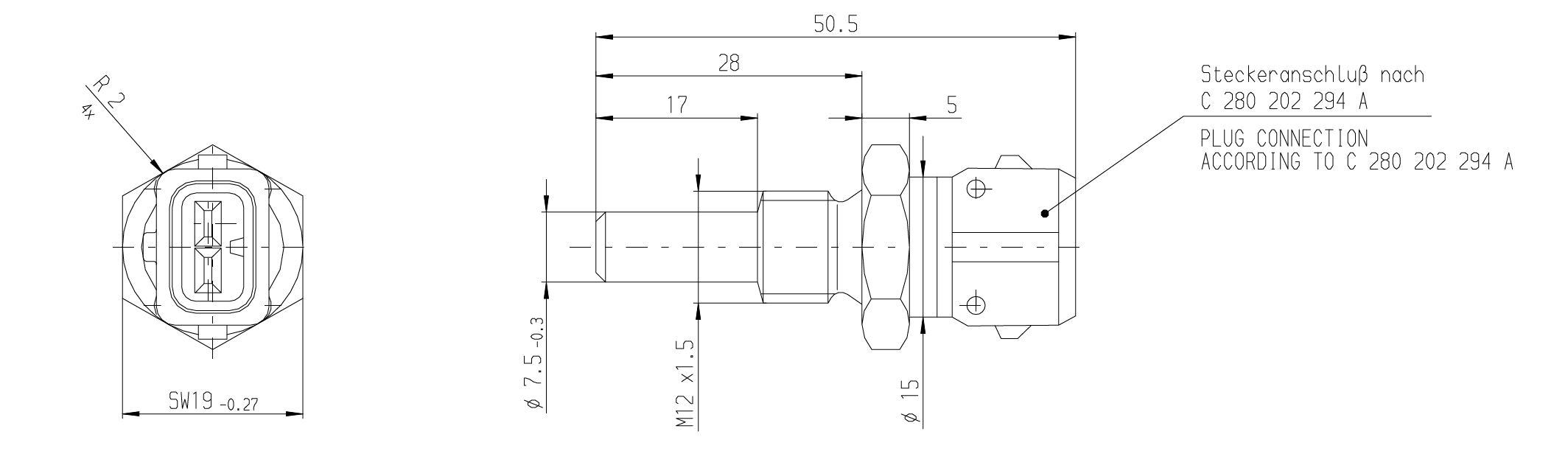

Please find further application hints in the offer drawing. www.bosch-motorsport.com

Free download of the sensor configuration file (*.sdf) for the Bosch Data Logging at our homepage.

Safety Note

The sensor is not intended to be used for safety related applications without appropriate measures for signal validation in the application system.

Ordering Information

Temperature Sensor NTC M12



Order number: 0280.130.026
