Pressure Sensor Combined PST 1/PST 3

This sensor is designed to measure absolute air pressure, especially the air box pressure of gasoline or Diesel engines plus temperature.

An integrated circuit combines a piezo-resistive sensor element and electronic systems for signal-amplification and temperature-compensation. The output of the sensor is an analog, ratio metric signal.

Two different pressure ranges are available (0.1 to 1.15 bar or 0.2 to 3 bar).

Downloads

Features

  • Pressure: 0.1 to 1.15 bar or 0.2 to 3 bar
  • Temperature: -40 to 150°C or -40 to 140°C
  • Power supply: 5 V
  • Weight: 24 g

Application

Application 1

0.1 to 1.15 bar or 0.2 to 3 bar (a)

Application 2

-40 to 130°C

Reference

Absolute

Max. pressure

5 bar

Operating temp. range

-40 to 130°C

Media temp. range

-40 to 130°C

Storage temp. range

0 to 40°C

Max. vibration

According to ISO 16750-3

Technical Specifications

Variations



PST 1 (0.1 to 1.15 bar)

PST 3 (0.2 to 3 bar)

Tolerance (FS) at US = 5 V

± 0.016 bar

± 0.030 bar

Tolerance (FS)

± 1.52 %

± 1.07 %

Sensitivity

4,048 mV/bar

1,518 mV/bar

Offset

-4.76 mV

96.43 mV

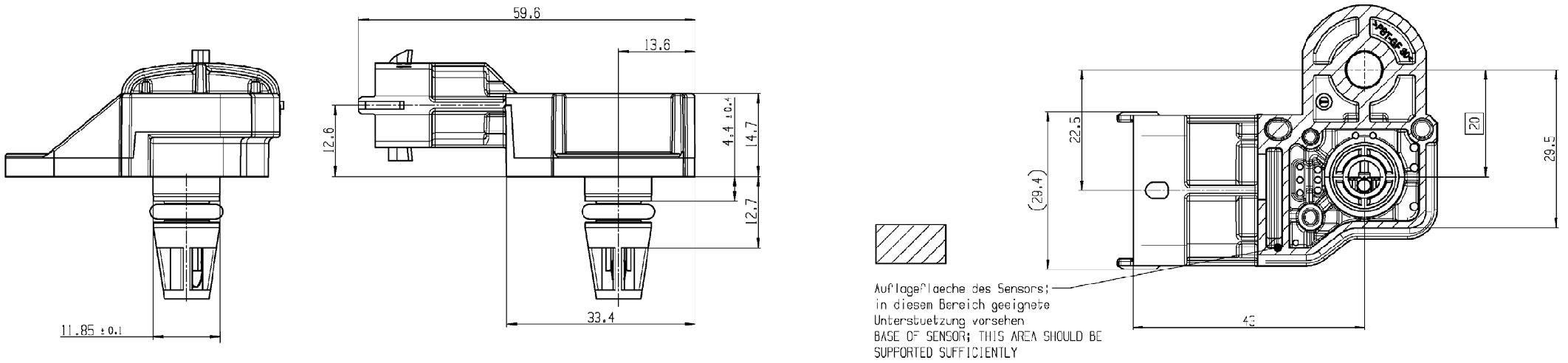

Mechanical Data

Mounting

M6

Fitting

12.05 ± 0.8 mm

Weight w/o wire

24 g

Sealing

O-ring 7.59 x 2.62 mm

Electrical Data

Power supply US

4.75 to 5.25 V

Max. power supply

16 V

Full scale output UA at 5 V

0.4 to 4.65 V

Current IS

9 mA

Characteristic 1

Response time T10/90

1 ms

Compensated range

10 to 85°C

Tolerance (FS) at US = 5 V

Please see variations

Tolerance (FS)

Please see variations

Sensitivity

Please see variations

Offset

Please see variations

Characteristic 2

T [°C]

R [Ohm]

-40

45,303

-30

26,108

-20

15,458

-10

9,395

0

5,895

10

3,791

20

2,499

25

2,056

30

1,706

40

1,174

50

833.8

60

595.4

70

435.6

80

322.5

90

243.1

100

186.6

110

144.2

120

112.7

130

89.28

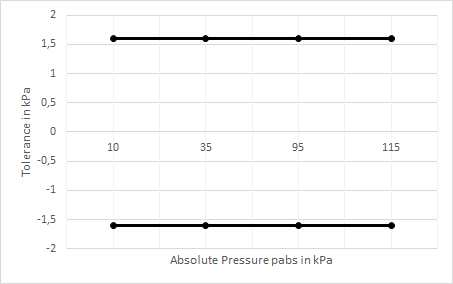

Tolerance 0.1 to 1.15 bar

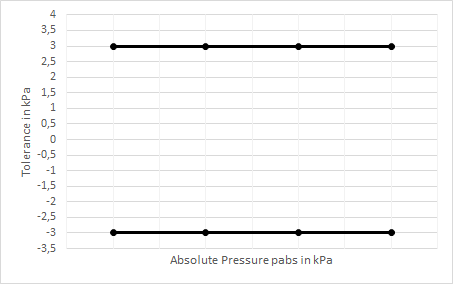

Tolerance 0.2 to 3 bar

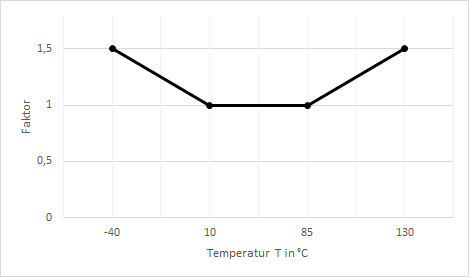

Expansion of Tolerance

Connectors and Wires

Connector

Bosch Compact

Mating connector

D261.205.360-01

Pin 1

Ground

Pin 2

Temperature Signal

Pin 3

Power Supply

Pin 4

Pressure Signal

Various motorsport and automotive connectors are available on request.

Installation Notes

The PST 1/PST 3 is designed for engines using ROZ95, ROZ98, M15, E22 and Diesel.

The sensor can be connected directly to most control units.

To avoid noise, an ECU-input circuit with a RC-low pass filter (tau = 2 ms) is recommended.

Use engine oil (5W40) as O-Ring grease (no silicone based grease).

Avoid miss-pinning (max. 5 minutes at I = 0.3 A).

Please find further application hints in the offer drawing and free download of the sensor configuration file (*.sdf) for the Bosch Data Logging System at our homepage.

To avoid damage caused by condensate the maximum mounting position from vertical is +-60°.

Safety Note

The sensor is not intended to be used for safety related applications without appropriate measures for signal validation in the application system.

Ordering Information

Pressure Sensor Combined PST 1

0.1 to 1.15 bar

Order number: 0261.230.333

Pressure Sensor Combined PST 3

0.2 to 3 bar

Order number: 0261.230.280
