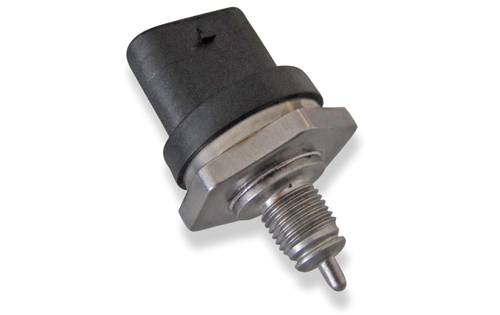

This sensor is designed to measure absolute gasoline pressure and gasoline temperature in direct injection systems
The pressure measurement is based on the expansion of a steel diaphragm, where strain gauges are placed to a Wheatstone bridge. The measured signal is proportional to the pressure and is processed in an application specific integrated circuit.
The temperature measurement is conducted by an NTC thermistor. The main feature of this sensor is its compact design and the integration of two functions (temperature and pressure measurements) in a common housing.
- Downloads
- Features
- Application
- Technical Specifications
- Installation Notes
- Ordering Information
- Legal Restrictions
Downloads
Features
- Pressure: 0 to 350 bar
- Temperature: -40 to 140°C
- Power supply: 5 V
- Weight: 36 g
Application
Application 1 | 0 to 350 bar |
Reference | Absolute |
Max. pressure | 390 bar |
Application 2 | -40 to 140°C |
Resistance at 25°C | 2 kOhm |
Operating temp. range | -40 to 140°C |
Media temp. range | -40 to 140°C |
Storage temp. range | -40 to 60°C |
Biofuel compatibility | E26, E85 |
Max. vibration | 210 m/s2 RMS at 147 to 1,350 Hz |
Technical Specifications
Mechanical Data
Male thread | M10x1 |
Weight without wire | 36 g |
Wrench size | 27 mm |
Installation torque | 37.5 ± 2.5 Nm |
Sealing | Sealed cone |
Electrical Data
Power supply US | 4.75 to 5.25 V |
Max power supply US max | 16 V (18 V for max. 1 h) |
Full scale output UA | 0.5 to 4.5 V US ratiometric |
Current IS | 12 mA |
Characteristic 1
Response time T10/90 | Pressure: 0.2 to 0.8 ms |
Compensated range | -40 to 130°C |
Tolerance (FS) at US | +/- 1 % at 0 to 100°C |
Sensitivity at US = 5 V | 11.43 mV/bar |
Offset | 500 mV at US = 5 V |
Characteristic 2

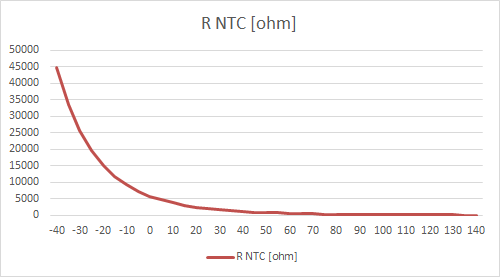

T [°C] | R [Ohm] |
-40 | 44,864 |
-30 | 25,524 |
-20 | 15,067 |
-10 | 9,195 |
0 | 5,784 |
10 | 3,740 |
20 | 2,480 |
25 | 2,038 |
30 | 1,683 |
40 | 1,167 |
50 | 825 |
60 | 594 |
70 | 434,9 |
80 | 323,4 |
90 | 244 |
100 | 186,6 |
110 | 144,5 |
120 | 113,3 |
130 | 89,8 |
140 | 71,9 |
Connectors and Wires
Connector | Bosch Trapezoid |
Mating connector | F02U.B00.751-01 |
Pin 1 | - |
Pin 2 | Temperature Signal |
Pin 3 | Ground |
Pin 4 | Pressure Signal |
Pin 5 | Power Supply |
Various motorsport and automotive connectors are available on request. |
Installation Notes
The sensor can be connected directly to most control units. |
For temperature measurement please use a pull-up resistor with an optimal value of 4.6 kOhm. |
The sensor has a protection for overvoltage, reverse polarity and short-circuit. |

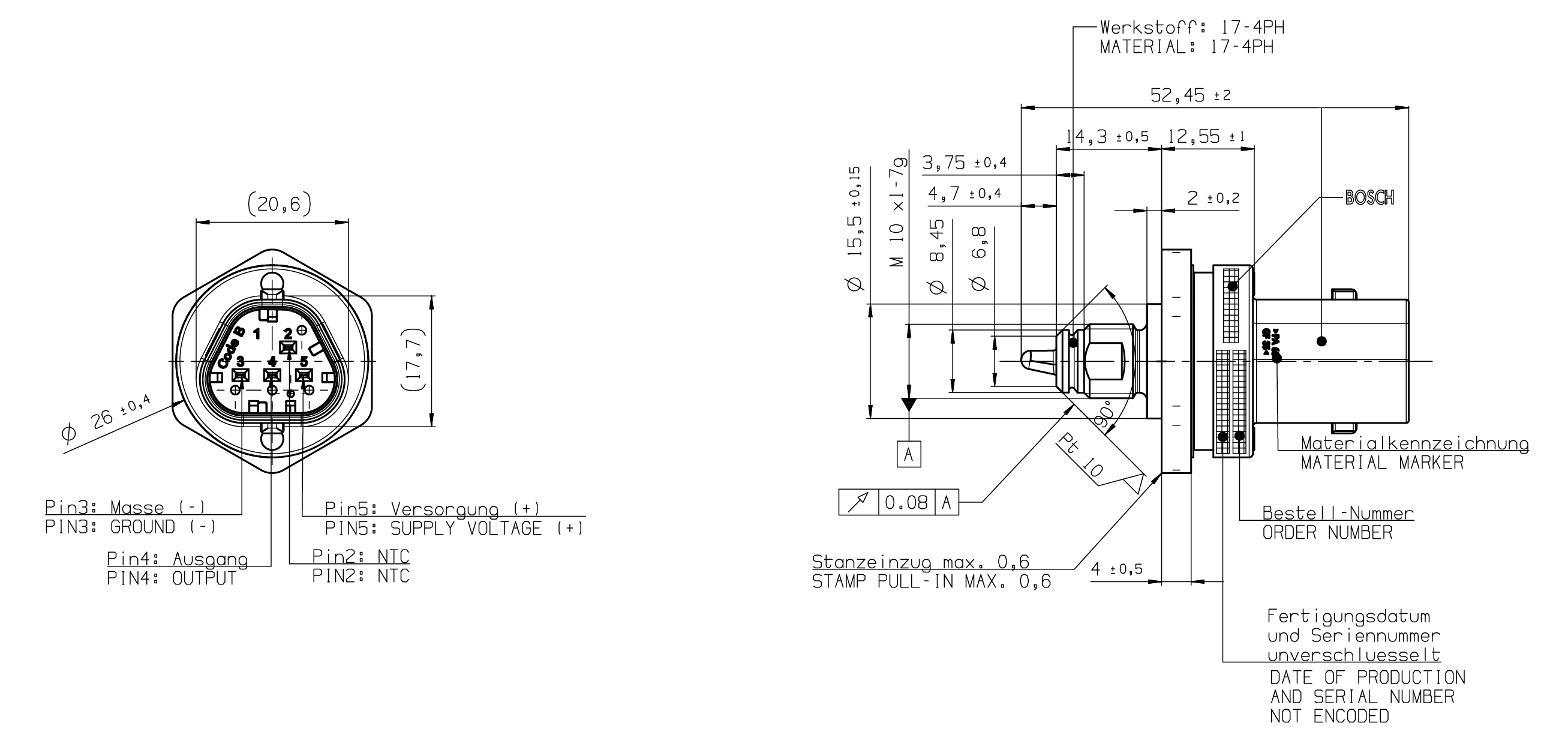

Please find further application hints in the offer drawing and free download of the sensor configuration file (*.sdf) for the Bosch Data Logging System at our homepage. |
Safety Note
The sensor is not intended to be used for safety related applications without appropriate measures for signal validation in the application system. |
Ordering Information
Pressure Sensor Combined PST-F 2 350 bar
Order number: 0261.B35.596-01
Legal Restrictions
Due to embargo restrictions, sale of this product in Russia, Belarus, Iran, Syria, and North Korea is prohibited.
