ABS M5 Kit Porsche Cup

The ABS M5 Kit Porsche Cup is a derivative of the successful ABS M5 kit and specifically designed for Porsche 997 Cup and 991 Cup. A vehicle specific wiring harness is included in the kit. Individual car parameters like e.g. vehicle weight, vehicle track, wheel weights, wheel circumferences, wheel base or number of increments can be calibrated with software free of charge. Please contact your Bosch Motorsport dealer for further information.



  • Plug & Play ABS M5 Kit for Porsche 997 Cup and 991 Cup Gen 1 and Gen 2
  • Tested and developed on racetracks like Spa and Nordschleife
  • Detailed installation instruction available at our website
  • 1 Mbaud CAN

Technical Specifications



997 Cup (System DF11S)

991 Cup (System DF11i)

4 wheel speed sensors

Included, Porsche specific DF11S

Not included, series sensors fit

ABS warning light (MIL)


Included (LED type)

Brake pipe fittings

Not included



Not included


Holder for Hydraulic unit

Included, standard

Included, Porsche specific

Mechanical Data

Hydraulic unit

Vibration damped circuit board


38 pin connector


2 hydraulic valves per wheel


2 brake circuits (front and rear)


2 hydraulic accumulators 5 cm3/each

Standard fittings

2 x master cylinders M12 x 1
4 x brake cylinders M10 x 1


122 x 110 x 122 mm


1,910 g

Operating temperature

-30 to 130°C

Max. shock

50 g less than 6 ms

Max. working speed

360 km/h = 100 m/s = 224 mph

Pressure Medium

DOT 4 brake fluid

DOT 5.1 brake fluid

Electrical Data

Supply voltage

10 to 16 V, max. 24 V for 5 min

Max. peak voltage

35 V for 200 ms

Power consumption pump

230 W

Power consumption relay

170 W

Power consumption electronics

8 W


4 active wheel speed DF11

2 brake pressure (front brake circuit, rear brake circuit)

Longitudinal acceleration

Lateral acceleration

12 position function switch:

  • 11 maps preconfigured
  • 1 switch position for ABS function OFF


ABS warning light (MIL)

CAN channels: see manual

Optional Accessories

Data logger C 70


Display DDU 9

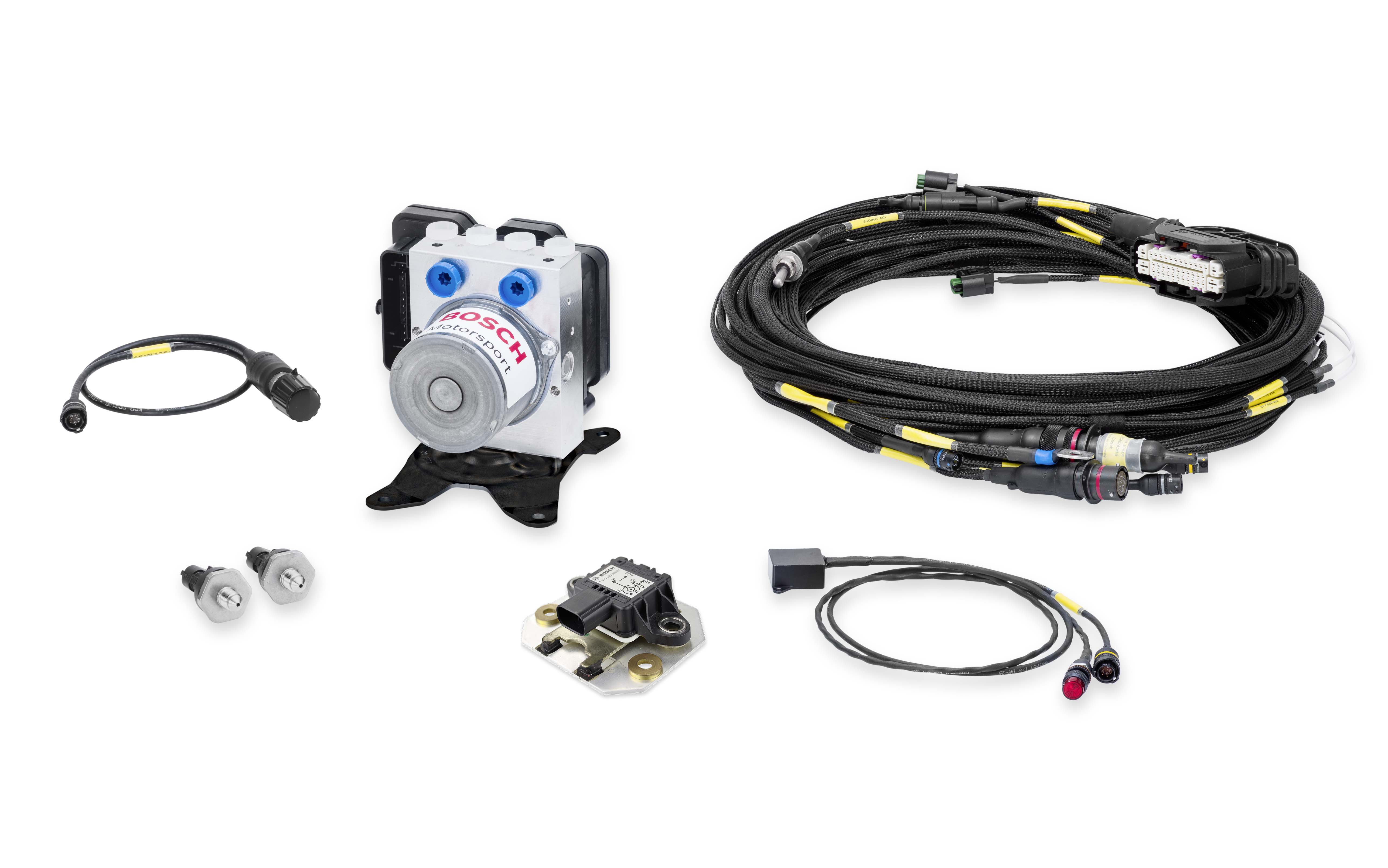

Content of Kit

Hydraulic unit


Holder for Hydraulic unit

See Variations

4 Wheel speed sensors

See Variations

2 pressure sensors


MM5.10 acceleration sensor


Vibrations damping board for acceleration sensor


12 position function switch


ABS warning light (MIL)

See Variations

Specific wiring harness


Brake pipe fittings

See Variations


See Variations

Fuse mounting bracket


Required Content

Brake pipes not included, available at Bosch Motorsport dealer


CAN via MSA Box II

Ordering Information

ABS M5 Kit Porsche 997 Cup

Order number: F02U.V05.289-20

ABS M5 Kit Porsche 991 Cup Gen 1

2015 Model Year

Order number: F02U.V05.289-18

ABS M5 Kit Porsche 991 Cup Gen 2

2017 Model Year

Order number: F02U.V05.289-19
