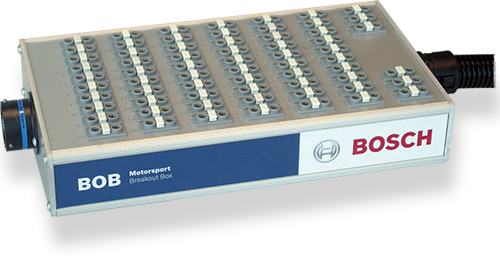

The Breakout Box BOB enables the operator to perform measurements and modify connections during operation. The jumpers facilitate the ability to open and close each individual connection without removing the jumper. All signals can be accessed and measured via the jacking points. The box is essential for development and test environments in the lab and vehicle.
Downloads
Features
- Optimised packaging facilitates a low-profile design with compact, lightweight housing
- Robust 4 mm standard jacks for measuring leads
- Signal integrity of high-speed data links ensured by product-specific version
- Standard configurations and fully customized versions available
- No more lost jumpers due to patented 90° rotatable connectors
Technical Specifications
Mechanical Data
Size | 225 x 130 x 35 mm |
Weight | 1,100 g |
4 mm standard jacks for measuring leads | 66 |
Connectors and Wires
F02U.V02.295-01 code blue |
| ||
| Connector on housing | AS018-35PB | |
| Connector on wire | AS618-35SB | |
F02U.V02.296-01 code orange |
| ||
| Connector on housing | AS018-35PC | |
| Connector on wire | AS618-35SC | |
F02U.V02.297-01 code red |
| ||
| Connector on housing | AS018-35PN | |
| Connector on wire | AS618-35SN | |
F02U.V02.298-01 code yellow |
| ||
| Connector on housing | AS018-35PA | |
| Connector on wire | AS618-35SA | |
F02U.V02.299-01 code violet (universal) |
| ||
| Connector on housing | AS018-35PU | |
| Connector on wire | AS618-35SU | |
Wire length L (all) | Ca. 50 cm | ||
Ordering Information
Breakout Box BOB 66-pole
Connector code: blue
Order number: F02U.V02.295-01
Breakout Box BOB 66-pole
Connector code: orange
Order number: F02U.V02.296-01
Breakout Box BOB 66-pole
Connector code: red
Order number: F02U.V02.297-01
Breakout Box BOB 66-pole
Connector code: yellow
Order number: F02U.V02.298-01
Breakout Box BOB 66-pole
Connector code: violet (universal use)
Order number: F02U.V02.299-01
Legal Restrictions
The sale of this product in Mexico is prohibited.
Due to embargo restrictions, sale of this product in Russia, Belarus, Iran, Syria, and North Korea is prohibited.
