Breakout Box BOB MS 6 / MS 6 EVO

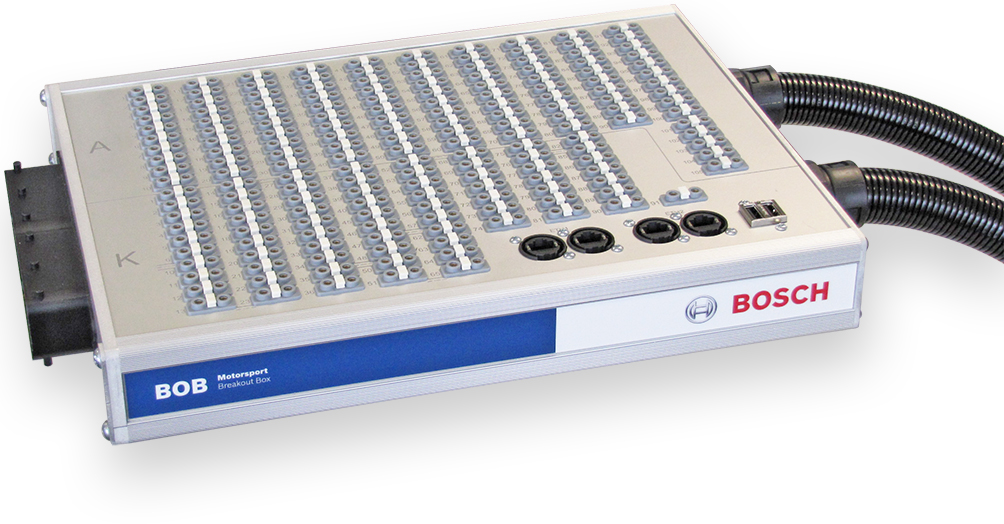

The Breakout Box BOB enables the operator to perform measurements and modify connections during operation. The jumpers allow to individually open or close each single connection without removing the jumper. Jacks provide access to all signals for measurement purposes. The box is essential for development and test environments in the lab and vehicle.

We developed one version for use with Engine Control Units MS 6 and a second version for use with Engine Control Units MS 6 EVO. They differ in their internal structure and cannot be interchanged.

Downloads

Literature

Features

  • Compact, lightweight housing in low-profile design with high-density packaging
  • Robust 4 mm standard jacks for measuring leads
  • Signal integrity of high-speed data links ensured by product-specific version
  • Standard configurations and fully customized versions available
  • No more lost jumpers due to patented 90° rotatable connectors

Technical Specifications

Mechanical Data

Size

355 x 270 x 50 mm

Weight

4,100 g

4 mm standard jacks for measuring leads

176

Ethernet connectors

4

Ethernet wire

2 x inclusive

USB connectors

2

USB jumper

inclusive

Connectors and Wires

Wire length L

2 x 60 cm

Ordering Information

Legal Restrictions

The sale of this product in Mexico is prohibited.

Due to embargo restrictions, sale of this product in Russia, Belarus, Iran, Syria, and North Korea is prohibited.
