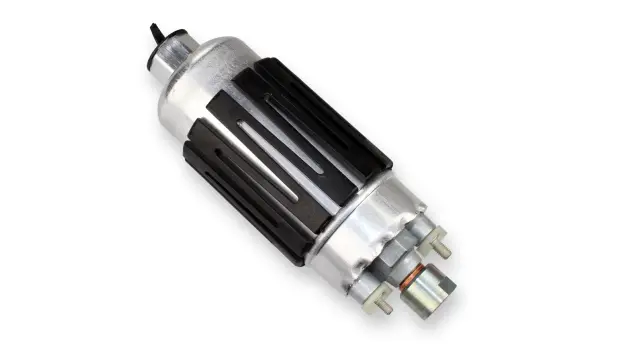

Fuel Pump FP 165-E

Fuel Pump FP 165-E

The FP 165-E is an inline roller cell pump for the installation outside the fuel tank (installation in the tank not proven).

It is capable of providing <165 l/h at 6 bar.

The FP 165-E is compatible with Gasoline up to E10 and Diesel fuel. It is a production type fuel pump, combining good quality at a low price.

Product Highlights

Features

  • >165 l/h
  • Max. 6 bar
  • 700 g
  • Fuel lines screwed
  • Internal pre-filter on suction side with 300 µm

Downloads

Literature

Product Details

Fuel pressure
0.5 up to 6 bar
Fuel pressure

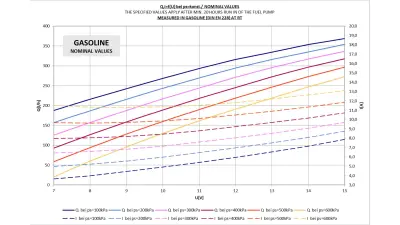

Delivery rate at 5 bar and 22°C
0.5 up to 6 bar
190 l/h at 4.3 bar
Fuel pressure
Pressure limiting valve
0.5 up to 6 bar
8 to 10.0 bar rel.
Fuel pressure
Gasoline compatibility
0.5 up to 6 bar
Up to E10
Fuel pressure

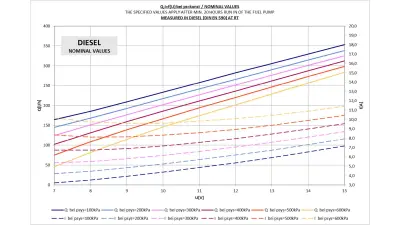

Diesel compatibility
0.5 up to 6 bar
Given
Fuel pressure
Operating temperature range
0.5 up to 6 bar
-40 to 80°C
≤90°C for ≤5 h over 1.000 h lifetime
≤105°C for ≤1 h over 50 h lifetime
Fuel pressure
Storage temperature range
0.5 up to 6 bar
-40 to 60°C
Fuel pressure
Max. vibration
IEC 60068-2-34
0.5 up to 6 bar
10 Hz 19,4 (m/s2)2/Hz
300 Hz 0,654 (m/s2)2/Hz
1.000 Hz 0,059 (m/s2)2/Hz

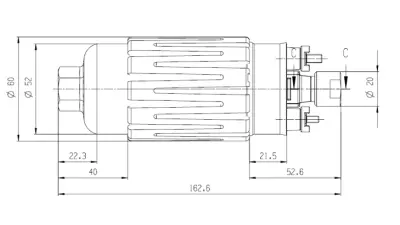

Mechanical Data
Mechanical Data
Diameter
60 mm
Mechanical Data
Length
162.6 mm
Mechanical Data
Weight
700 g
Mechanical Data
Mounting
Clamping
Electrical Data
Electrical Data
Supply voltage
6 to 15 V
Electrical Data
Operating voltage
13 V (26 V for 60 s)
Electrical Data
Load current at 5 bar and 22°C
<14 A
Characteristic
Characteristic
Color
Silver
Characteristic
Non-return valve
Internal
Characteristic
Overpressure valve
Internal
.
.
Connectors and Wires
Connectors and Wires
Electrical connector
+M4/-M5
Connectors and Wires
Electrical mating connector
with ring wire M4 and M5
Connectors and Wires
Mechanical connector intake side
M14x1.5
Connectors and Wires
Mechanical connector pressure side
M12x1.5
.

Further Information

Up to E100 with shorter lifetime
Up to E100 with shorter lifetime
For technical reasons the values may vary.
Up to E100 with shorter lifetime
Please use within the specified limit values only.
Up to E100 with shorter lifetime
Please find further application hints in the offer drawing at our homepage.

Fuel Pump FP 165-E
Order number: F.02U.V03.137-01
