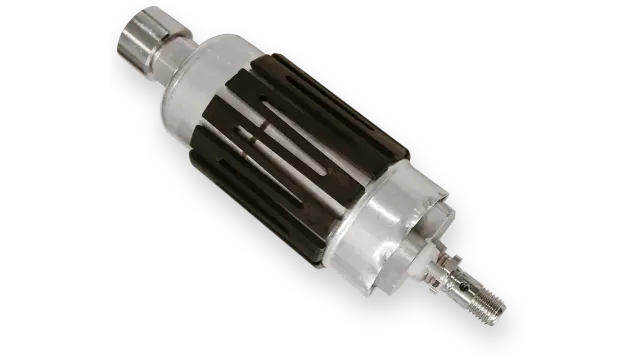

Fuel Pump FP 200-E

Fuel Pump FP 200-E

The FP 200-E is an inline roller cell pump for the installation outside the fuel tank (installation in the tank is not proven).

It is capable of providing 200 l/h at 8 bar.

The FP 200-E is compatible with Gasoline up to E10 and Diesel fuel.

The customer must ensure, by taking appropriate measures, that the pump is not operated at a pressure exceeding 8.0 bar.

Operating the pump at a pressure exceeding 8.0 bar can significantly reduce its lifespan and may also lead to external fuel leakage.

Product Highlights

Features

  • >200 l/h
  • No internal pressure limiting valve
  • 750 g
  • Fuel lines screwed
  • Internal pre-filter on suction side with 300 µm

Downloads

Literature

Product Details

Fuel pressure
Max. 8,0 bar (absolute)
Fuel pressure

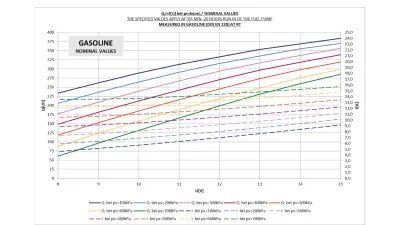

Gasoline delivery rate at 8 bar and 22°C
Max. 8,0 bar (absolute)
>200 l/h
Fuel pressure

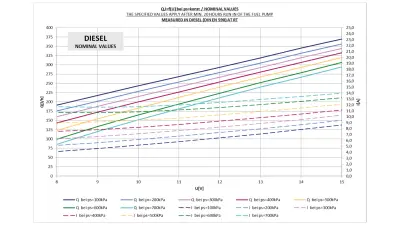

Diesel delivery rate at 7 bar and 22°C
Max. 8,0 bar (absolute)
>180 l/h
Fuel pressure
Pressure limiting valve
Max. 8,0 bar (absolute)
Without. Subsequent assembly possible on pressure side by customer
Fuel pressure
Gasoline compatibility
Max. 8,0 bar (absolute)
Up to E10
Fuel pressure
Diesel compatibility
Max. 8,0 bar (absolute)
Given
Fuel pressure
Operating temperature range
Max. 8,0 bar (absolute)
-40 to 80°C
≤90°C for ≤5 h over 1.000 h lifetime
≤105°C for ≤1 h over 50 h lifetime
Fuel pressure
Storage temperature range
Max. 8,0 bar (absolute)
-30 to 60°C
Fuel pressure
Max. vibration
IEC 60068-2-34
Max. 8,0 bar (absolute)
10 Hz 19,4 (m/s2)2/Hz
300 Hz 0,654 (m/s2)2/Hz
1.000 Hz 0,059 (m/s2)2/Hz

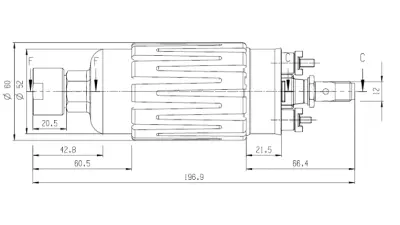

Mechanical Data
Mechanical Data
Diameter
60 mm
Mechanical Data
Length
197 mm
Mechanical Data
Weight
750 g
(864 g incl. cable kit)
Mechanical Data
Mounting
Clamping
Electrical Data
Electrical Data
Supply voltage
6 to 15 V (26 V for 60 s)
Electrical Data
Operating voltage
13 V
Electrical Data
Load current at 8 bar and 22°C
< 20 A
Characteristic
Characteristic
Color
Silver
Characteristic
Non-return valve
External
Characteristic
Fuel filtering
External, on pressure side
Characteristic
Over-pressure valve
Without
.
.
Connectors and Wires
Connectors and Wires
Electrical connector
+M4/-M5
Connectors and Wires
Electrical mating connector
With ring wire M4 and M5
Connectors and Wires
Mechanical connector intake side
M18x1.5
Connectors and Wires
Mechanical connector pressure side
M12x1.5
.

Further Information

Up to E100 with shorter lifetime
Up to E100 with shorter lifetime
For technical reasons the values may vary.
Up to E100 with shorter lifetime
Use within the specified limit values only.
Up to E100 with shorter lifetime
You’ll find further application hints in the offer drawing at our homepage.
Up to E100 with shorter lifetime
Be careful, there is no over-pressure valve inside.
Safety Note
Safety Note
Operating the pump at pressures above 8.0 bar can significantly reduce the lifespan and may lead to external fuel leakage.
Therefore, the customer must ensure, by taking appropriate measures, that the pump is not operated at a pressure exceeding 8.0 bar.

Fuel Pump FP 200-E
Order number: 0580.B00.12U-50
