ABS M5 Kit

We developed ABS M5 for the operation in front-, rear- or 4-wheel drive vehicles. A vehicle specific wiring harness is included in the Kit.

The ABS M5 is specifically adapted for motorsport use. Individual car parameters like e.g. vehicle weight, vehicle track, wheel weights, wheel circumferences, wheel base or number of increments can be calibrated with software free of charge. Please contact your Bosch Motorsport dealer for further information.

Downloads

Features

  • Suitable for front-wheel, rear-wheel and four-wheel drive vehicles

Technical Specifications

Variations

Option

Kit 1

Kit 2

Clubsport

F02U.V05.2

89-01

90-01

91-01
92-01
93-01
94-01
95-01
96-01

Customized wiring loom

+

+

-

ABS-Off position optional on position 1

+

+

-

Selection of ABS maps via Bosch 12-position switch or via specified CAN signal

+

+

+*

Motorsport connectors for wheel speed sensors

-

+

-

Flexible CAN terminals

+

+

+**

Downforce depending slip regulation

+***

+***

-

Lateral acceleration slip regulation

+

+

-

Corner inside wheel slip reduction regulation

+

+

-

+*: fixed Kit Content

+**: Adjustable via Coding Plug

+***: Enabled with customer specific calibration

Mechanical Data

Hydraulic unit

Serial housing, dust- and damp-proof



Vibration damped circuit board

38 pin connector

2 hydraulic valves per wheel

2 brake circuits (front and rear)

2 hydraulic high pressures pumps

2 hydraulic accumulators

3 cm3/each

Standard fittings

2 x master cylinders M12 x 1
4 x brake cylinders M10 x 1

Size

122 x 110 x 122 mm

Operating temperature

-30 to 130°C

Max. shock

50 g less than 6 ms

Max. working speed

360 km/h = 100 m/s = 224 mph

Pressure Medium

DOT 4 brake fluid

DOT 5.1 brake fluid

Electrical Data

Supply voltage

10 to 16 V, max. 24 V for 5 min

Max. peak voltage

35 V for 200 ms

Power consumption Pump

230 W

Power consumption Relay

170 W

Power consumption Electronics

8 W

Inputs

4 active wheel speed DF11i, DF11S or DF11V

Brake pressure (front brake circuit / rear brake circuit)

Longitudinal acceleration, lateral acceleration, yaw rate (MM5.10 sensor)

11 adjustment settings (applicable for OEMs)

ABS function can be deactivated (Pos. 1 or Pos. 12)

Outputs

ABS warning light (MIL)

EBD warning light (MIL) if needed

TTL wheel speed signal FL / FR / RL / RR

Content of Kit and Weights

Hydraulic unit

1,910 g

2 pressure sensors

40 g/each

Yaw/acceleration sensor

60 g

12 position function switch

50 g

4 wheel speed sensors DF11 standard

50 g/each

ABS warning light (MIL)

50 g

Vehicle specific wiring harness with motorsport connectors

Depends on version

Clubsport wiring harness

1,540 g

Mounting and vibration-damping boards

80 g

Mounting board for hydraulic unit

212 g

Optional Accessories

Data logger C 70

F02U.V02.302-02

Display DDU 9

F02U.V02.300-03

Display DDU 10

F02U.V02.659-02

Communication interface MSA Box II

F02U.V00.327-03

Wheel speed signal splitter with 1 motorsport connector

F02U.V00.335-03

Communication

ABS and Yaw rate sensor

CAN1

Diagnostics

MSA Box II



Installation Notes

Maintenance Interval (brake fluid change, bleeding): 220 h or a maximum of two years.

The load on the hydraulic unit in racing is much higher than in pure road operation, therefore we recommend a replacement of the unit after two years.

Ordering Information

ABS M5 Kit 1

Order number: F02U.V05.289-01

ABS M5 Kit 2

Order number: F02U.V05.290-01

ABS M5 Kit Clubsport

DF11i, 500 kbaud

Order number: F02U.V05.291-01

ABS M5 Kit Clubsport

DF11i, 1 Mbaud

Order number: F02U.V05.292-01

ABS M5 Kit Clubsport

DF11S, 500 kbaud

Order number: F02U.V05.293-01

ABS M5 Kit Clubsport

DF11S, 1 Mbaud

Order number: F02U.V05.294-01

ABS M5 Kit Clubsport

DF11V, 500 kbaud

Order number: F02U.V05.295-01

ABS M5 Kit Clubsport

DF11V, 1 Mbaud

Order number: F02U.V05.296-01

Dimensions

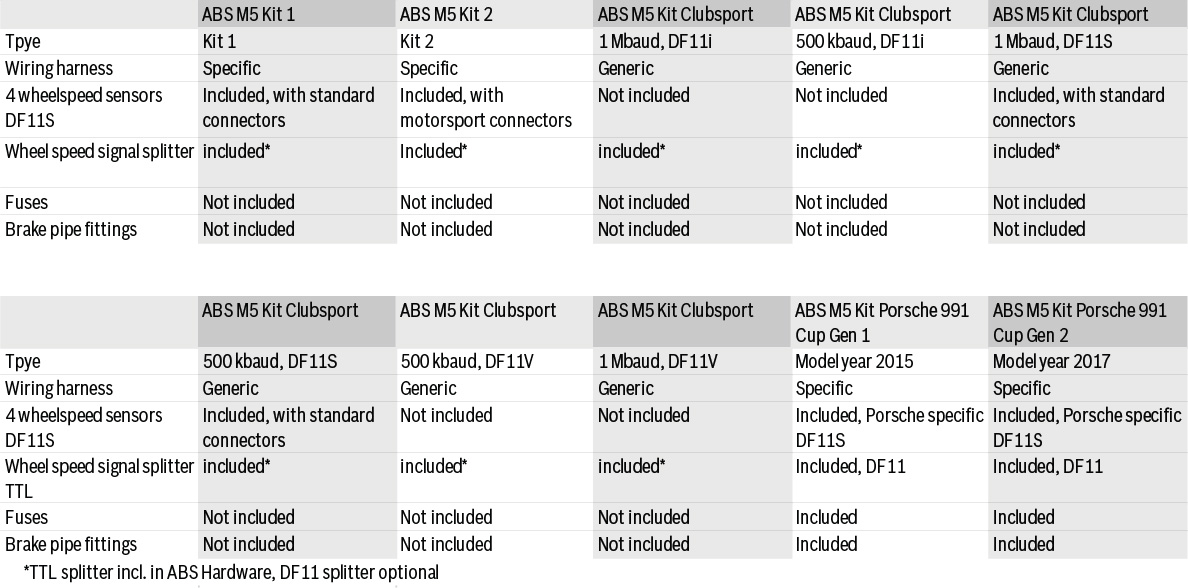

ABS M5 Kit Variations



Legal Restrictions

The sale of this product in Mexico is prohibited.

Due to embargo restrictions, sale of this product in Russia, Belarus, Iran, Syria, and North Korea is prohibited.
