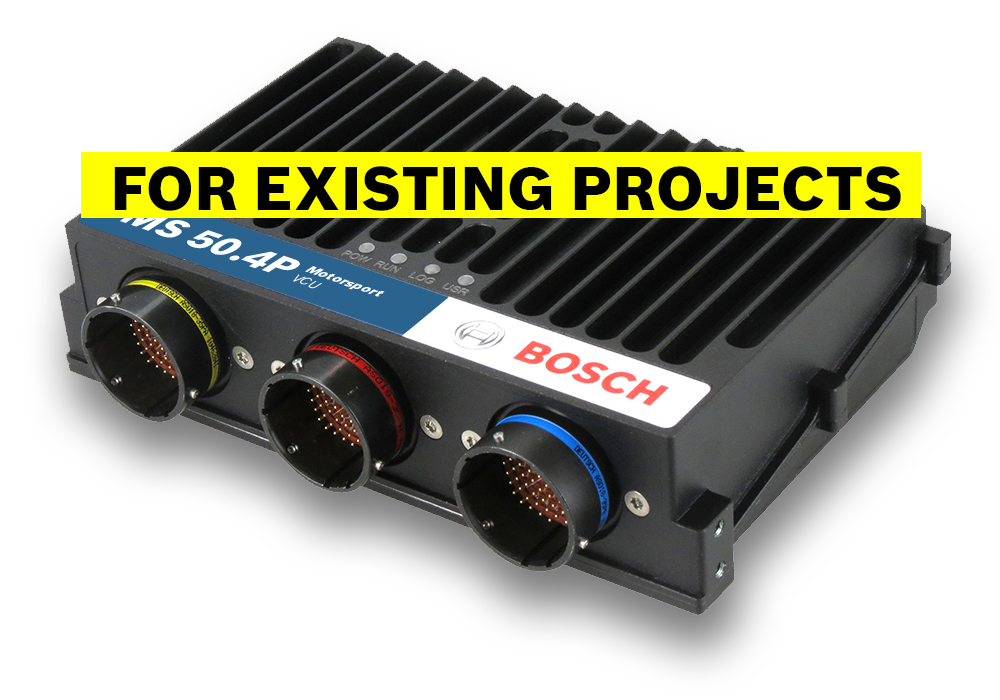

Vehicle Control Unit MS 50.4P incl. CCA

The VCU MS 50.4P (Performance) is a highly powerful processing / logging unit for race applications.

Based on our broad base of platform function, we support you with customized VCU functions for a tailor-made solution.

In addition, you can quickly develop your individual customer software based on MATLAB/Simulink to significantly speed up algorithm development (automatic code and documentation generation) – including extensive simulation capabilities.

Downloads

Features

  • 866 MHz Dual Core Processor exclusively for vehicle control functionality (MATLAB based)
  • Identical, dedicated 866 MHz Dual Core Processor exclusively for logging purposes
  • High Speed Logging 200 kHz of 6 analog inputs (optional)
  • Event logging, Configurable pre-event logging

Application

Processor for customer code

866 MHz Dual Core

Processor for logger

866 MHz Dual Core

Configurable math channels

User configurable CAN in/out messages

Online data compression

Internal logger

  • 1,500 channels
  • FULL_LOG_1 (4 GB memory on partition 1) enabled
  • PERF_LOG_1 (16 GB memory on partition 1) optional
  • FULL_LOG_2 (4 GB memory on partition 2) enabled
  • High Speed Logging Package (Sampling rate 5 µs) optional
  • DATA_USB (Data copy to USB flash drive) enabled

Logging rates

  • Usage of all features: 800 kB/s
  • Primary logging use case: >1,500 kB/s
  • Logging data download rate: up to 7.5 MB/s

LTE Ethernet telemetry support

RS232 interface for GPS



Customer Code Area CCA

Provides the option to run customer developed software code on Bosch device

Multi CCA

Enables the use of an extra core to utilize more computing power in the device for running a second customer model

Technical Specifications

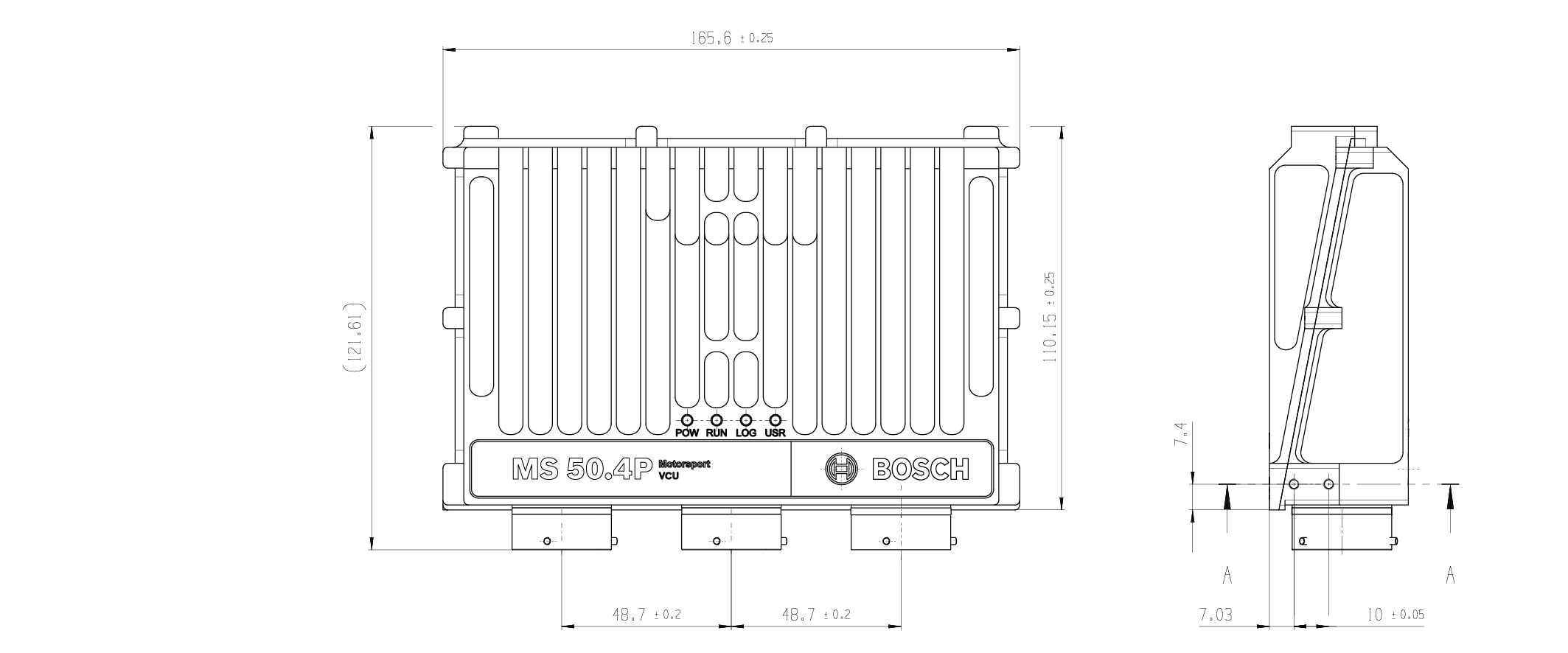

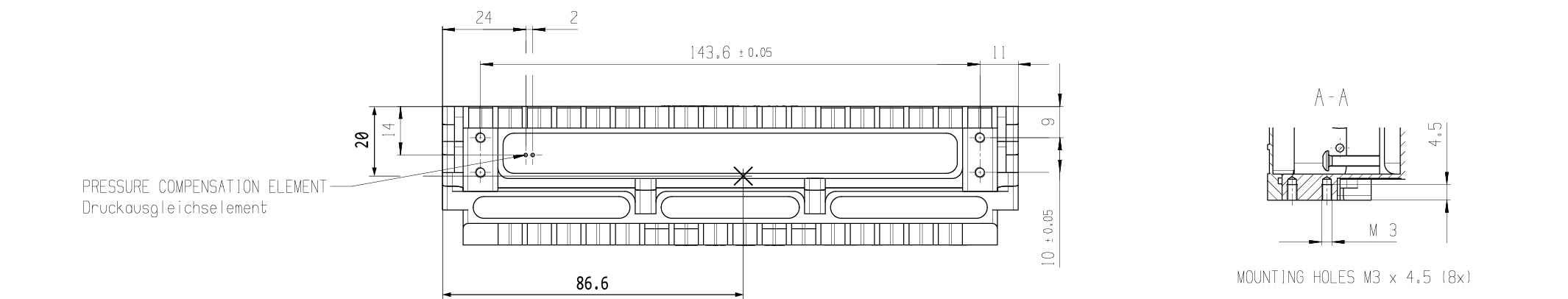

Mechanical Data

Size

166 x 121 x 41 mm

Weight

≤ 660 g

Protection classification

IP67

3 motorsport connectors, 198 pins in total

Max. vibration

Vibration profile 1 (see Downloads or www.bosch-motorsport.com)

Operating temperature internal

0 to 85°C

Operation outside the temperature limits can be tested on request during the manufacturing tests.

Electrical Data

Supply voltage

5 to 18 V

Inputs

20 Analog channels 0 to 5 V, 0.5 % precision between 0.2 and 4.8 V, switchable pull-up

8 Digital PWM inputs f_max=30 kHz Hall-type speed measurement possible,
Switchable pullup 2.15 kOhm, (required for Hall), Tooth count differential*

4 Digital PWM inputs f_max=30 kHz Hall- and DF11 type speed measurement possible,
Fixed pullup 2.15 kOhm (required for Hall), Tooth count differential*

4 universal Thermocouple

1 Bosch Laptrigger

1 TimeSync master and slave (specific to Bosch measurement system)

Internal measurements:

1 x ambient pressure
1 x ECU temperature
20 x supply voltage
20 x supply current
1 x battery voltage (external VCU supply)
1 x external VCU supply current
4 x HS output current

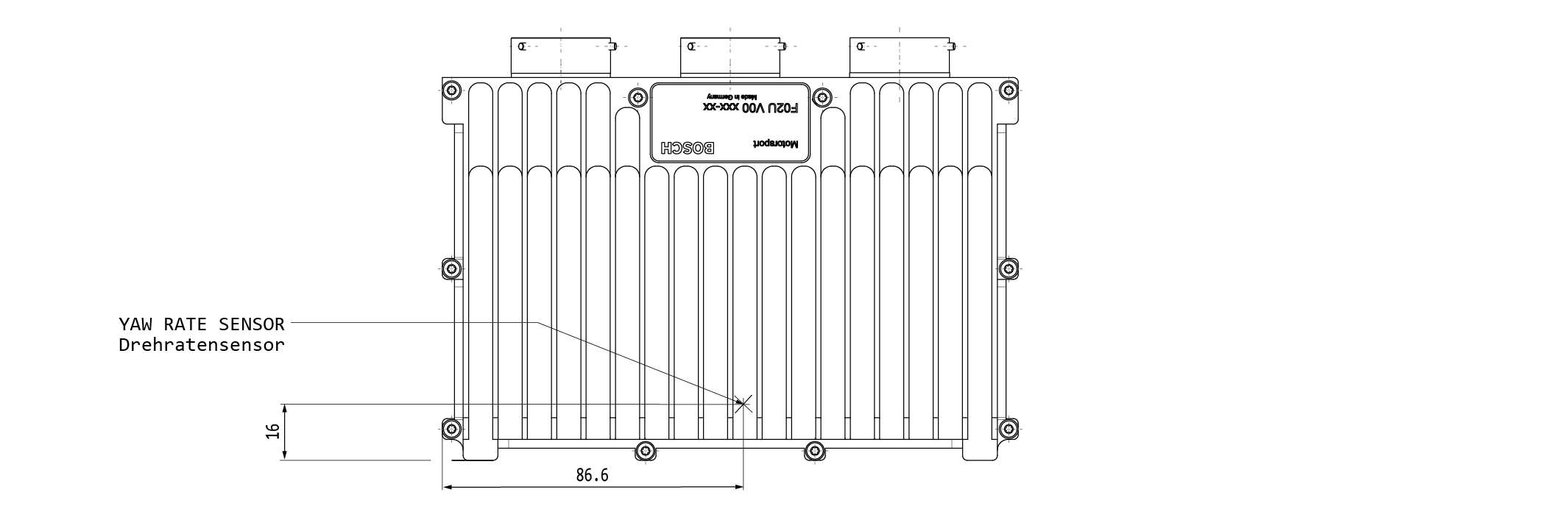

1 x 3-axis acceleration plus roll/pitch/yaw rate

Outputs

2* x PWM High side; 7.5 A each, PWM, 50 Hz

4* x PWM Low side; 2.2 A each, PWM, 10 kHz

*can be enhanced by Upgrade I/O Package

Sensor Supplies and Screens

5* x 12 V, 400 mA each

5* x Switchable 5 V/12 V, 400 mA each

4 A max overall current on all 12 V
2 A max overall current on all 5 V

12 V ± 1 % precision on the pin
5 V ± 0.1 % precision on the pin

20 x Sensor ground



*can be enhanced by Upgrade I/O Package

Adaptation and Documentation

Function documentation

Automatically created during code generation

MatLab code generation

Support for customer own MatLab function development

Software Tools (free download)

Data Analysis tool WinDarab 7



System Configuration tool RaceCon

Logger configuration, calibration, and online measurement

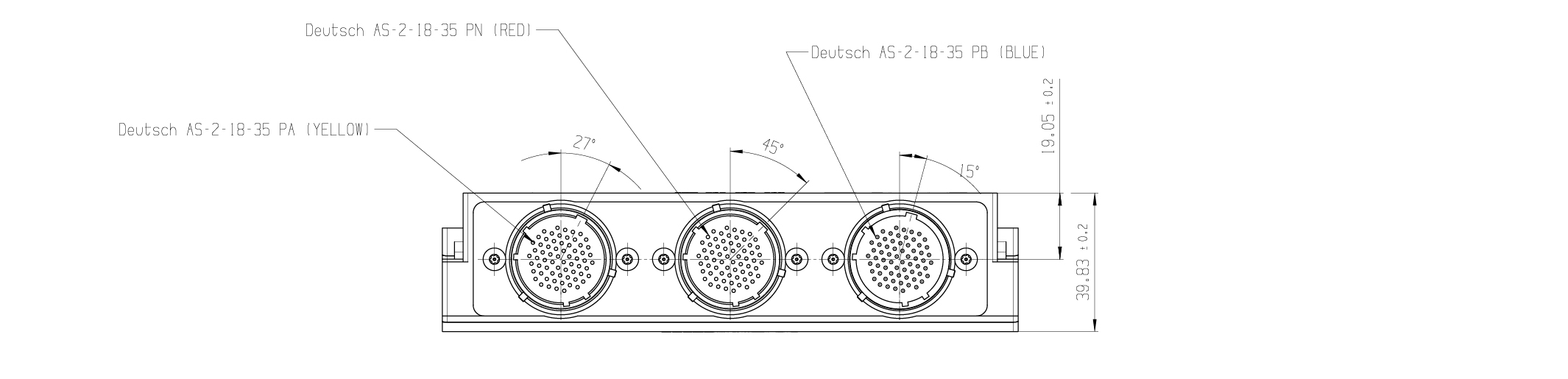

Connectors

Connector LIFE (red) AS018-35PN

Mating connector AS618-35SN (not included)

Connector SENS-A (yellow) AS018-35PA

Mating connector AS618-35SA (not included)

Connector SENS-B (blue) AS018-35PB

Mating connector AS618-35SB (not included)



Communication

3 Ethernet 100 Mbit



4 CAN*



1 LIN



1 USB



1 RS232 interface for GPS or Telemetry, switchable depending on SW version

1 Time sync synchronization Ethernet

*can be enhanced by Upgrade I/O Package

Installation Notes

Maintenance Interval: 220 h or a maximum of two years

Please remember that the mating connectors and the programming interface MSA-Box II are not included and must be ordered separately.

Ordering Information

Vehicle Control Unit MS 50.4P incl. CCA

Order number: F02U.V03.014-01

Breakout Box BOB 66-pole

Connector code: blue

Order number: F02U.V02.295-01

Breakout Box BOB 66-pole

Connector code: yellow

Order number: F02U.V02.298-01

Software Options

I/0 Package

Order number: F02U.V02.777-01

PERF_LOG_1

Order number: F02U.V03.054-01

High Speed Logging Package

Order number: F02U.V02.779-01

CCP/XCP_MASTER

Order number: F02U.V02.213-01

Accessories

Rugged USB flash drive

Order number: F02U.V01.342-03

Connector for USB flash drive on car loom side

Order number: F02U.002.996-01

Adapter cable to PC USB-Port

Order number: F02U.V01.343-01

Opening tool for shellsize 18

Order number: F02U.V01.394-01

Breakout Box BOB MS 7

Connector code: red

Order number: F02U.V02.293-01

Upgrades

I/O Package

Communication



4 CAN

Inputs



4 Analog channels
0 to 5 V,
0.5 % precision between 0.2 and 4.8 V, switchable pull-up

4 Digital PWM inputs
f_max=30 kHz
Hall-type speed measurement possible,
Fixed pullup 2.15 kOhm (required for Hall),
Tooth count differential**

4 LVDT, 5 pin configuration,
excitation frequency 1 to 20 kHz,
excitation voltage 0 to 5 V (rms)

Outputs



4 “TTL” Digital output, 10 kHz, PWM, 25 mA each

2 PWM High side; 7.5 A each, PWM, 50 Hz

4 PWM Low side; 2.2 A each, PWM, 10 kHz

Power Supplies



5 x12 V, 400 mA each

5 switchable 5 V/12 V, 400 mA each

** The tooth count differential between any two of the PWM inputs is available two measure e.g. shaft torsion.

PERF_LOG_1

Increase logging partition 1 from 4 GB to 16 GB memory

High Speed Logging Package

6 ANA

0 to 5 V, 200 kHz logging rate

CCP/XCP_MASTER

Enables CCP/XCP master functionality to request data from foreign devices via CAN/CCP protocol, XCP over Ethernet (UDP) or XCP via CAN.
(ASAP2 file from ECU manufacturer required)

Legal Restrictions

The sale of this product in Mexico is prohibited.

Due to embargo restrictions, sale of this product in Russia, Belarus, Iran, Syria, and North Korea is prohibited.
