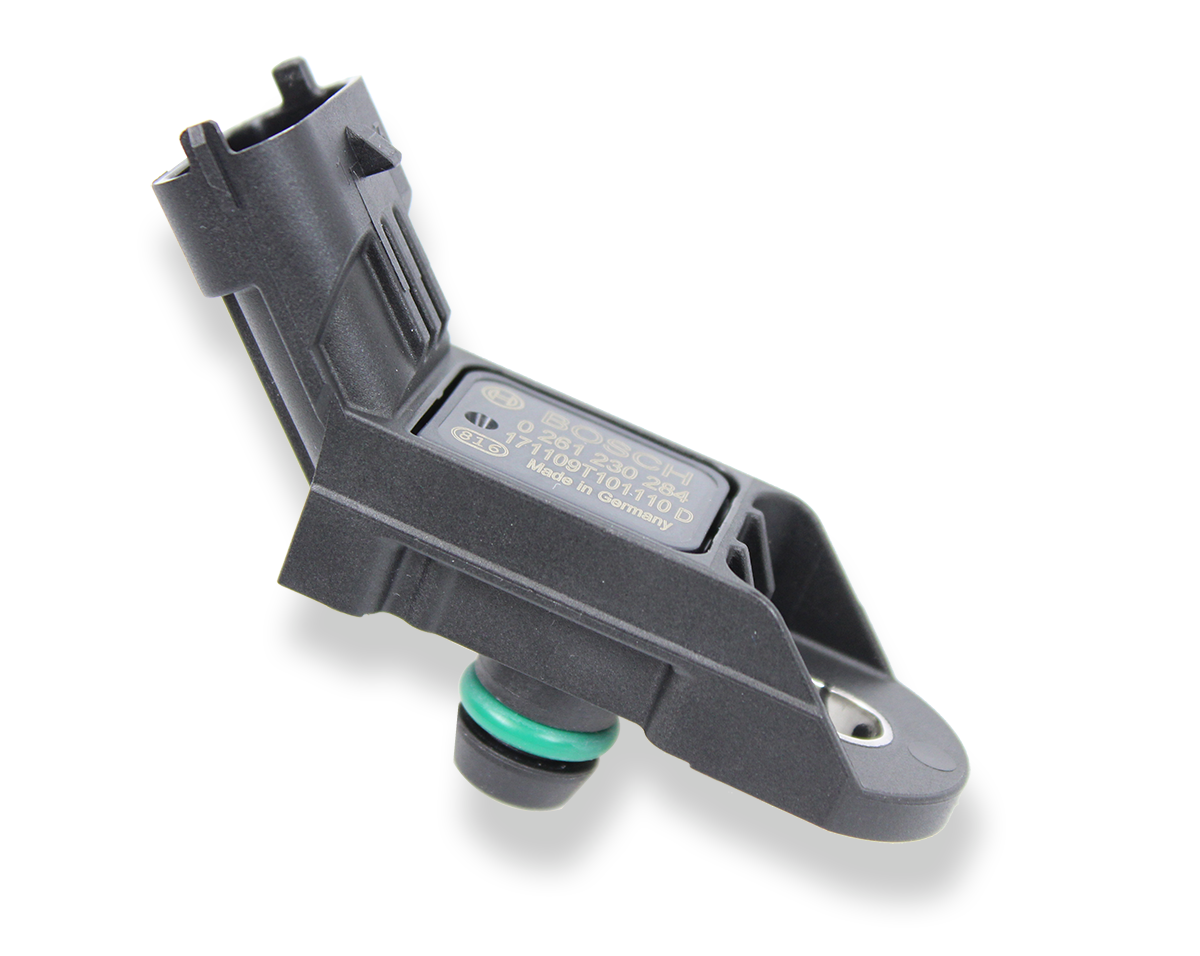

Pressure Sensor Air PS-AA

This sensor is designed to measure absolute air pressure, especially the air box pressure of gasoline or Diesel engines.

An integrated circuit combines a piezo-resistive sensor element and electronic systems for signal-amplification and temperature-compensation. The output of the sensor is an analog, ratio metric signal.

Two different pressure ranges are available (0.1 to 1.15 bar or 0.2 to 2.5 bar).



  • Application: 0.1 to 1.15 bar or 0.2 to 2.5 bar
  • Response time: 1 ms
  • Pressure reference type: Absolute
  • Power supply: 5 V
  • Weight: 20 g



Please see variations

Pressure reference type


Max. pressure

5 bar

Operating temp. range

-40 to 130°C

Media temp. range

-40 to 130°C

Storage temp. range

0 to 40°C

Max. vibration

According to ISO 16750-3

Technical Specifications



PS-AA (0.1 to 1.15 bar)

PS-AA (0.2 to 2.50 bar)

Tolerance (FS) at US = 5 V

± 0.016 bar

± 0.034 bar

Tolerance (FS)

± 1.52 %

± 1.48 %


4,048 mV/bar

1,848 mV/bar


-4.8 mV

30.4 mV

Mechanical Data




12.05 ± 0.8 mm

Weight w/o wire

20 g


O-ring 7.59 x 2.62 mm

Electrical Dat

Power supply US

4.75 to 5.25 V

Max. power supply

16 V

Full scale output UA at 5 V

0.4 to 4.65 V

Current IS

9 mA


Response time T10/90

1 ms

Compensated range

10 to 85°C

Tolerance (FS) at US = 5 V

Please see variations

Tolerance (FS)

Please see variations


Please see variations


Please see variations

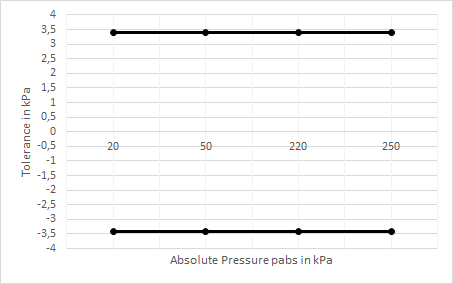

Tolerance 0.1 to 1.15 bar

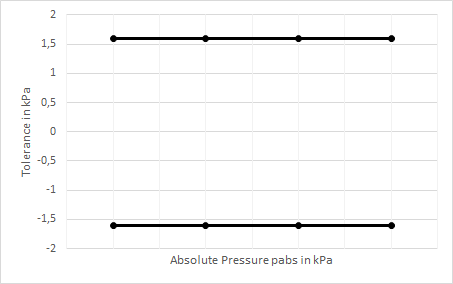

Tolerance 0.2 to 2.5 bar

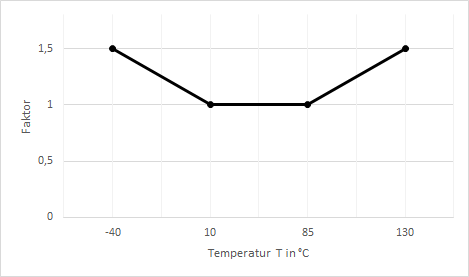

Expansion of Tolerance

Connectors and Wires


RB-COMP 1.1a/3P/Kod.1

Mating connector


Pin 1


Pin 2


Pin 3


Various motorsport and automotive connectors are available on request.

Installation Notes

The PS-AA is designed for engines using ROZ95, ROZ98, M15, E22 and Diesel.

The sensor can be connected directly to most control units.

To avoid noise, an ECU-input circuit with a RC-low pass filter (tau = 2 ms) is recommended.

Use engine oil (5W40) as O-Ring grease (no silicone based grease).

Avoid miss-pinning (max. 5 minutes at I = 0.3 A).

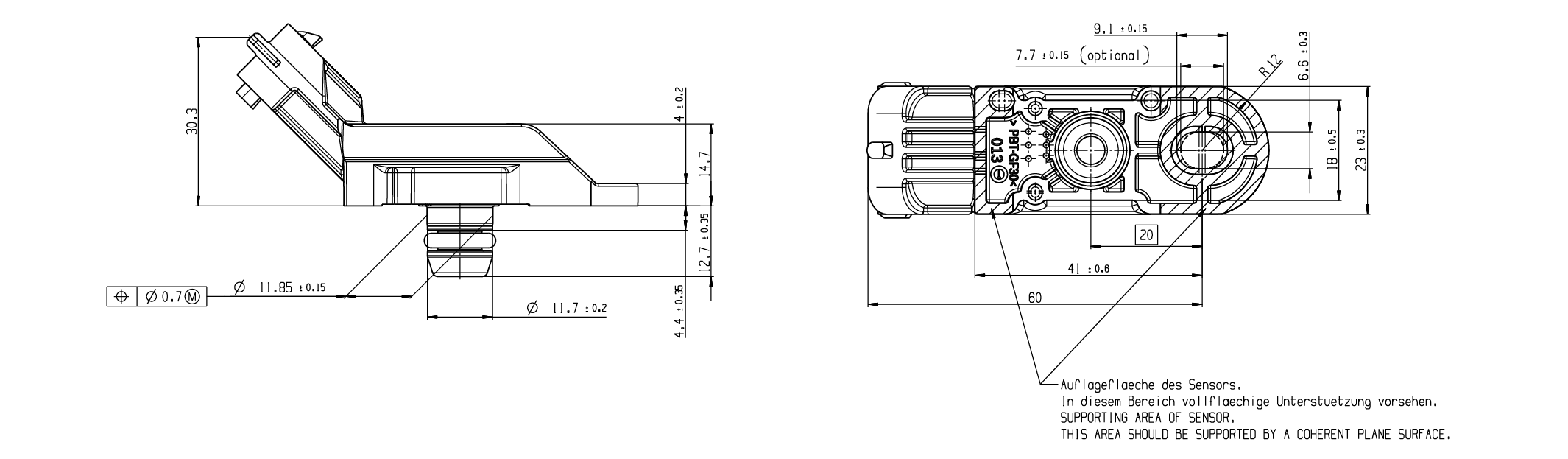

Please find further application hints in the offer drawing and free download of the sensor configuration file (*.sdf) for the Bosch Data Logging System at our homepage.

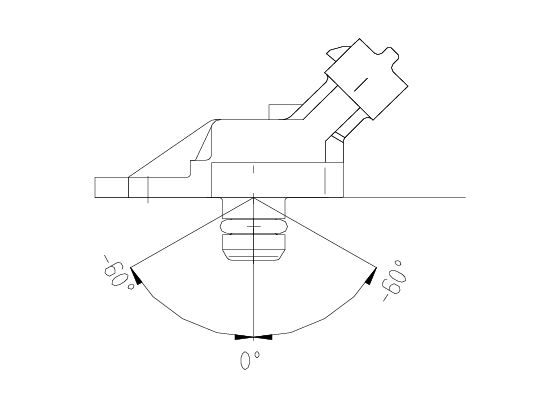

To avoid damage caused by condensate the maximum mounting position from vertical is +-60°.

Safety Note

The sensor is not intended to be used for safety related applications without appropriate measures for signal validation in the application system.

Ordering Information

Pressure Sensor Air PS-AA

0.1 to 1.15 bar

Order number: 0261.230.216

Pressure Sensor Air PS-AA

0.2 to 2.5 bar

Order number: 0261.230.284

Legal Restrictions

Due to embargo restrictions, sale of this product in Russia, Belarus, Iran, Syria, and North Korea is prohibited.
