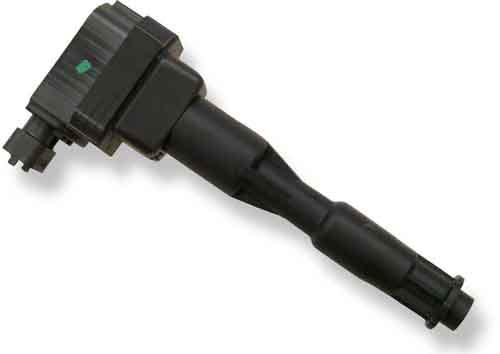

Ignition Coil P50/P50-M

The single fire coil P50 is a low cost concept designed for direct mounting to the cylinder head. A high voltage ignition wire can optionally be connected to the secondary output terminal.

The coil P50 requires an ECU with internal ignition power stages for each single fire coil.

The coil P50-M is specifically for motorsport applications. This coil is operable in higher vibration environments.

Downloads

Features

  • Max. 35 kV
  • Min. 50 mJ
  • Max. 3.0 kV/µs
  • Max. 10,000 1/min
  • High voltage contacting via high voltage wire and spark plug connector possible

Application

Spark energy

≥ 50 mJ

Primary current

≤ 8.5 A

Operating temperature range at outer core

-20 to 140°C

Storage temperature range

-40 to 100°C

Max. vibration

Please see Variations

Technical Specifications

Variations



P50

P50-M

Max. vibration

≤ 400 m/s2 at 5 to 2,000 Hz

≤ 800 m/s2 at 5 to 2,000 Hz

Weight

223 g

265 g

Spark plug connector

-

+

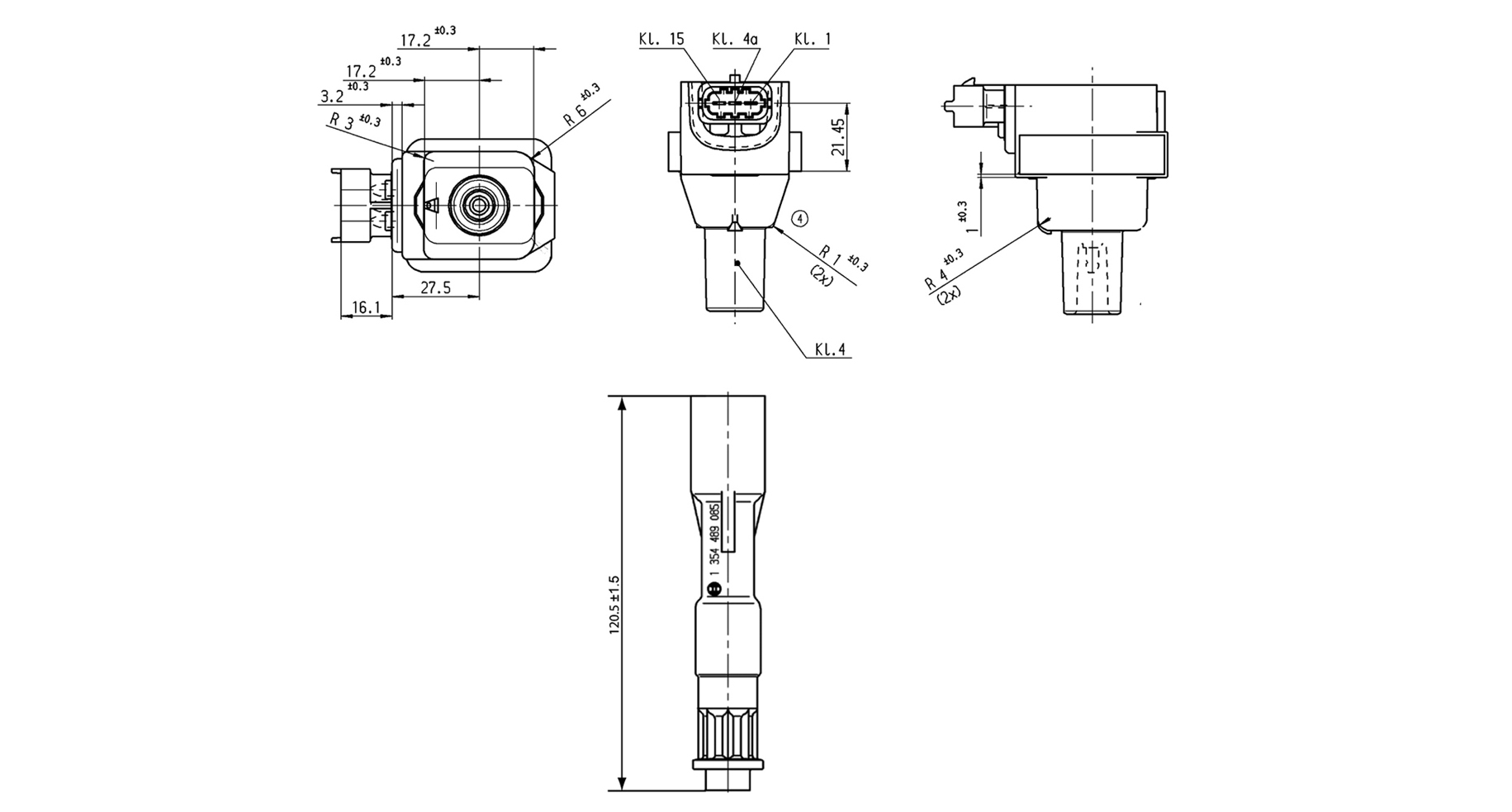

Mechanical Data

Weight

Please see Variations

Mounting

Pluggable

Electrical Data

Primary resistance with wire

370 mOhm

Secondary resistance

Incapable of measurement

High voltage rise time

≤ 3.0 kV/µs

Max. high voltage at
1 MOhm || 10 pF

≤ 35 kV

Spark current

≤ 92 mA

Spark duration at 1 kV || 1 MOhm

≤ 1.15 ms

Noise suppression

With spark plug connector

Suppression diode / EFU

Integrated

Characteristic

Measured with power stage

IGBT IRG4BC40S (Uce=600 V)

Connectors and Wires

Connector

Bosch Compact

Mating connector
3-pole Compact

D261.205.335-01

Pin 1

ECU ignition power stage

Pin 2

Engine GND

Pin 3

Ubatt

Various motorsport and automotive connectors are available on request.

For spark plugs

Ceramic diameter d=10 mm

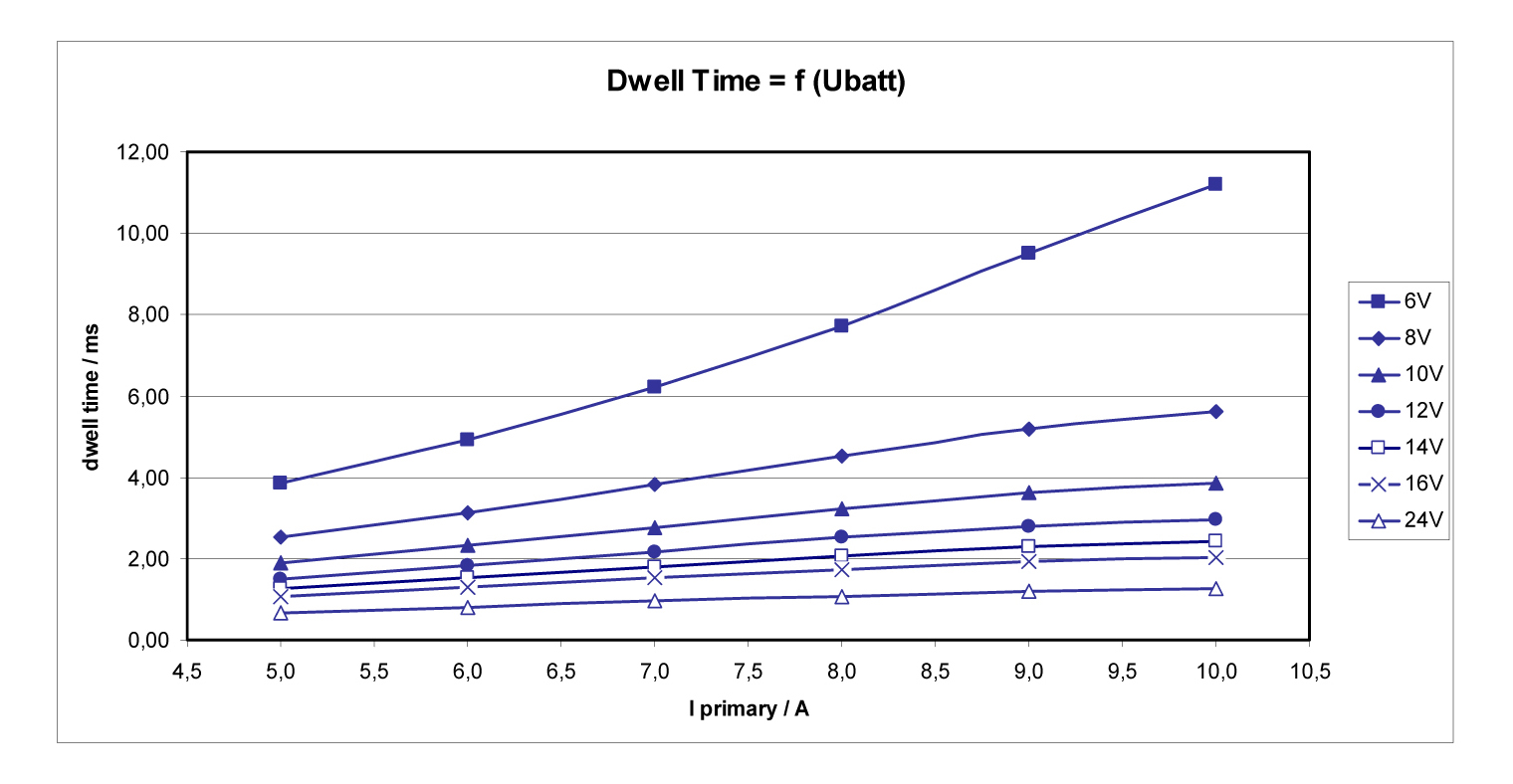

Characteristic dwell times [ms]

U batt

I primary



5.0 A

6.0 A

7.0 A

8.0 A

9.0 A

10 A

6 V

3.84

4.93

6.2

7.7

9.5

11.2

8 V

2.54

3.14

3.81

4.51

5.17

5.61

10 V

1.9

2.33

2.76

3.21

3.62

3.87

12 V

1.51

1.84

2.17

2.51

2.8

2.97

14 V

1.26

1.52

1.79

2.06

2.29

2.42

16 V

1.07

1.3

1.53

1.74

1.93

2.04

18 V

0.94

1.13

1.32

1.51

1.67

1.77

24 V

0.68

0.81

0.95

1.08

1.19

1.26

30 V

0.53

0.63

0.74

0.84

0.93

0.98

Measured values are without loom resistance. Loom resistance must be less than the primary resistance. The needed dwell time is to be verified through current measurement

Dwell time

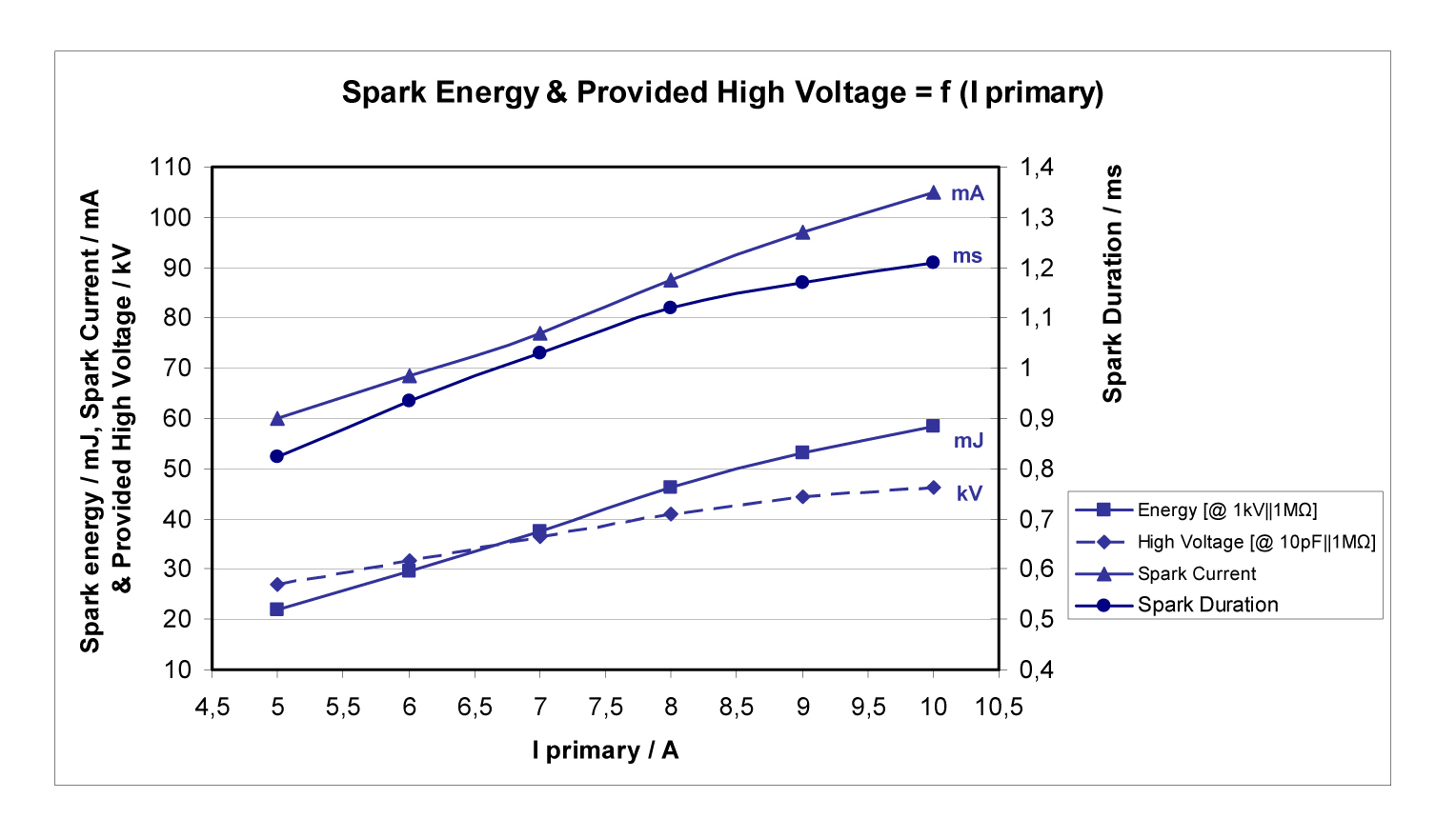

Spark energy and provided high voltage

I prim.

Spark energy

-duration

-current

Hi voltage

5 A

22 mJ

0.82 ms

60 mA

26.8 kV

6 A

29.7 mJ

0.93 ms

68.5 mA

31.6 kV

7 A

37.5 mJ

1.03 ms

77 mA

36.4 kV

8 A

46.3 mJ

1.12 ms

87.5 mA

40.9 kV

9 A

53 mJ

1.17 ms

97 mA

44.4 kV

10 A

58.4 mJ

1.21 ms

105 mA

46.3 kV

Spark energy

Installation Notes

During mounting of the spark plug please pay attention that full clamping and proper contacts are made to ensure safe connection between coil and spark plug.

The coil P50 has no integrated transistor and requires an ECU with internal ignition power stages, e.g. IGBT IRG4BC40S or BIP.

For technical reasons the values of the coils may vary.

Please regard the specified limit values.

Usage above Iprim > 8.5 A or 35 kV may reduce the lifetime.

Please find further application hints in the offer drawing at our homepage.

In case of ignition-caused malfunctions, please use screened sensor wires.



Design Note

We strongly recommend the design of the spark plug shaft has to ensure that there are no sharp edges in the shaft geometry due to design or machining. Only in compliance with this recommendation, a proper function can be ensured.

Ordering Information

Ignition Coil P50

Order number: 0221.504.001

Ignition Coil P50-M

Motorsport version

Order number: F02U.V00.869-01

Accessories

Accessory spark plug connector

Order number: 1354.489.085

Legal Restrictions

The sale of this product in Mexico is prohibited.

Due to embargo restrictions, sale of this product in Russia, Belarus, Iran, Syria, and North Korea is prohibited.
