Data Logger and Sensor Interface C 80

We offer the C 80 in two basic versions, on the one hand as a data logger and on the other hand as a sensor interface. Choose between these basic variants and combine or add functionalities now or later.

The data logger C 80 is a professional data logging system for motorsport applications. This allows for synchronized acquisition of engine data from the ECU and chassis data from up to 26 analog and 4 digital input channels. Additional input devices can be connected via Ethernet and CAN buses.

Recorded data from the up to 16 GB logger can be downloaded via high speed Ethernet.

Software upgrades for the C 80 (field upgradable by entering a key) activate tailored configurations like a second logging partition of 4 GB, USB recording, CCP/XCP-master for simple data access to third party devices, as well as additional input channels.

Downloads

Features

  • Aluminum housing
  • Powerful data logger with up to 20 GB memory
  • Supports Bosch multi-logger configuration
  • USB recording and full telemetry support

Application

Converters

10 kHz 12 bit AD converters with digital low pass filter

Configurable math channels

User configurable CAN in/out messages

Sampling rate



Online data compression



Internal logger

  • FULL_LOG_1 (4 GB memory on Recording 1) enabled, optional in C80 Sensor Interface
  • PERF_LOG_1 (16 GB memory on Partition 1) optional
  • FULL_LOG_2 (4 GB memory on Recording 2) optional
  • 1,500 channels enabled
  • 1 ms sampling rate enabled
  • DATA_USB (Data copy to USB flash drive) optional

Logging rates

  • Usage of all features: 800 kB/s
  • Primary logging use case: >1,500 kB/s
  • Logging data download rate: up to 7.5 MB/s

3-port network switch



Telemetry Support via Ethernet (recommended) and RS232

Technical Specifications

Mechanical Data

Size

105 x 34.5 x 137.5 mm

Weight

462 g

Protection Classification

IP67 to DIN 40050, Section 9, Issue 2008

Max. vibration

Vibration profile 1 (see Downloads or www.bosch-motorsport.com)

Operating temperature (internal)

0 to 85°C

Operation outside the temperature limits can be tested on request during the manufacturing tests.

Electrical Data

Supply voltage

8 to 18 V

Max. power consumption (w/o loads)

10 W at 14 V

Inputs

6 x analog channels

0 to 5 V input range

12 bit resolution

1 x 3 kOhm switchable pull up resistor

Sensor Supplies and Screens

4 x PWM outputs (low side switch 2 A each)

1 x sensor supply 5 V ± 1 % (250 mA)

Connectors and Wires

Motorsport connectors double density

2 x 41 pins

Mating connector I ASDD612-41SN

F02U.002.216-01

Mating connector II ASDD612-41SA

F02U.004.180-01

Pin Layout ASDD212-41PN

Pin

Name

Description

1

KL30



2; 3

KL15



4; 5

KL31



6

Ethernet Channel0 Tx plus

Wire Ethernet_0 - TX+

7

Ethernet Channel0 Tx minus

Wire Ethernet_0 - TX-

8

Ethernet Channel0 Rx plus

Wire Ethernet_0 - RX+

9

Ethernet Channel0 Rx minus

Wire Ethernet_0 - RX-

10

Ethernet Schirm

Ethernet Schirm

11

Ethernet Channel1 Tx plus

Wire Ethernet_0 - TX+

12

Ethernet Channel1 Tx minus

Wire Ethernet_0 - TX-

13

Ethernet Channel1 Rx plus

Wire Ethernet_0 - RX+

14

Ethernet Channel1 Rx minus

Wire Ethernet_0 - RX-

15

Ethernet Channel2 Tx plus

Wire Ethernet_0 - TX+

16

Ethernet Channel2 Tx minus

Wire Ethernet_0 - TX-

17

Ethernet Channel2 Rx plus

Wire Ethernet_0 - RX+

18

Ethernet Channel2 Rx minus

Wire Ethernet_0 - RX-

19

CAN_A_H

CAN_A - HIGH

20

CAN_A_L

CAN_A - LOW

21

CAN_B_H

CAN_B - HIGH

22

CAN_B_L

CAN_B - LOW

23

USB Power

500mA USB_Power

24

USB Data Plus

USB_OTG_Plus

25

USB Data Minus

USB_OTG_Minus

26

USB GND

USB_Ground

27

SENSPWR5_1



28

SENSGND



29

Timestamp



30

LS_GND_1

Low-Side Ground2

31

LS_SWITCH_1

lowside switch 2A

32

LS_SWITCH_2

lowside switch 2A

33

LS_SWITCH_3

lowside switch 2A

34

LS_SWITCH_4

lowside switch 2A

35

LS_GND_2

Low-Side Ground2

36

ANAIN_M1_1

0 to 5V Analog

37

ANAIN_M1_2

0 to 5V Analog

38

ANAIN_M1_3

0 to 5V Analog

39

ANAIN_M1_4

0 to 5V Analog

40

ANAIN_M1_5

0 to 5V Analog

41

ANAIN_M1_6

0 to 5V Analog

Pin Layout ASDD212-41PA

Pin

Name

Description

1

UBATT_FUSE1



2

SENSPWR10_1



3

SENSPWR5_2



4

SENSPWR5_3



5

SENSPWR5_4



6; 7

SENSGND



8

RS232A TX

Transmit Telemetry data

9

RS232A RX

Receive Telemetry data

10

RS232B TX

Transmit GPS data

11

RS232B RX

Receive GPS data

12

RS232_GND

RS232 Ground

13

REV1_P

Hall / Inductive

14

REV1_M

Hall / Inductive

15

REV2_P

Hall / Inductive

16

REV2_M

Hall / Inductive

17

REV3_P

Hall / Inductive

18

REV3_M

Hall / Inductive

19

REV4_P

Hall / Inductive

20

REV4_M

Hall / Inductive

21

ANAIN_M1_7

0 to 5V Analog

22

ANAIN_M1_8

0 to 5V Analog

23

ANAIN_M1_9

0 to 5V Analog

24

ANAIN_M1_10

0 to 5V Analog

25

ANAIN_M1_11

0 to 5V Analog

26

ANAIN_M1_12

0 to 5V Analog

27

ANAIN_M1_13

0 to 5V Analog

28

ANAIN_M1_14

0 to 5V Analog

29

ANAIN_M1_15

0 to 5V Analog

30

ANAIN_M1_16

0 to 5V Analog

31

ANAIN_M2_1

0 to 5V Analog

32

ANAIN_M2_2

0 to 5V Analog

33

ANAIN_M2_3

0 to 5V Analog

34

ANAIN_M2_4

0 to 5V Analog

35

ANAIN_M2_5

0 to 5V Analog

36

ANAIN_M2_6

0 to 5V Analog

37

ANAIN_M2_7

0 to 5V Analog

38

ANAIN_M2_8

0 to 5V Analog

39

ANAIN_M2_9

0 to 5V Analog

40

ANAIN_M2_10

0 to 5V Analog

41

LAPTRIGGER



Communication

Configuration via RaceCon over Ethernet or MSA-Box II

CAN interfaces

2

Ethernet 100BaseT

3

Telemetry

Ethernet or RS232

Lap trigger input

1

Installation Notes

Maintenance Interval: 220 h or a maximum of two years

Depending on your experience calibrating Bosch ECUs, we recommend calibration support from Bosch Motorsport.

Please remember that the mating connectors and the programming interface MSA Box II are not included and must be ordered separately.

Not reverse polarity protected on supply or outputs.

Software

The required software (.pst file) for this device is available in the download area of our homepage www.bosch-motorsport.com.

Download data and save configurations before sending device, as it will be reset during service.

Ordering Information

Data Logger C 80

FULL_LOG_1 included

Order number: F02U.V03.083-01

Sensor Interface C 80

IO_EXTENS included

Order number: F02U.V03.082-01

Rugged USB flash drive

Order number: F02U.V03.534-01

Connector for USB flash drive on car loom side

Order number: F02U.002.996-01

Adapter cable to PC USB-Port

Order number: F02U.V01.343-01

Software Options

CCP/XCP_MASTER

Order number: F02U.V02.213-01

FULL_LOG_1

Order number: F02U.V02.304-01

PERF_LOG_1

Order number: F02U.V03.054-01

FULL_LOG_2

Order number: F02U.V02.305-01

IO_EXTENS

Order number: F02U.V02.205-01

ADV_TELEM

Order number: tbd.

DATA_USB

Order number: F02U.V03.476-01

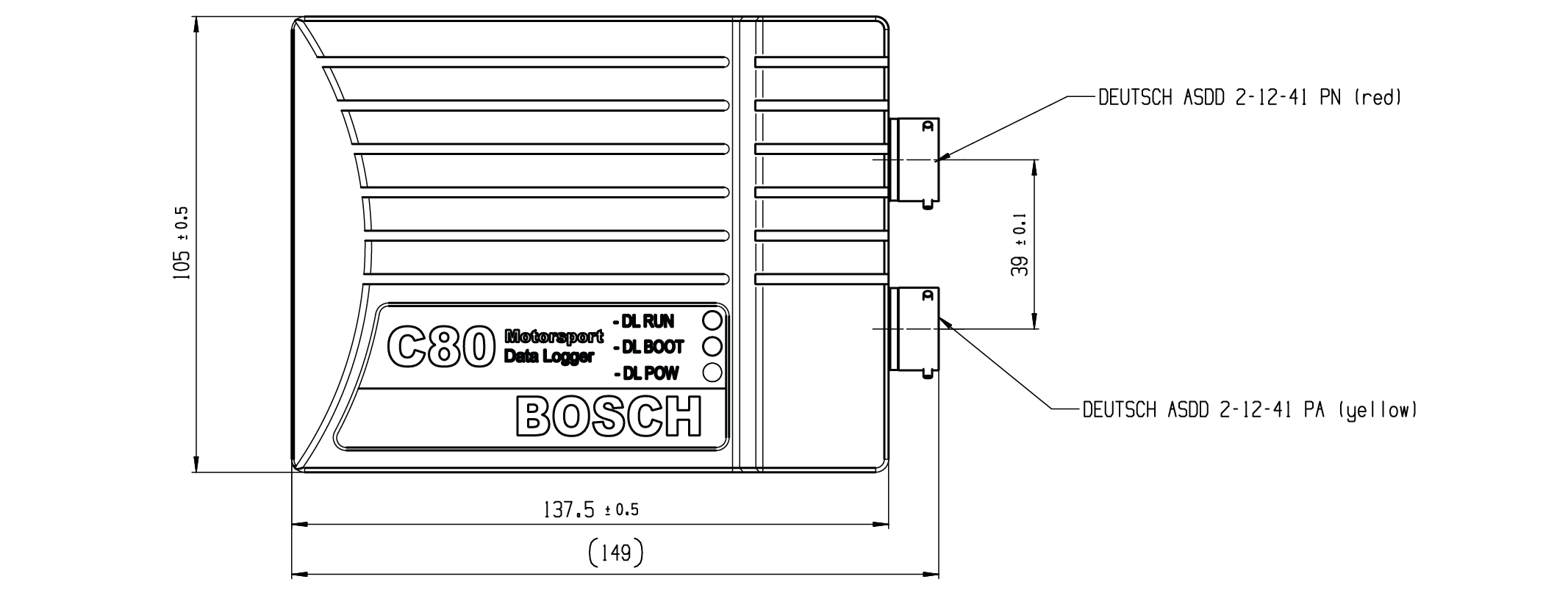

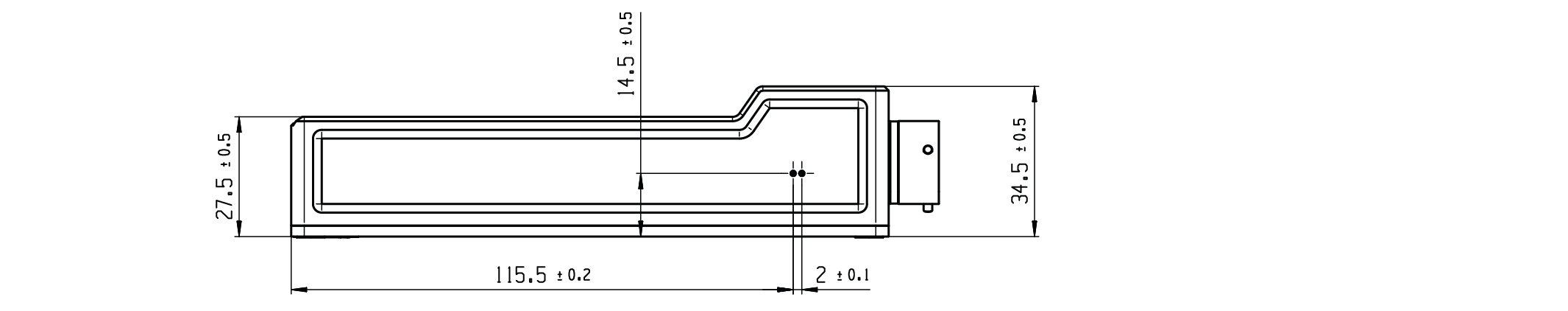

Dimensions

.

Upgrades

CCP/XCP_MASTER

Enables CCP/XCP master functionality to request data from foreign devices via CAN/CCP protocol, XCP over Ethernet (UDP) or XCP via CAN.
(ASAP2 file from ECU manufacturer required)

FULL_LOG_1 (enabled in C 80 logger)

4 GB memory on Recording 2, 600 kB/s (600 MHz)

PERF_LOG_1 (requires FULL_LOG_1)

16 GB memory on Partition 1, 800 kB/s (866 MHz)

FULL_LOG_2

4 GB memory on Recording 2

IO_EXTENS (included in C 80 Sensor Interface)

20 additional analog channels

4 rotational channels, input Hall
(Input inductive on request, hardware change required)

3 additional sensor supply 5 V (250 mA each)

1 sensor supply 10 V (250 mA)

1 sensor supply 12 V (1 A), non-regulated

RS232

GPS

DATA_USB

Data copy to USB flash drive

Legal Restrictions

The sale of this product in Mexico is prohibited.

Due to embargo restrictions, sale of this product in Russia, Belarus, Iran, Syria, and North Korea is prohibited.
