Features
- Communication interface for PC-supported calibration on Ethernet interface
- 100 Mbit Version and 1 Gbit Version available
Technical Specifications
Connectors and Wires 100 Mbit Version
Connector RJ45 | Connector AS612-35PN | ||
|---|---|---|---|
Pin 1 | Tx+ | Pin 8 | White / orange |
Pin 2 | Tx- | Pin 9 | Orange |
Pin 3 | Rx+ | Pin 11 | White / green |
Pin 6 | Rx- | Pin 12 | Green |
|
| Pin 22 | Screen |
|
| Pin 1 | nc |
|
| Pin 15 | nc |
Connectors and Wires 1 Gbit Version
Connector RJ45 | Connector AS612-35PN | ||
|---|---|---|---|
Pin 1 | Tx+ | Pin 11 | White / green |
Pin 2 | Tx- | Pin 12 | Green |
Pin 3 | Rx+ | Pin 8 | White / orange |
Pin 6 | Rx- | Pin 9 | Orange |
Pin 4 | D3+ | Pin 19 | Blue |
Pin 5 | D3- | Pin 20 | White / blue |
Pin 7 | D4+ | Pin 17 | White / brown |
Pin 8 | D4- | Pin 18 | Brown |
Wire length L | 1.500 mm |
Ordering Information

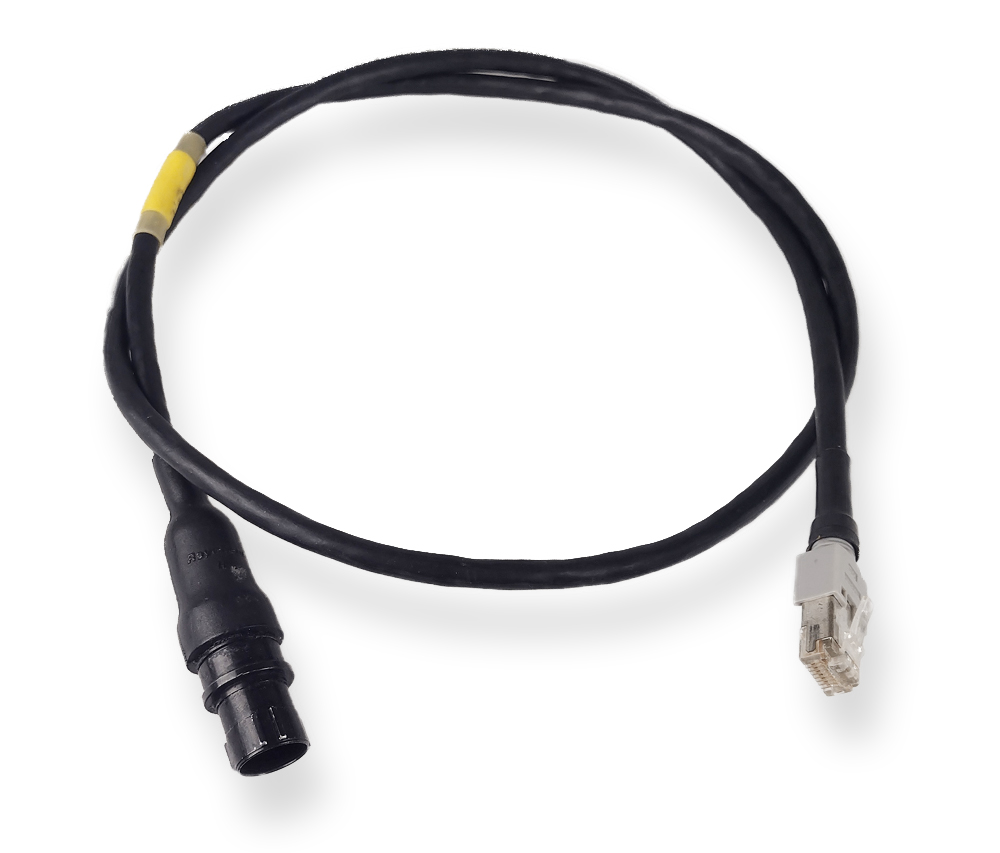

Ethernet Data Read Cable
100 Mbit Version
Order number: F02U.V01.286-01
Ethernet Data Read Cable
1 Gbit Version
Order number: F02U.V02.327-01

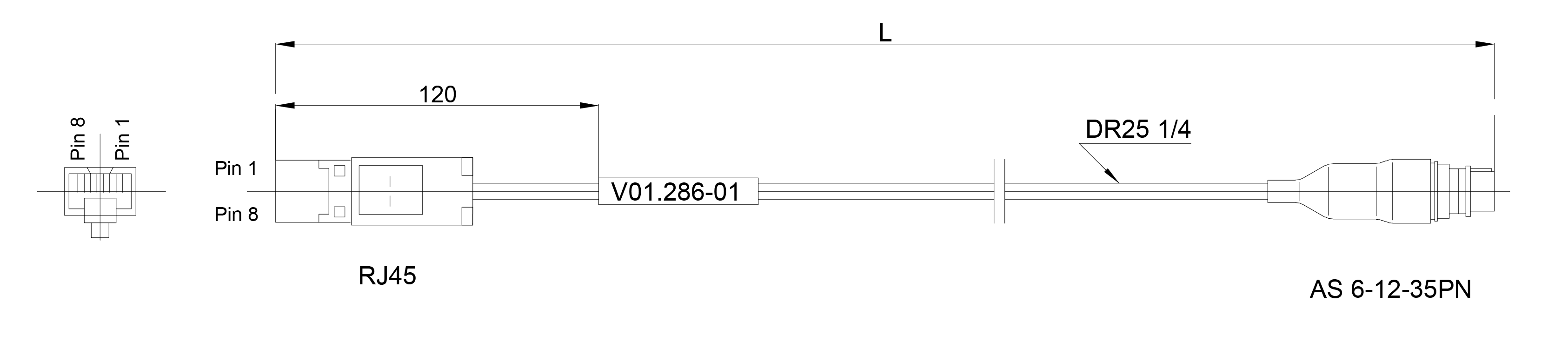

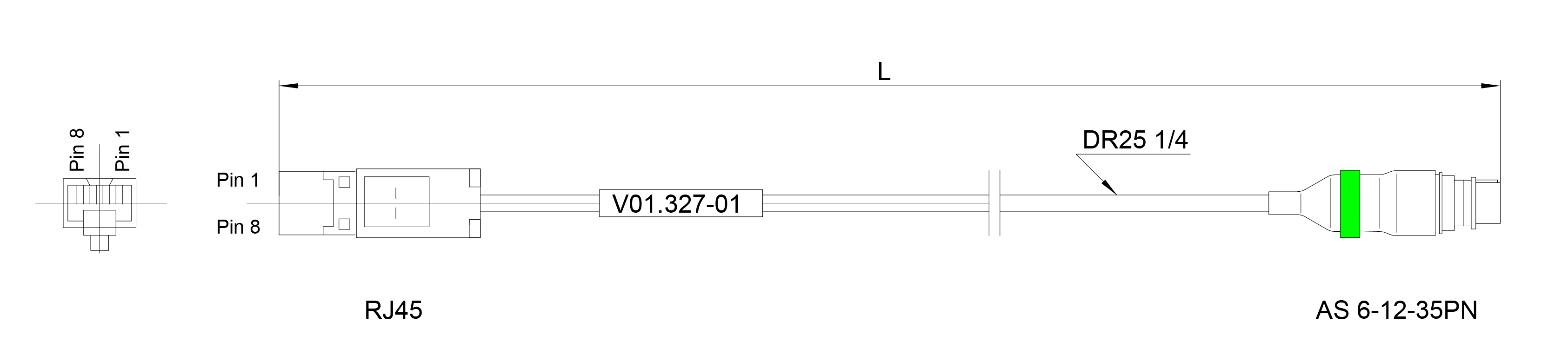

Dimensions
