The high-pressure fuel injector HDEV 6 is a component of a gasoline-direct fuel-injection system of an otto cycle engine. The HDEV 6 is arranged between the fuel rail and the combustion chamber in the cylinder head.
The function of the HDEV 6 is to meter the high-pressurized fuel and achieve a targeted atomized air and fuel mixture in a defined location in the combustion chamber.
It is an inward opening solenoid injector which is optimized regarding high mass flow, fast opening and closing, leading to a very stable linearity.
The benefit of this injector is a high spray variability concerning hole numbers, spray shape, and spray angles. Also, the flow rate can be defined in a wide range.

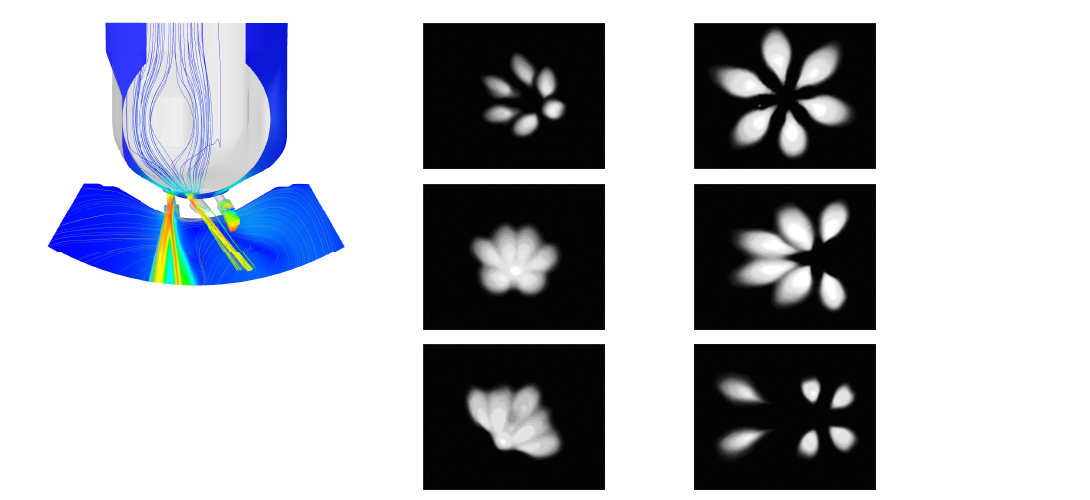

Bosch offers the spray targeting design according to the individual customer requirements and can support with additional services, e.g. CFD Simulation, State of the art Spray measurements, and further services.
If your application conditions will not match the listed performance data, please ask for consultancy at Bosch Motorsport. Bosch offers cost effective production HDEV 6 on request.
- Downloads
- Features
- Application
- Technical Specifications
- Installation Notes
- Ordering Information
- Dimensions
- Legal Restrictions
Downloads
Features
- Flow rate at 100 bar: up to 1,640 g/min (n-heptane)
- Max. 350 bar (higher on request)
- Up to 20 holes
- Spray angle 8 to 20°
Application
Application at 100 bar (typical) | 308 to 1,640 g/min |
Fuel input | Top-feed injector |
Fuel | Gasoline |
Operating pressure | Up to 350 bar (higher on request) |
Operating temperature range | -40 to 130°C |
Injector tip temperature range | -40 to 250°C |
Fuel temperature range | -40 to 110°C (active) |
Max. vibration | 600 m/s² |
Technical Specifications
Mechanical Data
Weight w/o wire | 58 g (short) |
Diameter body | 20.7 mm |
Diameter nozzle | 6 mm |
Length | 87 mm (short) |
Flow rate at 100 bar (n-heptane) | up to 1,640 g/min |
Number of holes | 1 to 20 holes |
Spray type | Single or Multi hole |
Spray angle overall | 110° (typical) |
Spray angle single beam | 8 to 20° |
Static flow tolerance | ±4 % (lower on request) |
Dynamic flow tolerance | ±6 % at ti = 1.5 ms |
Leakage (hydraulic) | ≤1.95 mm³/min at 23°C |
Electrical Data
All listed electrical values are approximate and depend on the injector design. | |
Booster supply | 65 V |
Booster current | 12 to 13 A |
Power supply | 12 V |
Pick up current | 5.3 A |
Pick up time | 600 μs |
Hold power supply | 12 V |
Hold current | 2.6 to 3.6 A |
Coil resistance | 1,830 mOhm (ambient temp.) |
Connectors and Wires
Mating connector Compact | On request |
Connector Jetronic (wire) | D261.205.288-01 |
Connector motorsport (wire) | On request |
Pin 1 | Pos |
Pin 2 | Gnd |
Installation Notes
The injector must be supplied by a Bosch Motorsport ECU or Power Stage Unit (e.g. HPI 5 or HPI 1.16). |
The injector can be cleaned (mechanically or chemically), if the tip will not be damaged. Do not use supersonic cleaning. |
Ordering Information
HP Injection Valve HDEV 6
Order number: On request

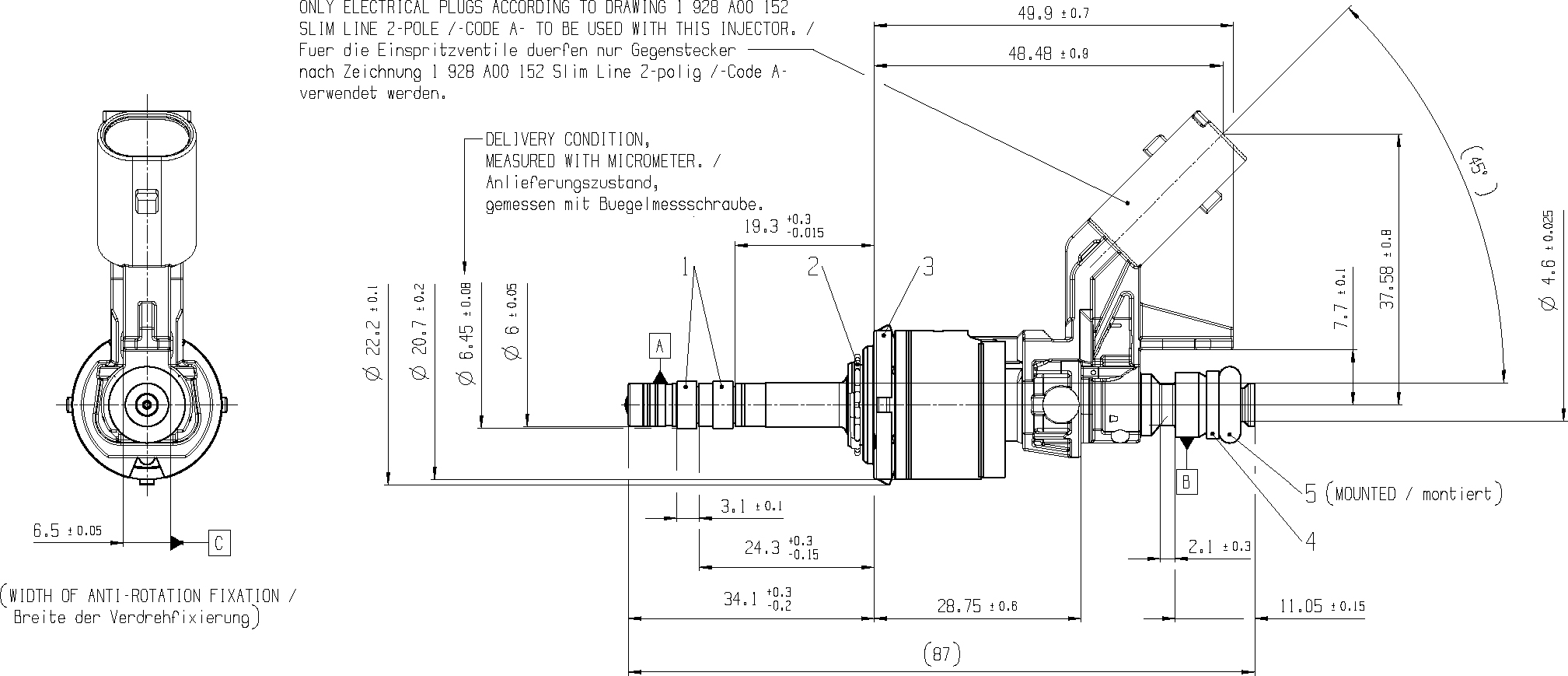

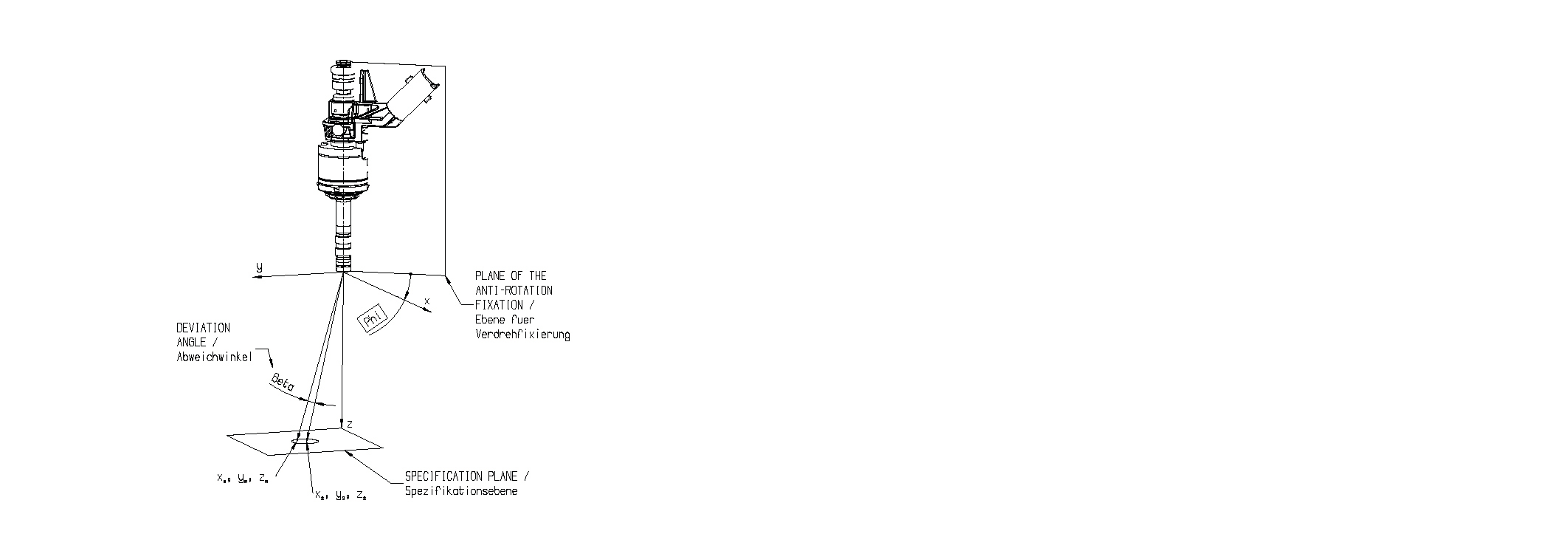

Dimensions
