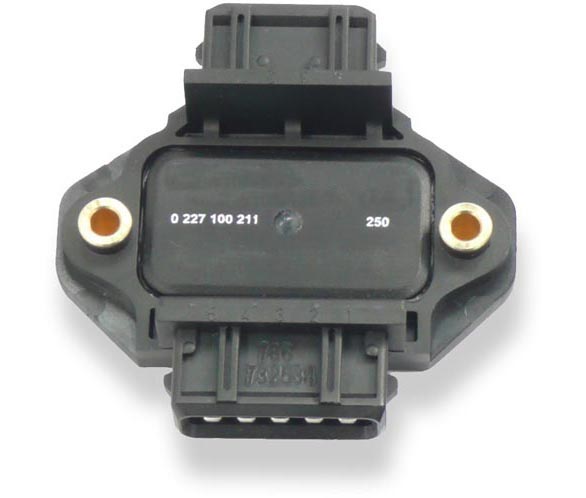

Ignition Module IM 4

Ignition Module IM 4

This module is an external ignition power stage capable of supplying up to four non-transistorized ignition coils.

The IM input signal should be supplied by an ECU with ignition signal outputs in the range of 10 to 20 mA, e.g. MS 6.

The IM unit combines the robustness of a high quality production part with good electrical performance to provide an ideal solution for adapting non-transistorized coils to an ECU without internal ignition driver stages.

Product Highlights

Features

  • Max. 4 cylinders
  • 54 g
  • Fits to all ECUs without internal ignition power stage like MS 6
  • Especially adapted for Coils P50(-M) and P65

Downloads

Literature

Product Details

Primary current
≤ 8.5 A
Primary current
Clamp voltage
≤ 8.5 A
380 ± 30 V
Primary current
Operating temperature range at measuring point
≤ 8.5 A
-40 to 120°C
Primary current
Storage temperature range
≤ 8.5 A
-40 to 130°C
Primary current
Max. rpm (ensure chilled mounting position)
≤ 8.5 A
8,000
Primary current
Max. vibration
≤ 8.5 A
400 m/s2at 5 to 2,500 Hz
Mechanical Data
Mechanical Data
Size
70.5 x 68 x 20 mm
Mechanical Data
Weight w/o wire
54 g
Mechanical Data
Mounting
2 x M4 screws with spring washer
Electrical Data
Electrical Data
UBatttypical
13.5 V
Electrical Data
Voltage supply
6 to 16.5 V
Electrical Data
IBhigh active on
min. 10 mA
Electrical Data
IBlow off
0 mA
Electrical Data
IB
10 to 22 mA
Electrical Data
ICtypical
< 8.5 A
Electrical Data
ICmax. at TU< 120°C
< 10 A
Electrical Data
UCEsatt at IC= 5 A
< 3 V
Electrical Data
UCEsatt at ICmax
< 9 V
Connectors and Wires
Connectors and Wires
Connector (Coil T1)
Bosch Jetronic 4-pole
Connectors and Wires
Mating connector
Jetronic 4-pole
D261.205.351-01
Connectors and Wires
Pin 1
Collector transistor 4
Connectors and Wires
Pin 2
Collector transistor 3
Connectors and Wires
Pin 3
Collector transistor 2
Connectors and Wires
Pin 4
Collector transistor 1
Connectors and Wires
Connector (ECU)
Bosch Jetronic 5-pole
Connectors and Wires
Mating connector
Jetronic 5-pole
D261.205.352-01
Connectors and Wires
Pin 1
Basis transistor 1
Connectors and Wires
Pin 2
Basis transistor 2
Connectors and Wires
Pin 3
Gnd
Connectors and Wires
Pin 4
Basis transistor 3
Connectors and Wires
Pin 5
Basis transistor 4
.

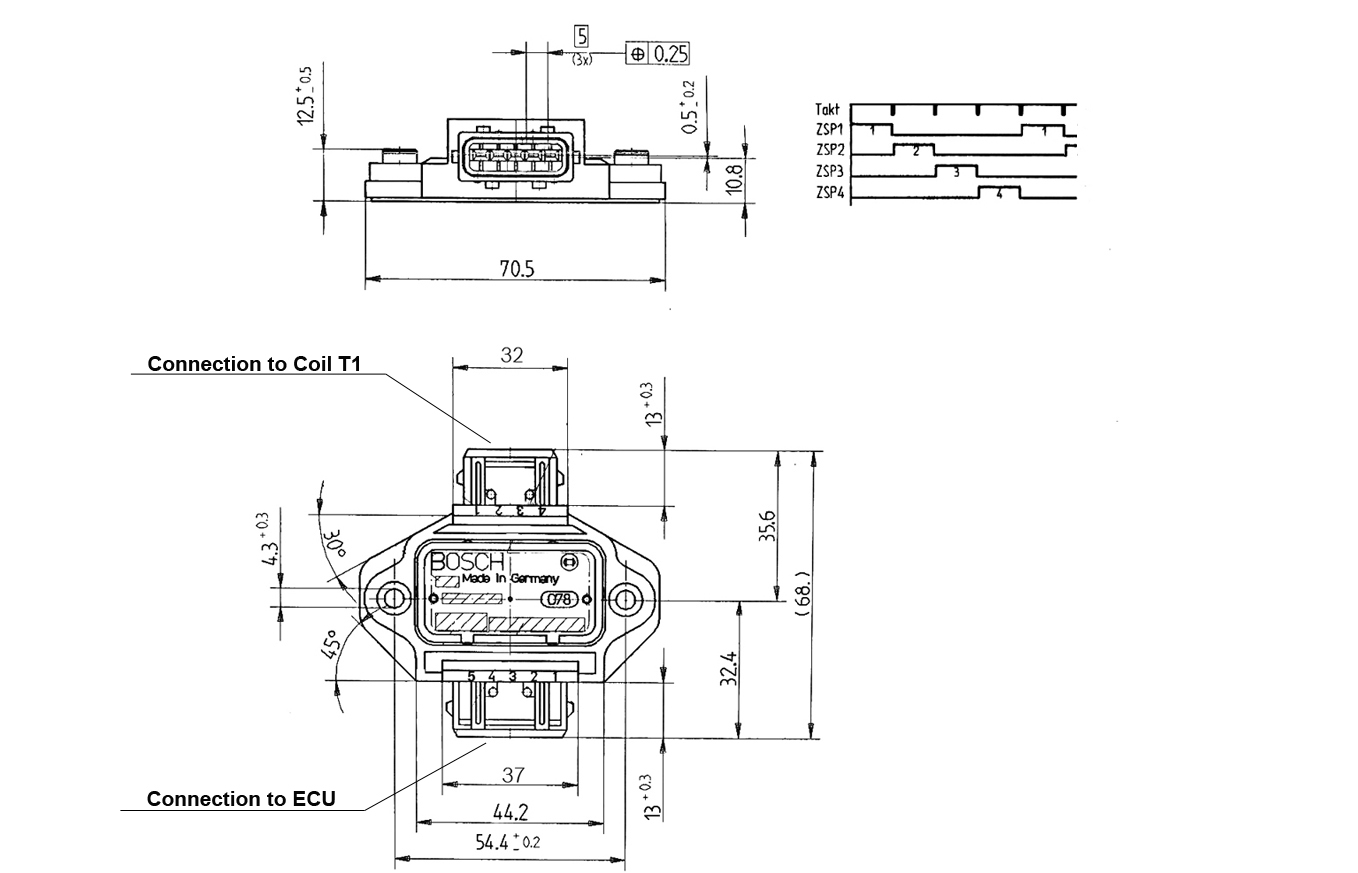

See Offer Drawing for further information

Further Information

This ignition module can be used with Coils P50(-M) and P65 or comparable coils.
This ignition module can be used with Coils P50(-M) and P65 or comparable coils.
Please ensure that the connectors are safe from water.
This ignition module can be used with Coils P50(-M) and P65 or comparable coils.
The IM has to be mounted onto a cooling body. The mounting surface needs a planarity of 0.2 mm.
This ignition module can be used with Coils P50(-M) and P65 or comparable coils.
A heat conductive paste has to be used.
This ignition module can be used with Coils P50(-M) and P65 or comparable coils.

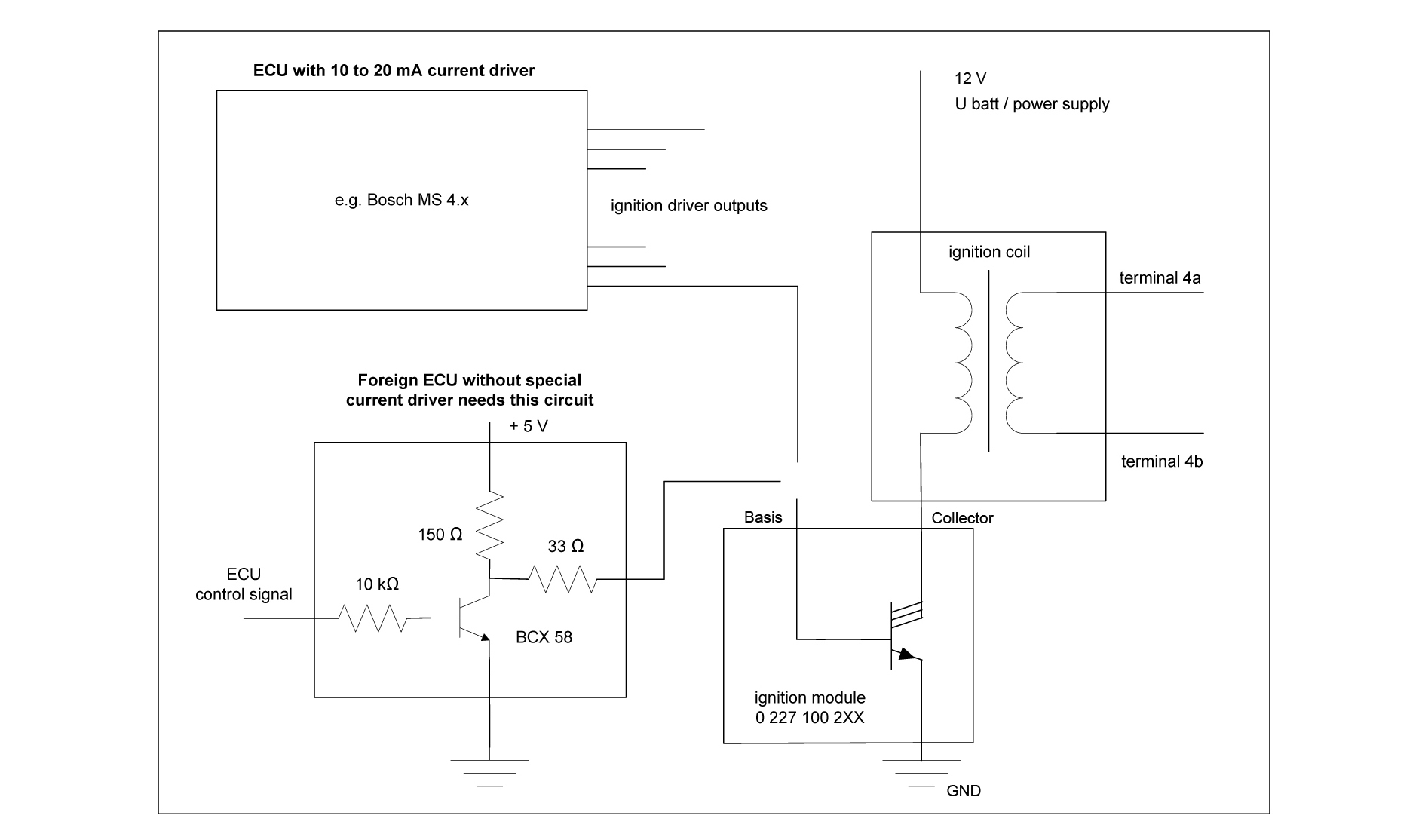

This ignition module is designed for use with engine control units which have no integrated ignition transistor.
This ignition module can be used with Coils P50(-M) and P65 or comparable coils.
Please observe the specified limit values.

Ignition Module IM 4
Order number: 0227.100.211
