Acceleration Sensor MM5.10-R

The MM5.10-R was designed to measure the physical effects of rotational and linear acceleration. In order to achieve this, the sensor includes MEMS measuring elements connected to an appropriate integrated circuit.

A rotational acceleration around the integrated sensing elements generates a Coriolis force which changes the internal capacity of the micro machined sensing parts. Furthermore, a pure surface micro machined element is used to measure the vehicle lineal acceleration in all 3 axes. This combination of rotational and linear acceleration sensors enables a precise measurement of the vehicle dynamics.

The main features and benefits of this sensor are the aluminum compact housing, the combination of 3 linear and 2 rotational accelerometers and its high speed 1 Mbaud CAN-signal output.

Downloads

Features

  • Application 1: ±163°/s (roll rate/ yaw rate)
  • Application 2: ±4.2 g (X, Y and Z acceleration)
  • Weight w/o wire: 28 g
  • Size: 34 x 34 x 16.5 mm
  • Power supply: 7 to 18 V

Application

Application I

±163°/s (roll rate/yaw rate)

Application II

±4.2 g (X, Y and Z acceleration)

Operating temperature range

-20 to 85°C

Technical Specifications

Mechanical Data

Weight w/o wire

28 g

Size

34 x 34 x 16.5 mm

Electrical Data

Power supply

7 to 18 V

Max input current

90 mA

CAN speed

1 Mbaud or 500 kbaud

CAN Message

CAN ID 01 0x174



Byte

Value

0

Yaw rate

1

2

Reserved

3

4

Acc Y-axis

5

6

Reserved

7

Unused

CAN ID 02 0x178



Byte

Value

0

Roll rate

1

2

Reserved

3

4

Acc X-axis

5

6

Reserved

7

Unused

CAN ID 03 0x17C



Byte

Value

0

Reserved

1

2

Reserved

3

4

Acc Z-axis

5

6

Reserved

7

Unused

Characteristic

Characteristic Application I

Measuring range

± 160°/s

Over range limit

± 1,000°/s

Absolute physical resolution

0.1°/s

Cut-off frequency (-3 dB)

15 Hz; 30 Hz; 60 Hz

Characteristic Application II

Measuring range

±4.2 g

Over range limit

±10 g

Absolute physical resolution

0.01 g

Cut-off frequency (-3 dB)

15 Hz; 30 Hz; 60 Hz

Connectors and Wires

Connector

ASX002-05PA-HE

Mating connector

ASX602-05SA-HE

Pin 1

UBat

Pin 2

CANH

Pin 3

Not connected

Pin 4

CANL

Pin 5

Gnd

Sleeve

DR-25

CAN Parameters

Byte order

LSB (Intel)

CAN speed

1 Mbaud or 500 kbaud

Bit mask

unsigned

Offset (all signals)

0x8000 hex

Quantization Yaw Rate

0.005 [°/s/digit]

Quantization Roll Rate

0.005 [°/s/digit]

Quantization Acc X-axis

0.0001274 [g/digit]

Quantization Acc Y-axis

0.0001274 [g/digit]

Quantization Acc Z-axis

0.0001274 [g/digit]

Installation Notes

Mounting position: Connector opposite to driving direction.

The MM5.10-R can be connected directly to most control units and data logging systems.

Please avoid abrupt temperature changes.

For mounting please use only the integrated fixing holes.

Please ensure that the environmental conditions do not exceed the sensor specifications.

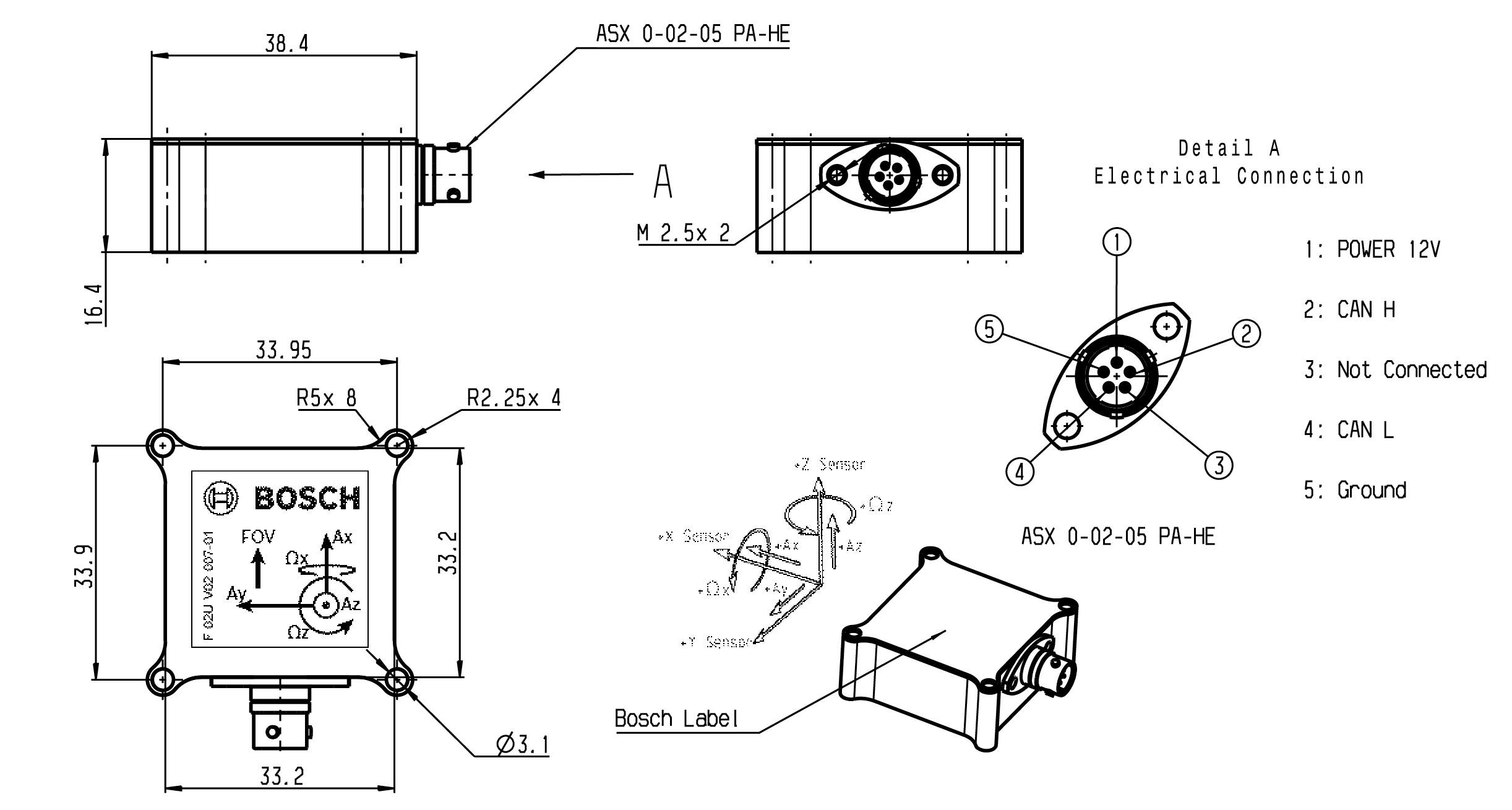

Please find further application hints in the offer drawing at our homepage and calibration sheet.

Please deliver the calibration sheet with your order placement.

Please note:

CAN ID0 0x0170 (Rx) is used for synchronization and configuration of the sensor (SYNC). Make sure that the CAN ID 0x170 is not used in your can network by any other device.

Safety Note

The sensor is not intended to be used for safety related applications without appropriate measures for signal validation in the application system.

Ordering Information

Acceleration Sensor MM5.10-R

Order number: F02U.V02.007-01

Legal Restrictions

The sale of this product in Mexico is prohibited.

Due to embargo restrictions, sale of this product in Russia, Belarus, Iran, Syria, and North Korea is prohibited.
